INSTALLATION / CONNECTION
Warning
• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car
chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation.
Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the
car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal
parts of this unit during and shortly after use of the unit. Metal parts such
as the heat sink and enclosure become hot.
• Do not connect the
wires of speakers to the car chassis or Ground wire
(black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50W. If the
maximum power of the speakers is lower than 50W, change the
[AMP GAIN] setting to avoid damaging the speakers. (  10)
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal,
connect Ignition wire (red) to the terminal on the vehicle’s fuse box
which provides 12 V DC power supply and is turned on and off by the
ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers,
wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis,
then replace the old fuse with one that has the same rating.
Basic procedure
1
Remove the key from the ignition switch, then
disconnect the
terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
(  17)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Reset the unit. (  3)
Part list for installation
(B) Wiring harness (C) Flat head screw
(
M5 × 8mm )
(D) Round head screw
(
M5 × 8mm )
(A) Trim plate

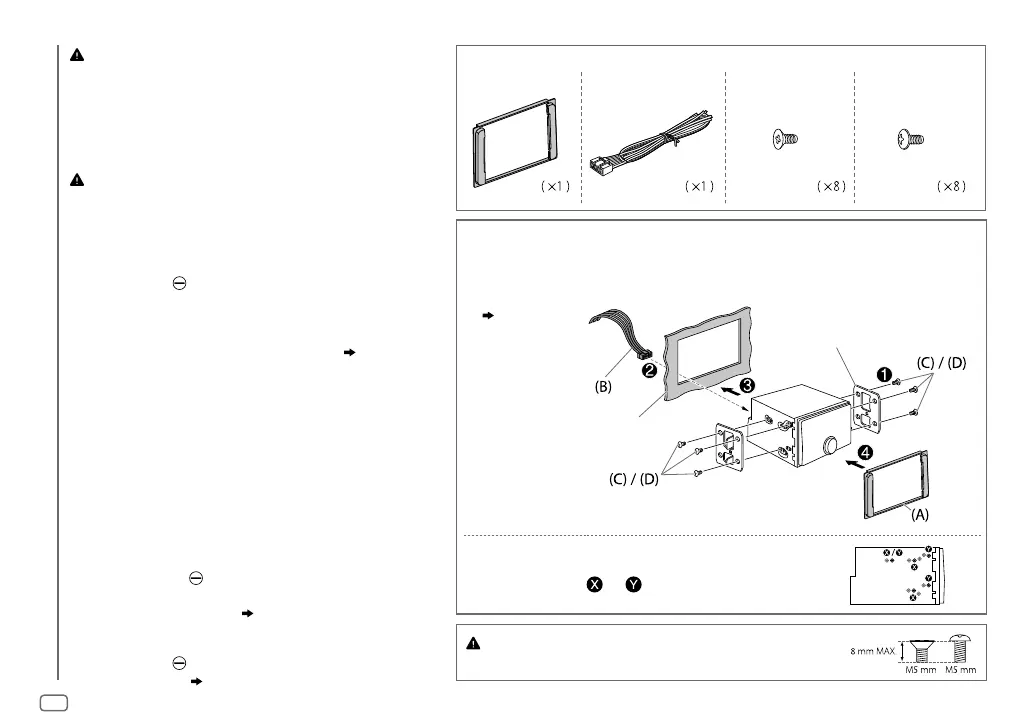

Installing the unit (in-dash mounting)
Install onto the car brackets using the supplied screws (C) or (D) . The screw holes differ depending on the
model of the cars. Then, install the supplied trim plate
(A) .
Do the required wiring.
(
 17 )
Dashboard of your car
Car bracket
Use only the specified screws. Using wrong screws might damage
the unit.
Installing in Toyota cars
Install onto the car brackets using the supplied screws (C) or (D) .
Use the mounting holes (
) or ( ) that fit the car brackets.
JS_JVC_KW_R520_M_H_EN_3.indd 16JS_JVC_KW_R520_M_H_EN_3.indd 16 29/10/2015 2:46:11 PM29/10/2015 2:46:11 PM

JVC KW-R520 Specifications

General

MP3 playback	Yes
Audio formats supported	FLAC, MP3, WAV, WMA
Display type	LCD
Illumination color	Multi
Display number of lines	1 lines
DIN size	2 DIN
Output power	200 W
Product color	Black
Ready for iPod	No
Frequency range	20 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW
Audio output channels	- channels
Equalizer bands quantity	12
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Mobile operating systems supported	Android
USB version	2.0
USB port position	Front
USB connector type	USB Type-A
USB ports quantity	1
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, SW
Preset stations quantity	36
Package weight	1700 g
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	112 mm
Width	178 mm
Height	158 mm
Weight	1600 g
