JVC KW-R910BT User Manual

25
ENGLISH |
STEERING
WHEEL
REMOTE
Purple/black
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not have
“12V ignition switch” wire.
Separate red wire

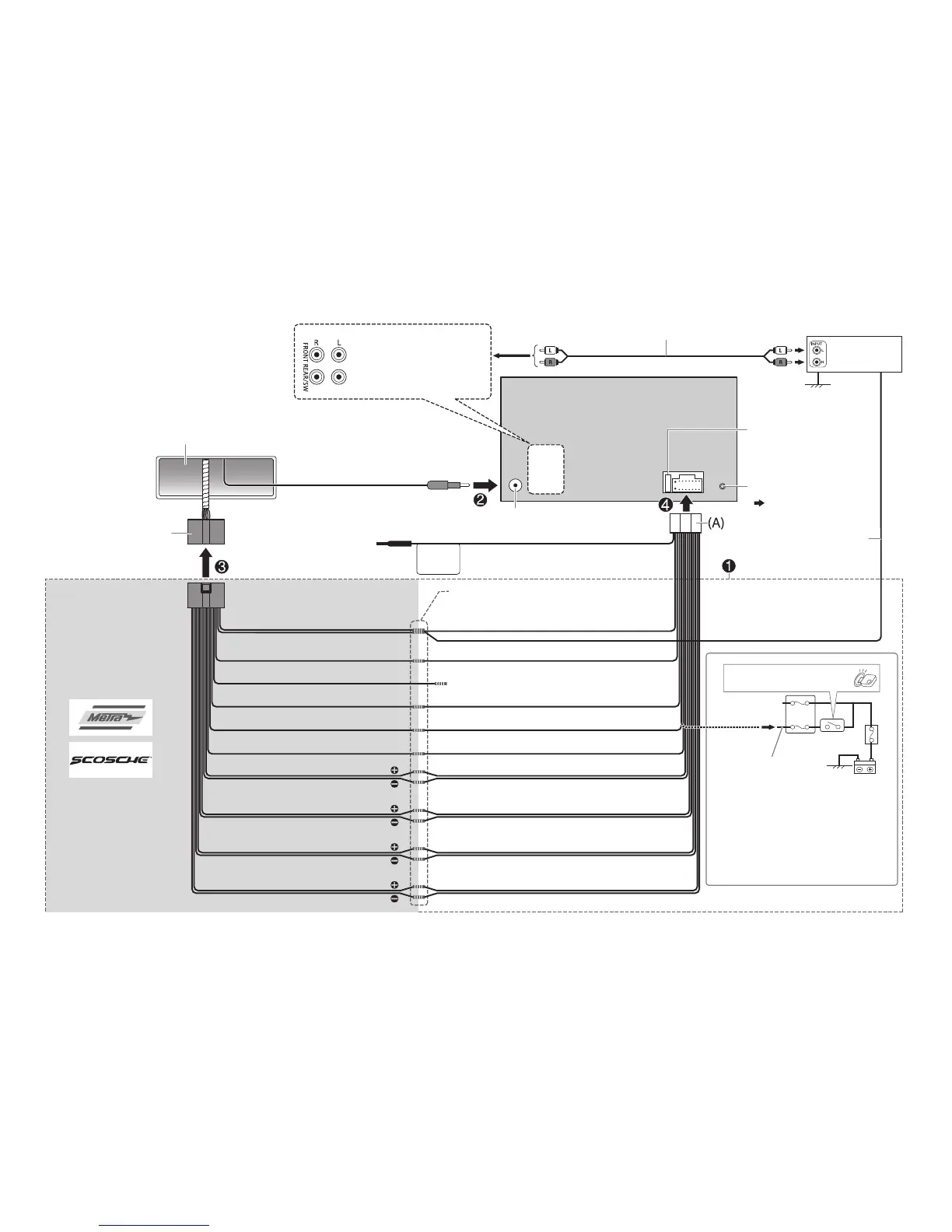

Wiring connection
Signal cord (not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Microphone input jack
(  11)
Antenna terminal
Front output
Rear/subwoofer output
JVC Amplifier
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
Green/black
Purple: Rear speaker (right)
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
(Not used) Insulate to prevent short circuit
Blue/white: Remote (200mA max.)
JS_JVC_KW_R910BT_J_02_EN.indd 25 13/12/2013 4:43:18 PM

JVC KW-R910BT Specifications

General

Bluetooth	Yes
USB Port	Yes
CD Player	Yes
AM/FM Tuner	Yes
RMS Power Output	22 watts x 4 channels
Peak Power Output	50 watts x 4 channels
Built-in Amplifier	Yes
Detachable Faceplate	Yes
DIN Size	Double DIN
Display Type	LCD
AUX Input	Yes
Android Compatibility	Yes
iPod/iPhone Compatibility	Yes
Subwoofer Control	Yes
Remote Control	Yes
Preamp Outputs	3 Pairs
Equalizer	13-band
Playback	MP3/WMA/AAC
Steering Wheel Control	Yes (with adapter)
