(No.49784)1-9
3.2 CD mechanism assembly
3.2.1 Removing the CD mechanism control board
(See Fig.1 and 2)
(1) Unsolder the part a and b on the CD mechanism control
board.
(2) Remove the stator fixing the CD mechanism control board
and the damper bracket (To remove the stator smoothly,
pick up the center part).
(3) Remove the screw A attaching the CD mechanism control
board.
(4) Remove the CD mechanism control board in the direction
of the arrow while releasing it from the two damper bracket
slots d and the front bracket slot e.
(5) Disconnect the flexible wire from connector on the pickup
unit.
ATTENTION:
Turn the FD gear in the direction of the arrow to move the en-
tire pickup unit to the appropriate position where the flexible
wire of the CD mechanism unit can be disconnected easily.
(Refer to Fig.2)

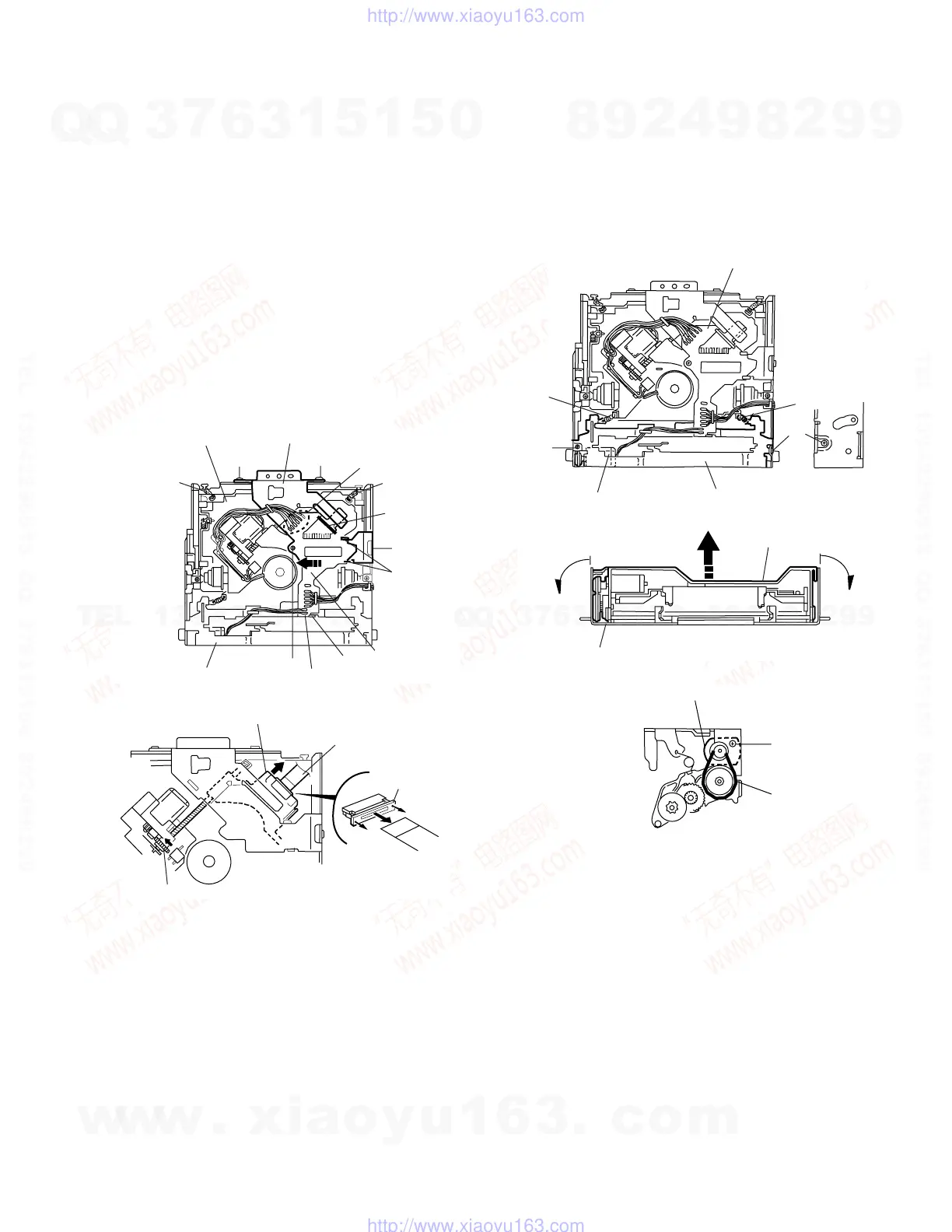

Fig.1
Fig.2
3.2.2 Removing the loading motor
(See Fig.3 to 5)
• Prior to performing the following procedure, remove the CD
mechanism control board.
(1) Remove the two springs f attaching the CD mechanism as-
sembly and the front bracket.
(2) Remove the two screws B and the front bracket while pull-
ing the flame outward.
(3) Remove the belt and the screw C from the loading motor.
Fig.3
Fig.4
Fig.5
Front bracket
CD mechanism
control board
Damper bracket
h
c
d
b
a
D
D
D
CD mechanism assembly
A
e
h
Shift the lock
Flexible wire
Pickup unit
FD gear
CD mechanism control board
Loading motor
Front bracket
f
B
Front bracket
Pull outward
Pull outward
Flame
C
Loading motor
Belt
