JVC LT-24DE74 User Manual

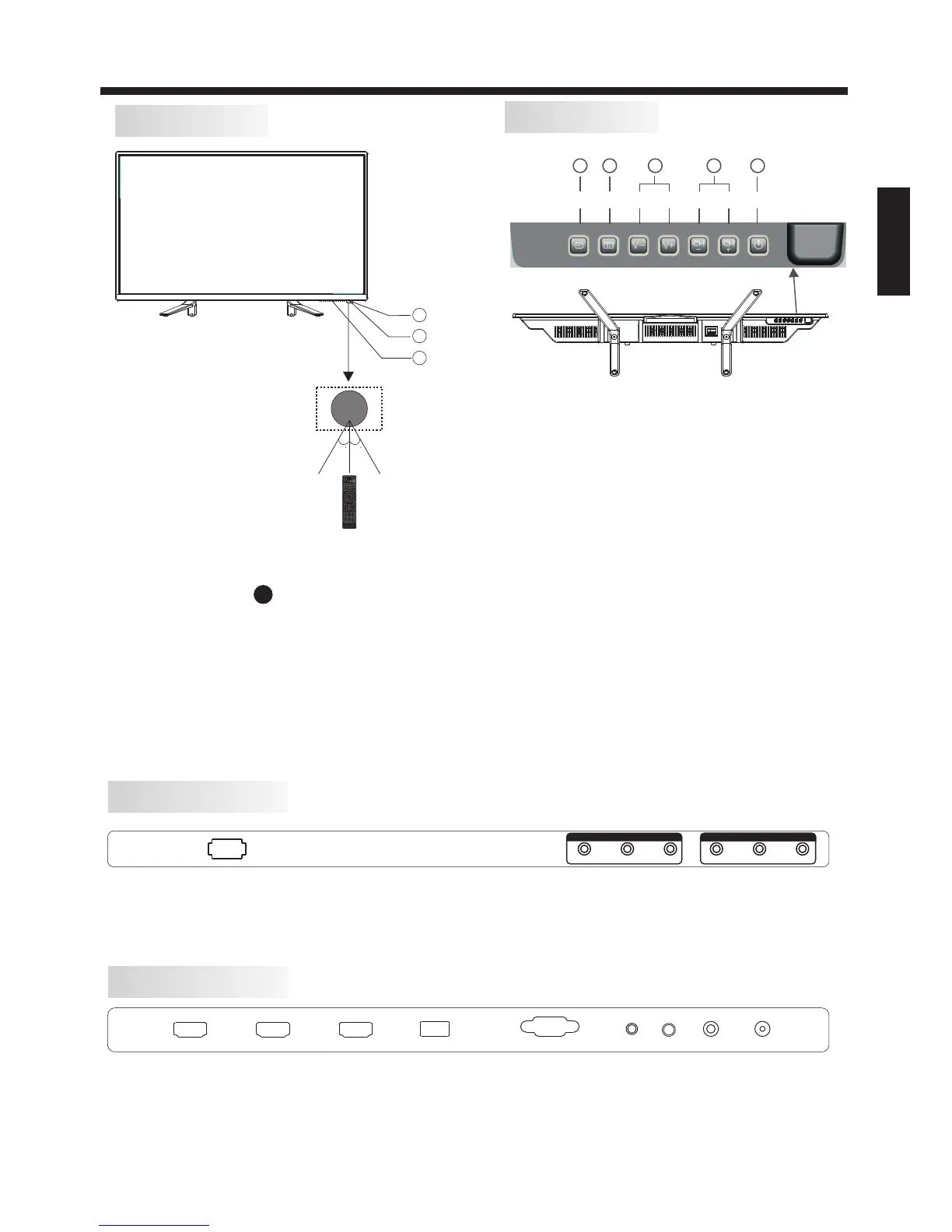

INSTALLATION
Panel keys
-6-
Front panel
1. Remote control sensor.
2. Indicator LED:
RED STAND BY.
3. Key board.
REAR Connections
SIDE Connections
1．SOURCE：
Display the input source menu.In
MENU mode,press“SOURCE”to
confirm the selected item.
2．MENU：
Display main MENU.
3．V+/V-
Adjust sound level.
In MENU mode, press“V+”or“
V-”to adjust the item that you selected.
4. CH+/CH-
In TV mode，press“CH+”or“CH-”
to change the channel up and down.
In MENU mode, press “CH+”or
“CH-”to select items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to
STANDBY.
30 30
VOL CH
YPbPr
CC MTS VGA
DTV
STRENGTH
TV AV HDMI
EPG
CH LIST
FAV
TV
DISPLAY
S.M
P.M
ENGLISH
SOURCE MENU V- V+ CH- CH+ Standby
1 2 3 4 5
All the terminals are (from left to right):
HDMI1, HDMI2, HDMI3, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
R F
COAXIALPC AUDIOVGAUSB
HDMI3
HDMI1 HDMI2
HEADPHONE
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT.
Note: AV and component (YPbPr) share the R and L audio inputs.
(COMPONENT)
AC-INPUT
100-240V~50/60Hz
VIDEO
L R
COMPOSITE
Y
Pb
Pr
COMPONENT
3
1
2
