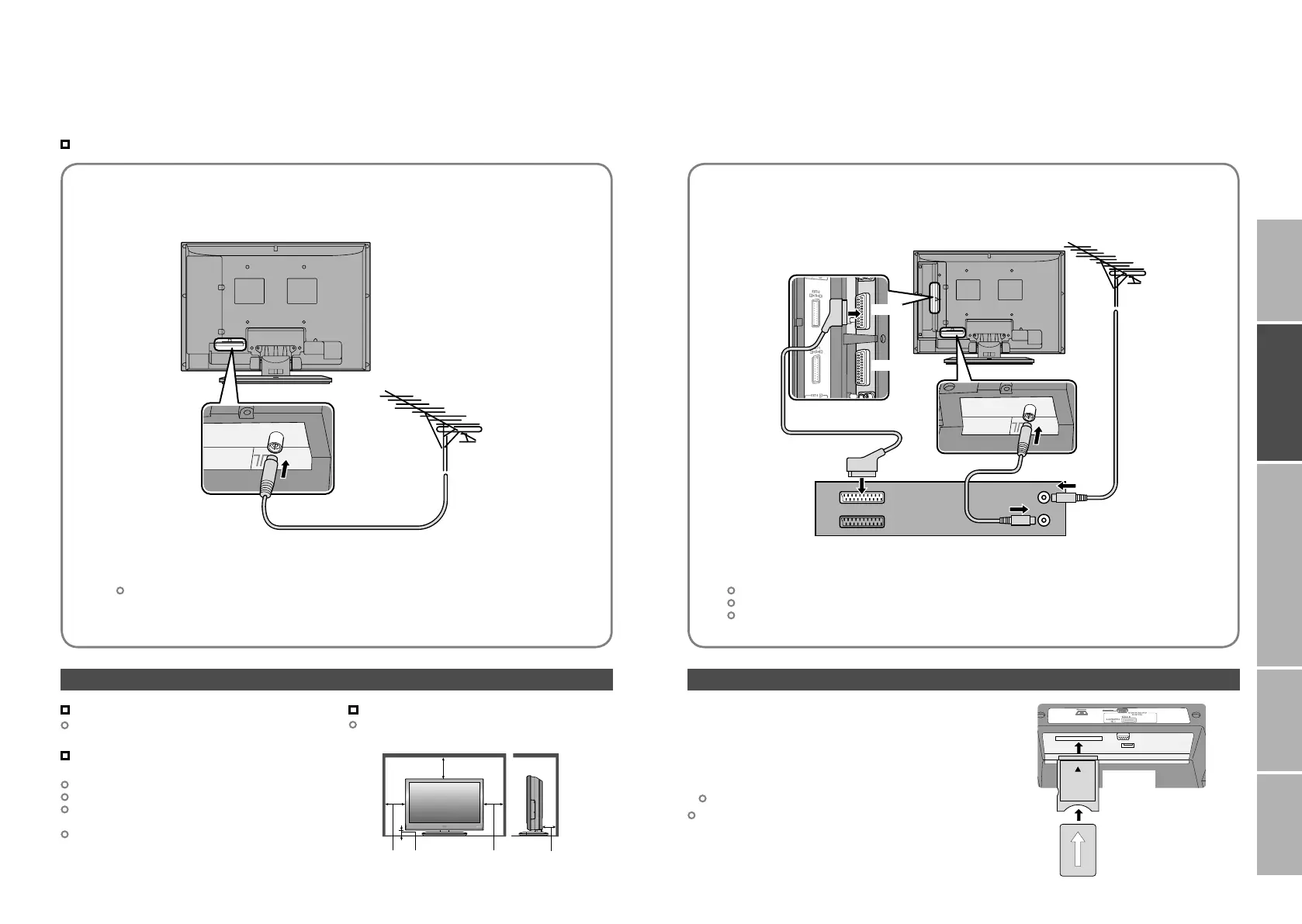

Basic connections
200mm
50mm150mm 150mm 50mm
 Power requirements
 Connect the power cord only to a 220-240V, 50Hz
AC outlet.
 When attaching the TV to the wall, use the
optional JVC wall mounting unit
 Consult a qualified technician.
 See the included manual on mounting procedures.
 JVC assumes no responsibility for damage due to
improper mounting.
 200mm × 200mm mount which conforms to VESA
standards.
 Installation requirements
 To avoid overheating, ensure the unit has ample
room.
Please read the user manuals of each device carefully before setup.
It is necessary to connect an aerial to watch TV.
 Connect with other devices  “Connecting external devices” (P. 10)
Care when setting Watch pay-per-view
Contract with a broadcasting company beforehand.
1 Unplug the power cord
2 Insert the Viewing Card into the CAM.
3 Insert the CAM.
4 Plug the power cord, and turn the power on.
 Set pay-per-view  (P. 40)
 The CAM and Viewing Card will be sent by the broadcasting
company after contracting with them.
Connect the aerial
 After all the connections have been made, insert the plug into an AC outlet.
AERIAL
VCR / DVD recorder
 After all the connections have been made, insert the plug into an AC outlet.
 Connect “T-V LINK” compatible recording device to “EXT-2”.
 “T-V LINK”  “What is “T-V LINK”?” (P. 12)
EXT-2
Connect a VCR / DVD recorder
AERIAL
EXT-1
Viewing
Card
Conditional
Access
Module
