Wall Mount
Instruction for Wall Mount
A wall mount kit (purchased separately) would allow you to mount your JVC
TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. is not responsible for any damagJVC e to the product or injury to
yourself or others resulting from the wall-mounting.
This TV is compatible with a 200mm x 200mm mounting hole pattern.JVC
- Do not mount your TV at more than a 15 degree tilt.JVC
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
- 4 pcs of type M6 screws are required for installing the wall mount bracket to
your TV. Do not use screws that are longer than 10 mm. Screws that JVC
are too long may cause damag e to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. is not liable for these kinds of JVC
incidents.
-9-
专案号
视图：
型号：
图号：
名称：
六视图
批准
比例版本
图幅
单位
数量
1
材料
设计
mm
核对
A4
结构六视
图
深圳市兆驰股份有限公司}
QR-RD-014B
R
LD5560配61底座
1238
774
714
11
32
62
250
400
200

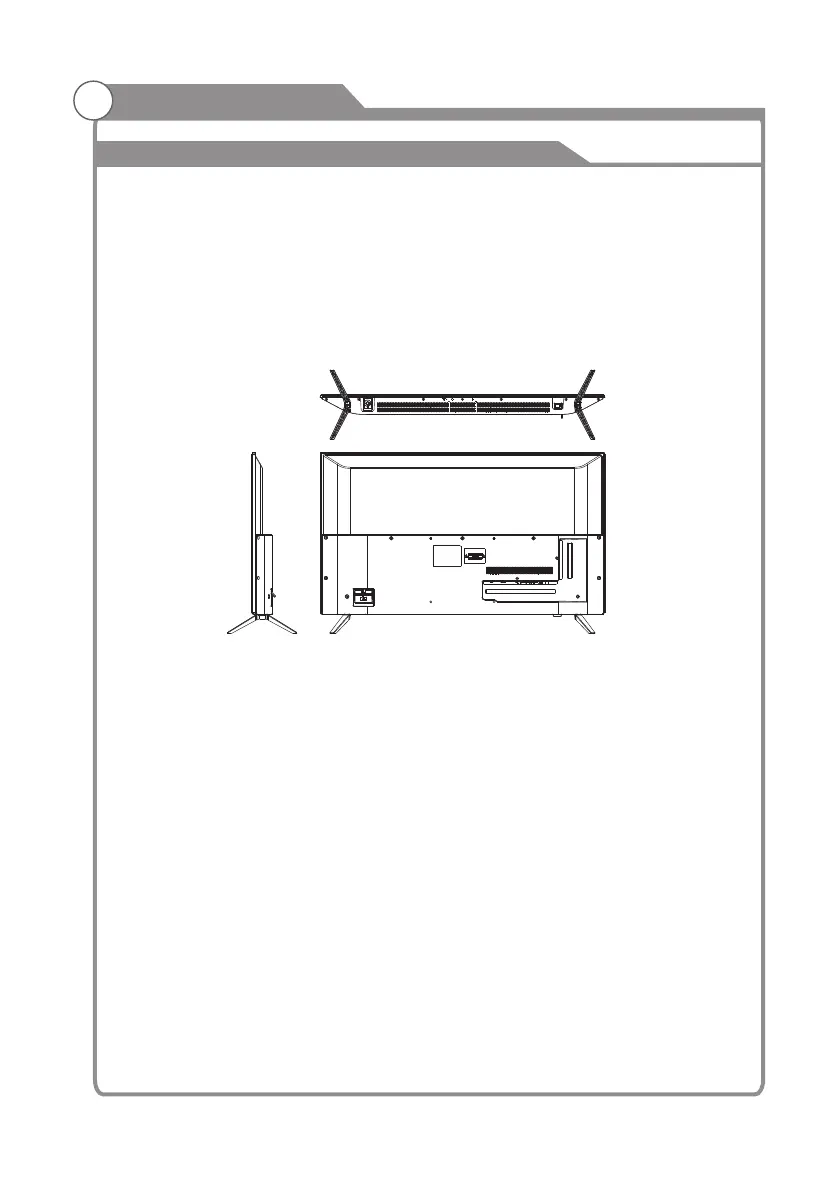

Dimensions for Mounting Hole Pattern
