10
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?

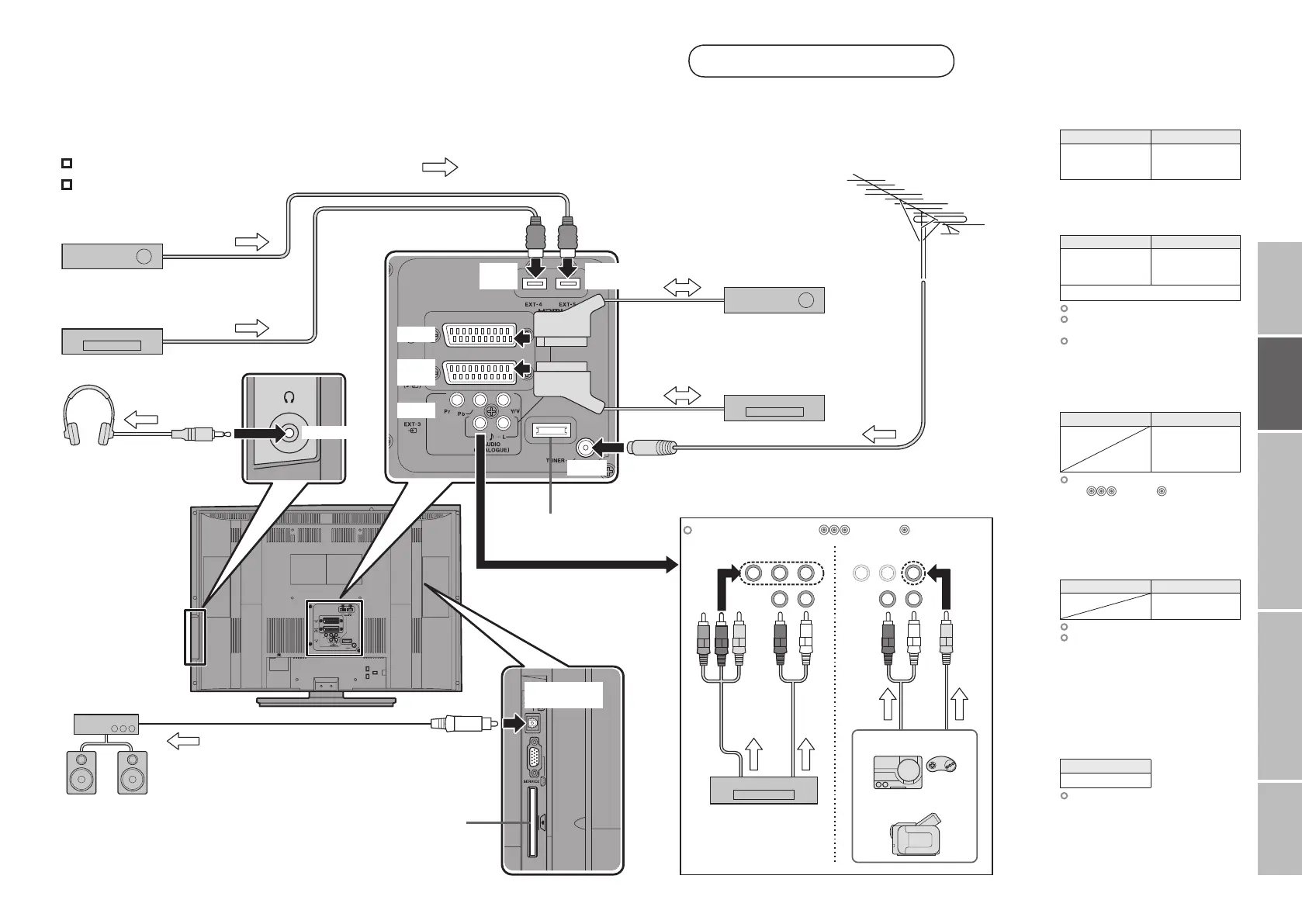

Connecting external devices
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)
VCR / DVD / other devices
EXT-1
Watching videos
Output Input
· Composite signal
· Sound L / R
·
Composite signal /
RGB
· Sound L / R
EXT-2
Dubbing videos
Using “T-V LINK”
Output Input
· Composite signal
· Sound L / R
·
Composite signal /
RGB / S-VIDEO
· Sound L / R
· T-V LINK
Use S-VIDEO “S-IN” (P. 26)
Select dubbing sources
“DUBBING” (P. 26)
Connect a decoder
“DECODER (EXT-2)” (P. 34)
EXT-3
Watching DVDs
Output Input
· Composite signal
/
Component
signal (P. 58)
· Sound L / R
Switch input signal
“ Pr/Pb/Y, V” (P. 26)
EXT-4
EXT-5
Connecting
HDMI devices
Output Input
· HDMI signal
(P. 58)
“HDMI SETTING” (P. 34)
EXT-5 input does not support
analogue sound.
DIGITAL
AUDIO OUT
Listening to the digital audio of digital
channels on external speakers
Output
·
Digital sound (P. 56)
The sound from analogue channels
and external devices cannot be
output.
““Dolby Digital” output from the
“DIGITAL AUDIO OUT” terminal”
(P. 56)
AERIAL
VCR / DVD recorder
(“T-V LINK” compatible)
Headphone
Headphone
EXT-1
EXT-2
(T-V LINK)
Connect “DVI” devices (P. 54)
“T-V LINK” (P. 11)
EXT-3
Satellite broadcast /
Digital broadcast tuner
Satellite broadcast / Digital
broadcast tuner
DVD player
(HDMI compatible)
(HDMI compatible)
EXT-5
(HDMI 2)
EXT-4
(HDMI 1)
DVD player
: signal direction
Not available.
(For service adjustments)
(Component input) (Composite input)
Game consoles
Video camera
Amplifier
(Digital optical compatible)
(L) (R)
DIGITAL
AUDIO OUT
Switch input signal “ Pr/Pb/Y, V” (P.26)
CI (Common Interface) slot
(“Watch pay-TV digital channels” P. 8)
9-10 2/15/2007 11:48:31 AM
