JVC MX-GT90 Service Manual

MX-GT90
1-5
Remove the six screws A on the back of the body.
Remove the two screws B on both sides of the
body.
Remove the metal cover from the body by lifting the
rear part of the cover.
1.
2.
3.
Disassembly method
<Main body>
Removing the metal cover

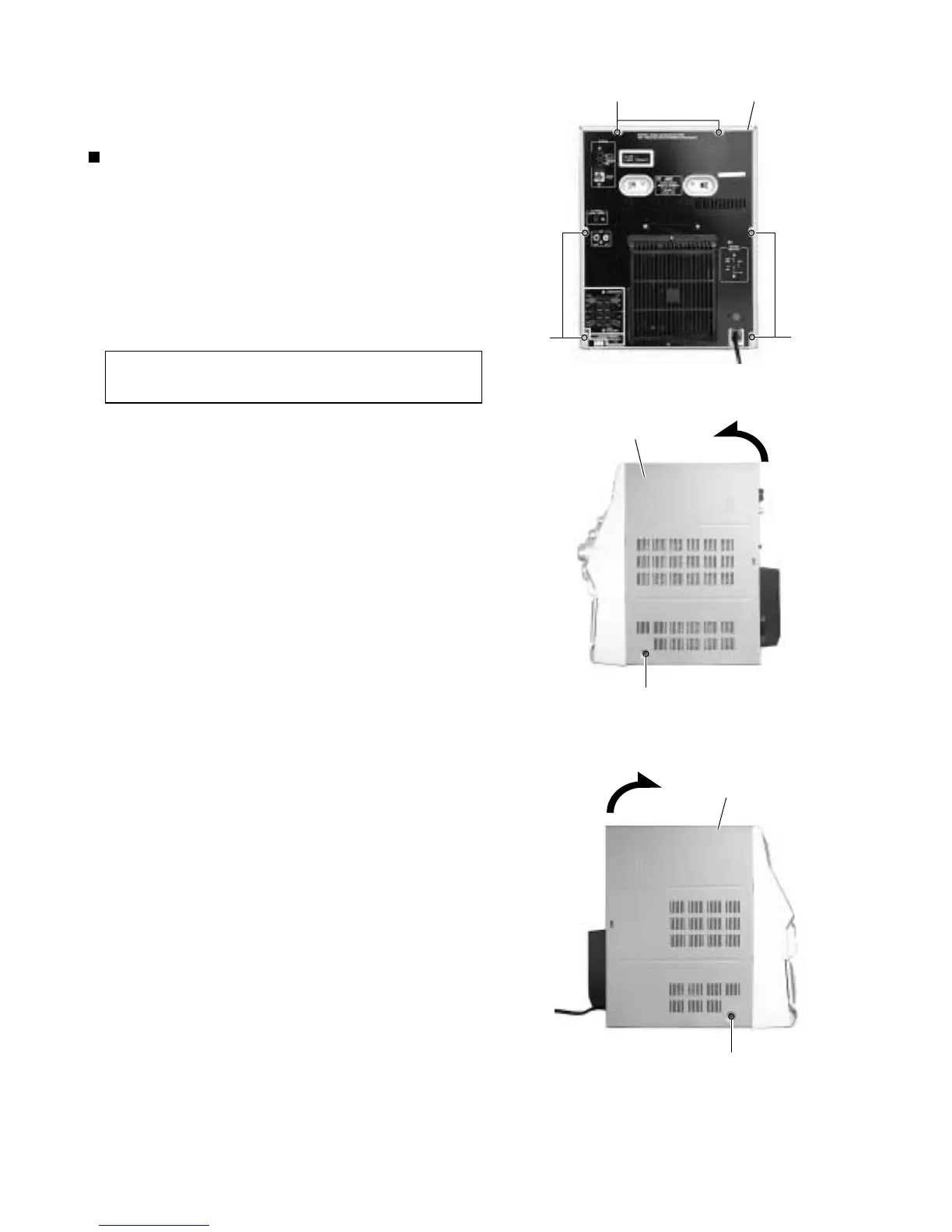

(See Fig.1 to 3)
Do not break the front panel tab fitted to
the metal cover.
CAUTION:
Fig.1
Fig.2
Fig.3
A
A
A
Metal cover
Metal cover
B
Metal cover
B
