– 7 –

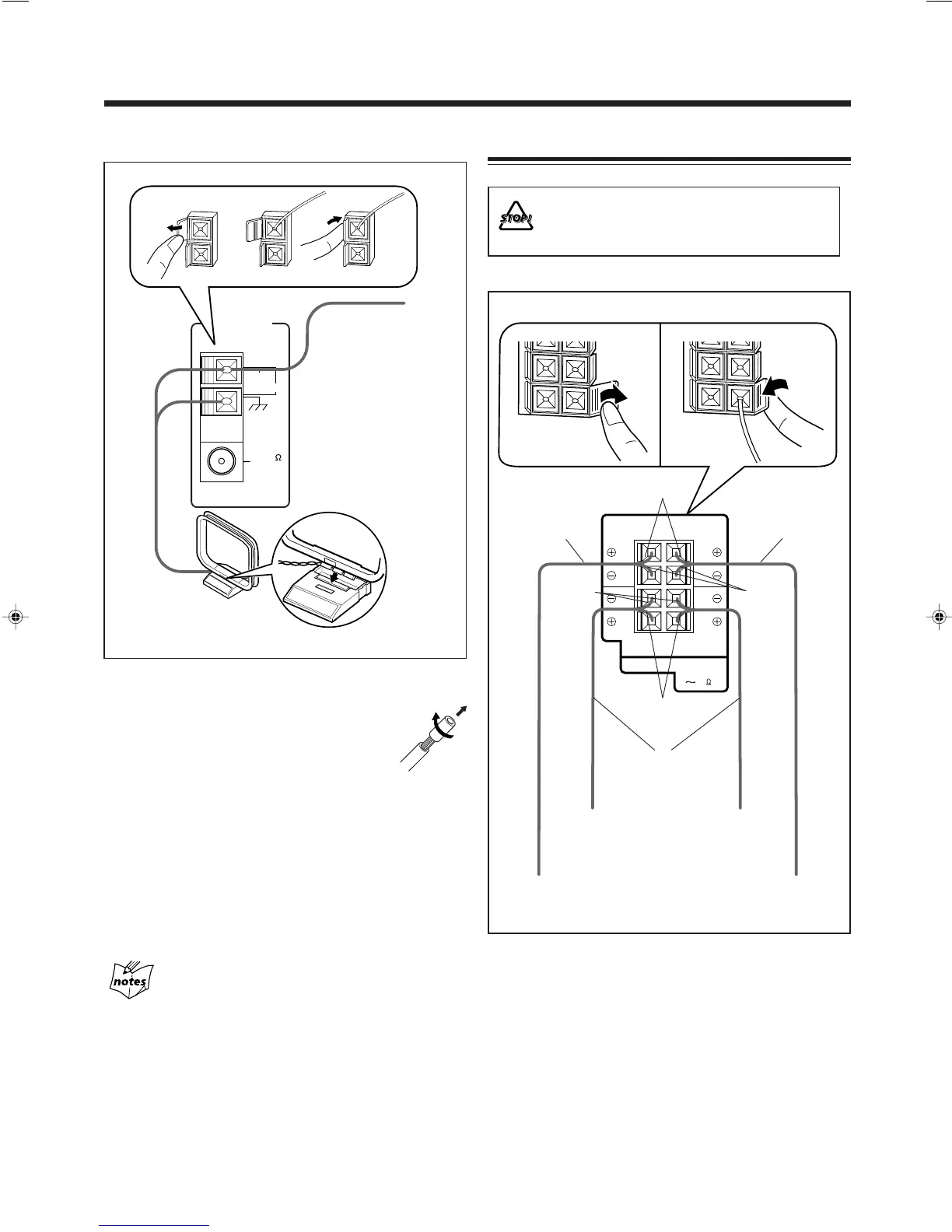

1
Connect the AM loop antenna to the AM
LOOP terminals as illustrated.
• If the AM loop antenna wire is covered
with vinyl, remove the vinyl by twisting
it as shown in the diagram.
2 Turn the AM loop antenna until you have the
best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. (The AM
loop antenna must remain connected.)
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
COAXIAL
ANTENNA
AM LOOP
FM 75
AM EXT
1
2
Connecting Speakers
SUBWOOFERS
MAIN
SPEAKERS
CAUTION: SPEAKER
IMPEDANCE
616
LEFT
LEFT
RIGHT
RIGHT
Blue
1
3
From front
right speaker
From front
left speaker
Black
Red
Speaker cords
(blue/black)
From right
subwoofer
From left
subwoofer
Speaker cords
(red/black)
Speaker cords
(red/black)
Black
For MX-GT90 and MX-GT80:
DO NOT carry the speaker by holding the duct
tube (on the top of the speaker).
2
EN01-12.MX-G90&80&70[J]f 12/20/00, 10:57 PM7
