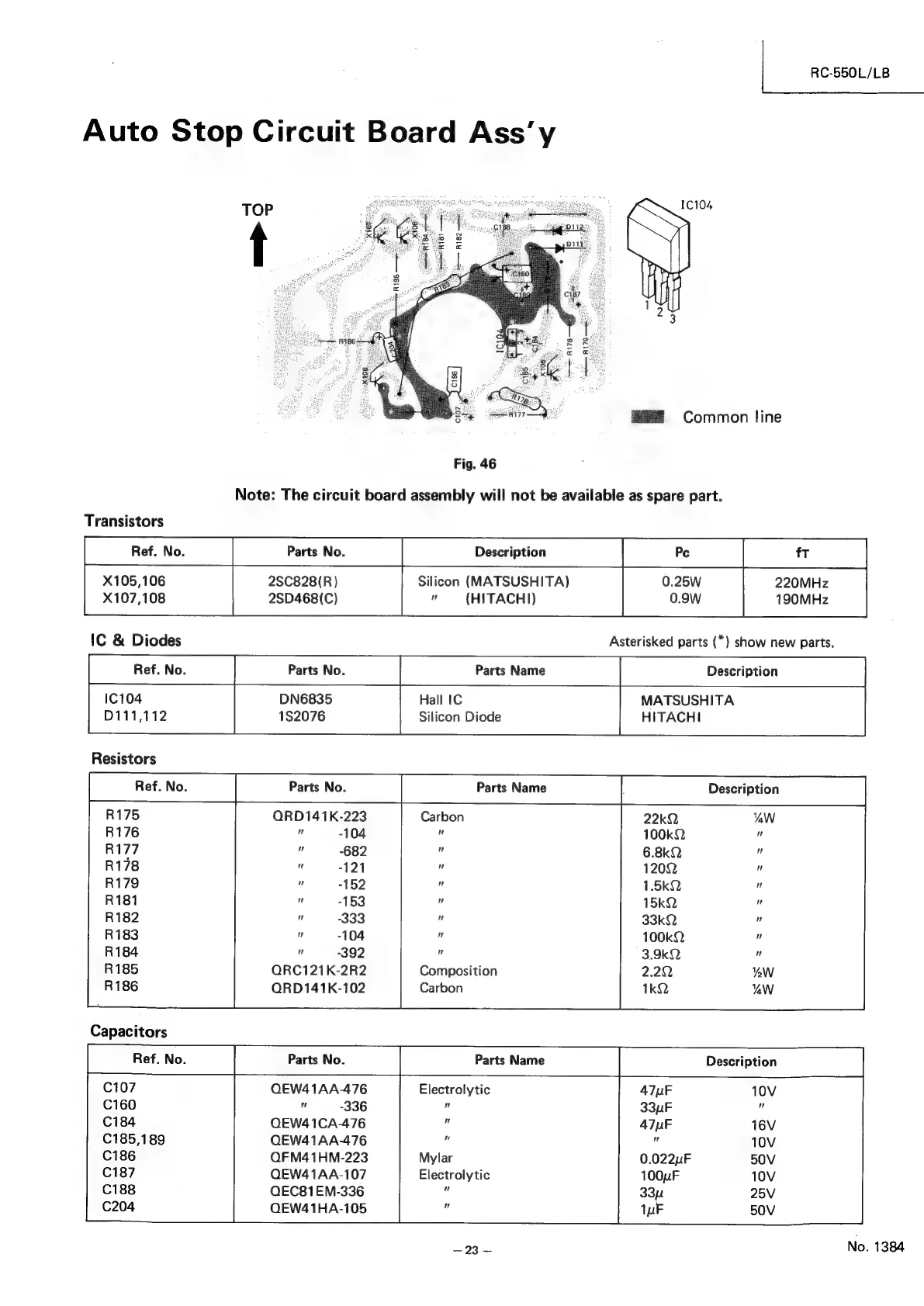

Auto Stop Circuit Board Ass’y
Top 1C104
@= ~=Common line
Fig. 46
Note: The circuit board assembly will not be available as spare part.
Transistors
a
X105,106 2SC828(R) Silicon (MATSUSHITA) 0.25wW 220MHz
X107,108 2SD468(C) " (HITACHI) 0.9W 190MHz
IC & Diodes Asterisked parts (*) show new parts.
1C104
D111,112
DN6835 Hall IC MATSUSHITA
1S2076 Silicon Diode HITACHI
Resistors
Parts No. Parts Name Description
ORD141K-223
-104
-682
-121
-152
-153
-333
-104
-392
QRC121K-2R2 Composition
QRD141K-102 Carbon
Capacitors
Parts Name Description
QEW41AA-476 Electrolytic 10V
” -336 "
QEW41CA-476 16V
QEW41AA-476 10V
QFM41HM-223 Mylar 50V
QEW41AA-107 Electrolytic 10V
OQEC81EM-336 25V
QEW41HA-105 50V
ieee No. 1384
