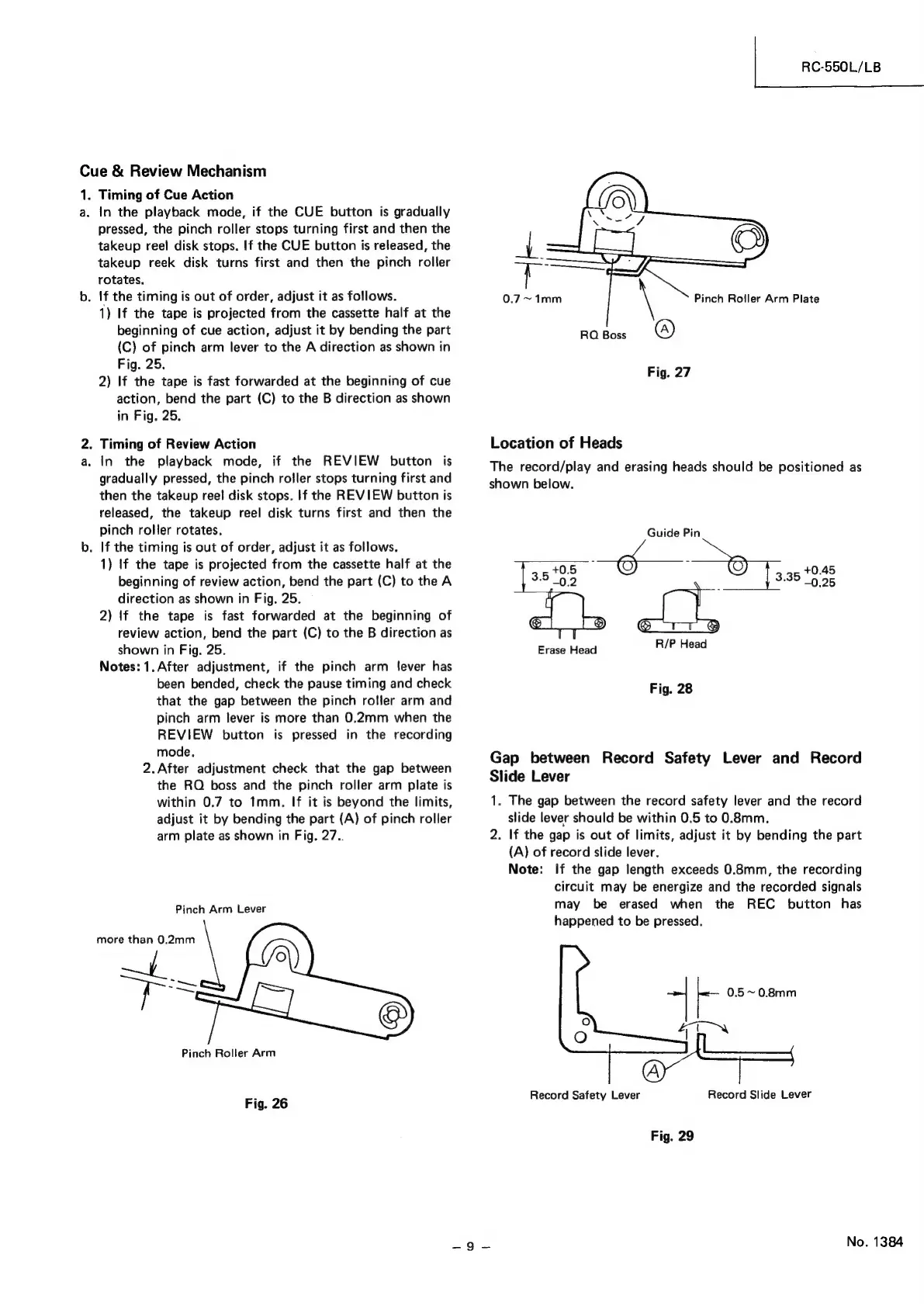

Page #9 background image
Cue
&
Review
Mechanism
1.
Timing
of
Cue
Action
a.
In
the
playback
mode,
if
the
CUE
button
is
gradually
pressed,
the
pinch
roller
stops
turning
first
and
then
the
takeup
reel
disk
stops.
If
the
CUE
button
is
released,
the
takeup
reek
disk
turns
first
and
then
the
pinch
roller
rotates.
b.
If
the
timing
is
out
of
order,
adjust
it
as
follows.
1)
If
the
tape
is
projected
from
the
cassette
half
at
the
beginning
of
cue
action,
adjust
it
by
bending
the
part
(C)
of
pinch
arm
lever
to
the
A
direction
as
shown
in
Fig.
25.
2)
If
the
tape
is
fast
forwarded
at
the
beginning
of
cue
action,
bend
the
part
(C)
to
the
B
direction
as
shown
in
Fig.
25.
2.
Timing
of
Review
Action
a.
In
the
playback
mode,
if
the
REVIEW
button
is
gradually
pressed,
the
pinch
roller
stops
turning
first
and
then
the
takeup
reel
disk
stops.
If
the
REVIEW
button
is
released,
the
takeup
reel
disk
turns
first
and
then
the
pinch
roller
rotates.
b.
If
the
timing
is
out
of
order,
adjust
it
as
follows.
1)
If
the
tape
is
projected
from
the
cassette
half
at
the
beginning
of
review
action,
bend
the
part
(C)
to
the
A
direction
as
shown
in
Fig.
25.
2)
If
the
tape
is
fast
forwarded
at
the
beginning
of
review
action,
bend
the
part
(C)
to
the
B
direction
as
shown
in
Fig.
25.
Notes:
1.After
adjustment,
if
the
pinch
arm
lever
has
been
bended,
check
the
pause
timing
and
check
that
the
gap
between
the
pinch
roller
arm
and
pinch
arm
lever
is
more
than
0.2mm
when
the
REVIEW
button
is
pressed
in
the
recording
mode.
2.After
adjustment
check
that
the
gap
between
the
RO
boss
and
the
pinch
roller
arm
plate
is
within
0.7
to
Imm.
If
it
is
beyond
the
limits,
adjust
it
by
bending
the
part
(A)
of
pinch
roller
arm
plate
as
shown
in
Fig.
27..
Pinch
Arm
Lever
more
than
0.2mm
Oo
he
iP
a
ag
Pinch
Roller
Arm
©
Fig.
26
RC-550L/LB
Pinch
Roller
Arm
Plate
Location
of
Heads
The
record/play
and
erasing
heads
should
be
positioned
as
shown
below.
Guide
Pin
So
+0.45
;
3.35
0.25
R/P
Head
Erase
Head
Fig.
28
Gap
between
Record
Safety
Lever
and
Record
Slide
Lever
1.
The
gap
between
the
record
safety
lever
and
the
record
slide
lever
should
be
within
0.5
to
0.8mm.
2.
If
the
gap
is
out
of
limits,
adjust
it
by
bending
the
part
(A)
of
record
slide
lever.
Note:
if
the
gap
length
exceeds
0.8mm,
the
recording
circuit
may
be
energize
and
the
recorded
signals
may
be
erased
when
the
REC
button
has
happened
to
be
pressed.
7
a
0.5
~
0.8mm
oo
Record
Safety
Lever
Record
Slide
Lever
Fig.
29
No.
1384
