RC-BX33SL

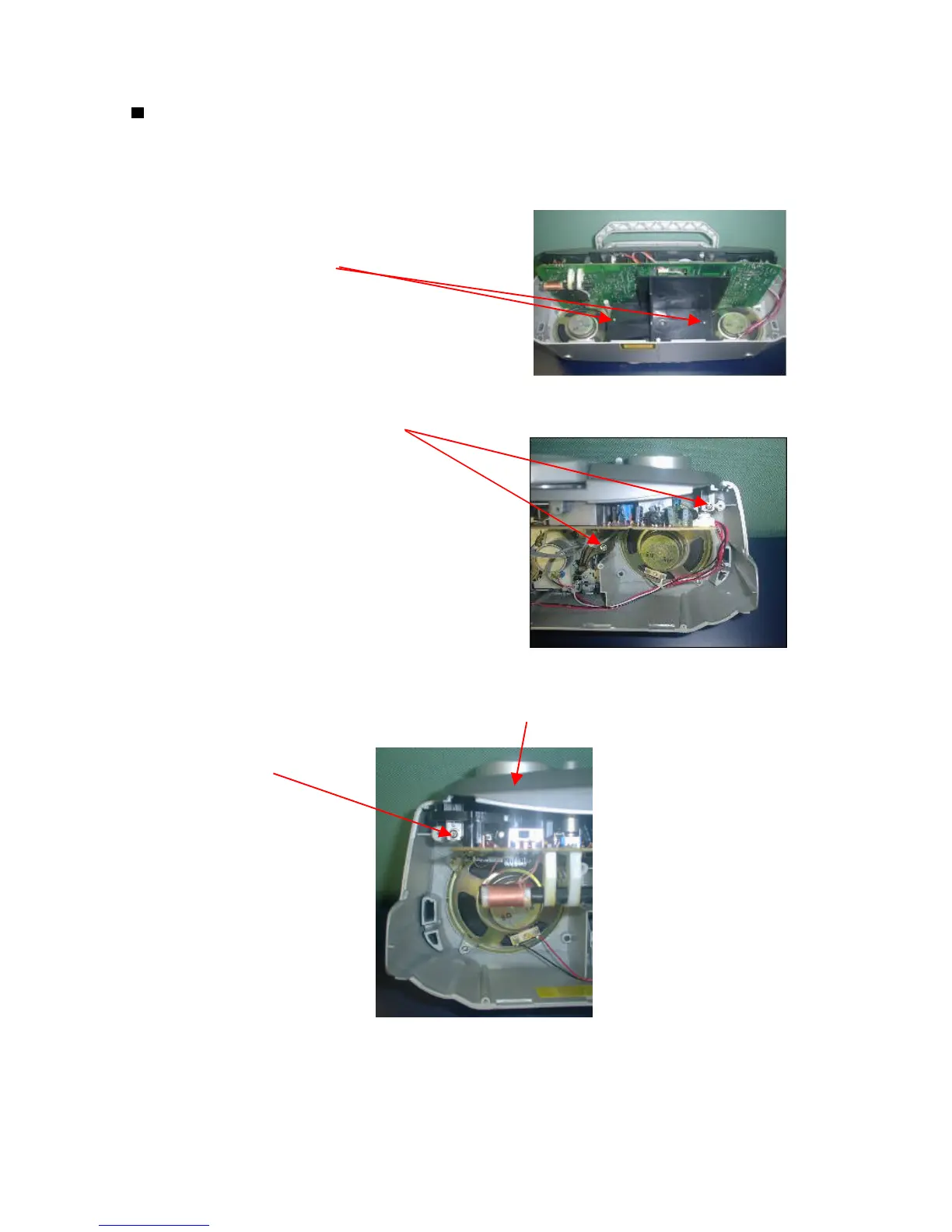

Removing the Main Board PCB (1)
1.
Open & remove the rear panel
2.
Remove the Two Screws
D
on the Black Backet,
then take out the black backet on the
front panel.
Screws D.
3
Remove the Two Screws
E
retaining on the
left of front panel.
Screws E.
4
Remove the One Screw
F
retaining on the
right of front panel.
Top panel
Screw F.
1-5
