JVC RC-BZ6 Service Manual

1-6
RC-BZ5LB/BZ5RD
RC-BZ6BU

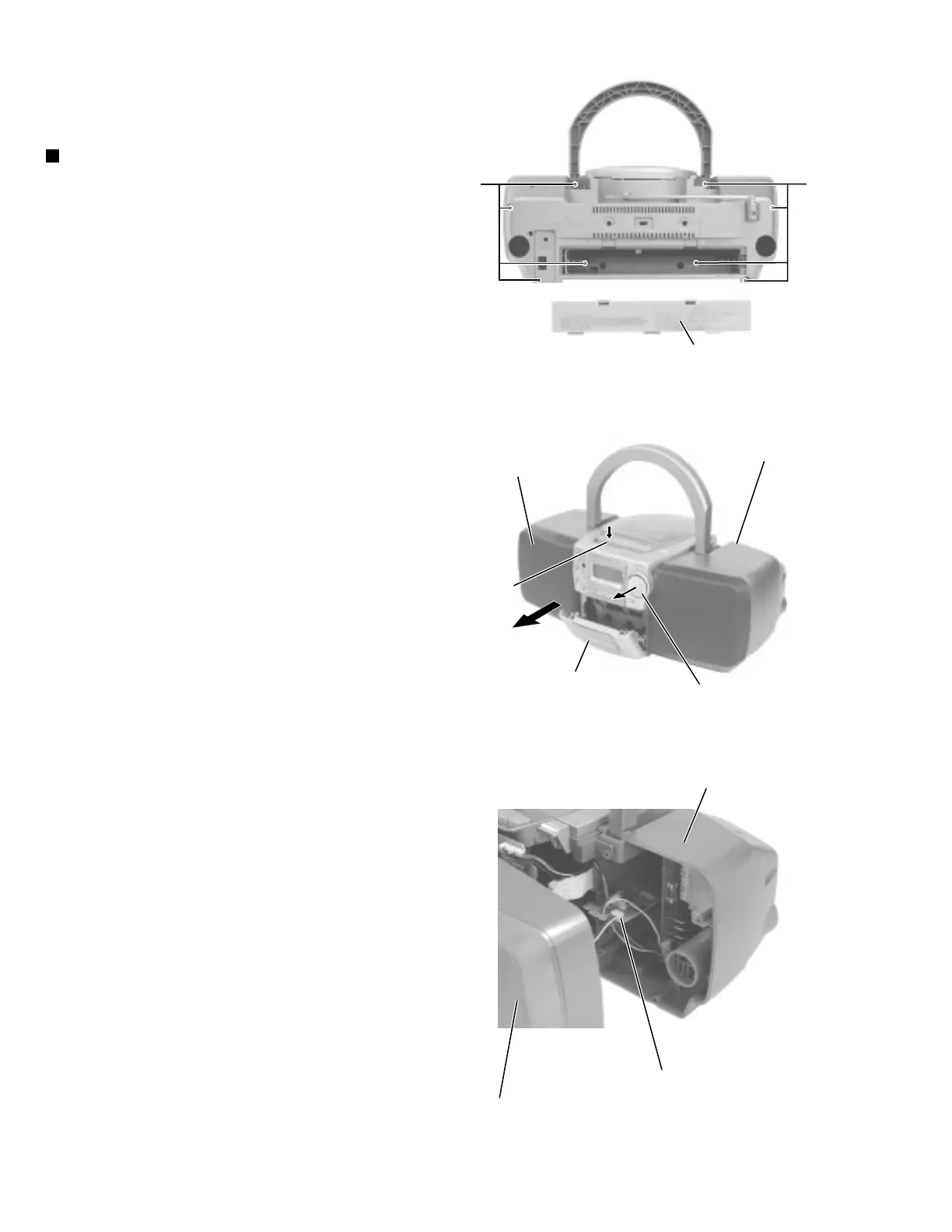

Detach the battery cover on the back of the body.
Remove the eight screws A attaching the front
cabinet assembly and the rear cabinet assembly.
Press STOP / EJECT button on the upper side of the
body to open the cassette door.
Remove the front cabinet assembly toward the front
and pull out the volume knob at the same time.
Disconnect the speaker harness from connector
CN309 on the main board in the rear cabinet
assembly.
1.
2.
3.
4.
<Main body>
assembly /
rear cabinet assembly (See Fig.1 to 3)
Disassembly method
A
A
Battery cover
Fig.1
Fig.2
Fig.3
STOP / EJECT button
Front cabinet assembly
Rear cabinet assembly
Cassette door
Volume knob
Rear cabinet assembly
Front cabinet assembly
Main board
CN309
Removing the front cabinet assembly /
