JVC TD-V662 User Manual

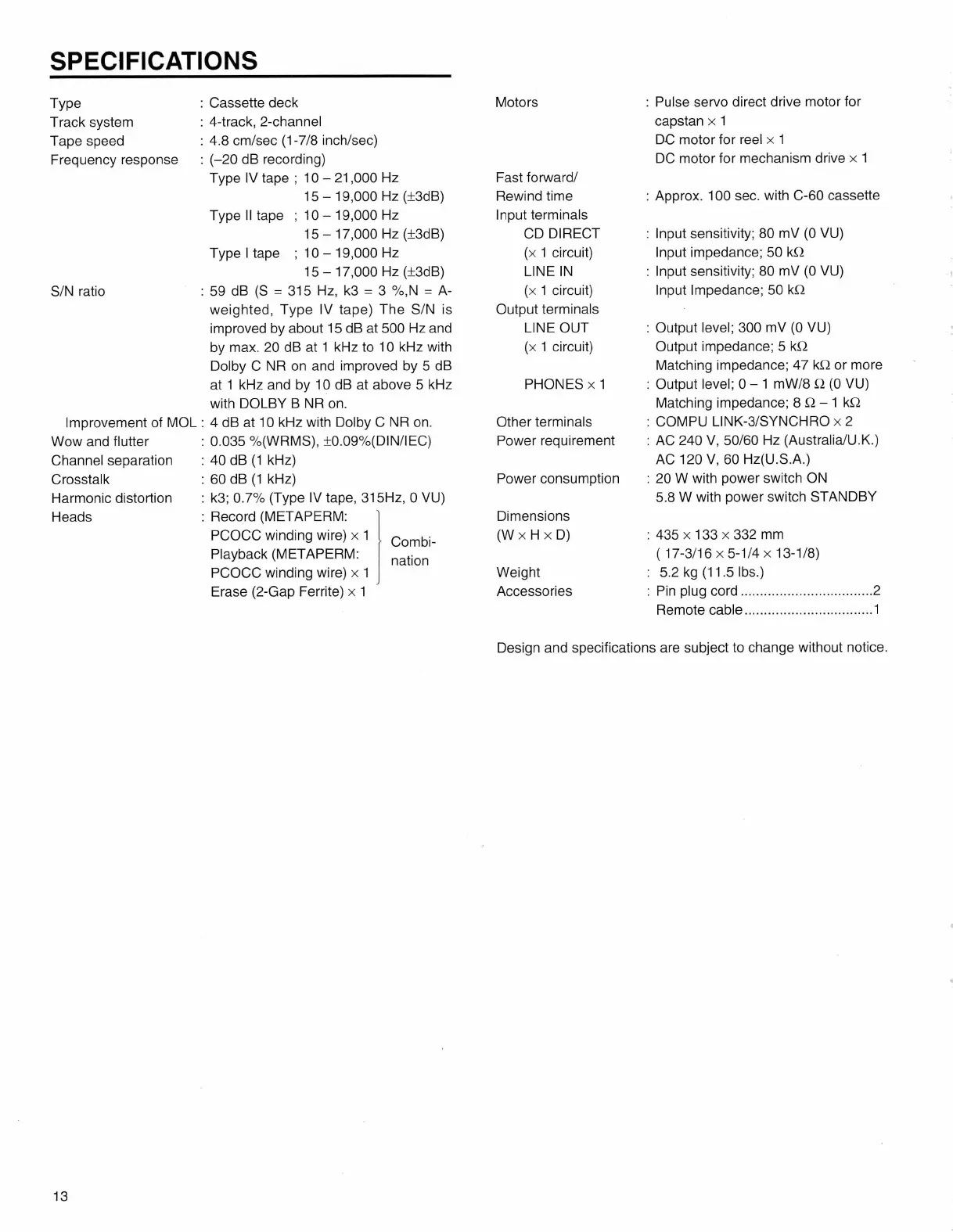

SPECIFICATIONS
S/N ratio
Improvement of MOL
Wow and flutter
Channel separation
Crosstalk
Harmonic distortion
Heads
Cassette deck
4-track, 2-channel
4.8 cm/sec (1-7/8 inch/sec)
(-20 dB recording)
Type IV tape ; 10-21,000 Hz
15-19,000 Hz(±3dB)
Type II tape ; 10-19,000 Hz
15-17,000 Hz(±3dB)
Type I tape ; 10 - 19,000 Hz
15-17,000 Hz (±3dB)
59 dB (S = 315 Hz, k3 = 3 %,N = A-
weighted. Type IV tape) The S/N is
improved by about 15 dB at 500 Hz and
by max. 20 dB at 1 kHz to 10 kHz with
Dolby C NR on and improved by 5 dB
at 1 kHz and by 10 dB at above 5 kHz
with DOLBY B NR on.
4 dB at 10 kHz with Dolby C NR on.
0.035 %(WRMS), +0.09%(DIN/IEC)
40 dB (1 kHz)
60 dB (1 kHz)
k3; 0.7% (Type IV tape, 315Hz, 0 VU)
Record (METAPERM:
PCOCC winding wire) x 1 . Combi-
Playback (METAPERM:
PCOCC winding wire) x 1
Erase (2-Gap Ferrite) x 1
Motors
Fast forward/
Rewind time
Input terminals
CD DIRECT
(x 1 circuit)
LINE IN
(x 1 circuit)
Output terminals
LINE OUT
(x 1 circuit)
PHONES x 1
Other terminals
Power requirement
Power consumption
Dimensions
(W x H X D)
Weight
Accessories
: Pulse servo direct drive motor for
capstan x 1
DC motor for reel x 1
DC motor for mechanism drive x 1
: Approx. 100 sec. with C-60 cassette
: Input sensitivity; 80 mV (0 VU)
Input impedance; 50 kQ
: Input sensitivity; 80 mV (0 VU)
Input Impedance; 50 kQ
: Output level; 300 mV (0 VU)
Output impedance; 5 kQ
Matching impedance; 47 kQ or more
; Output level; 0-1 mW/8 Q (0 VU)
Matching impedance; 8 Q - 1 kQ
: COMPU LINK-3/SYNCHROx2
; AC 240 V, 50/60 Hz (Australia/U.K.)
AC 120 V, 60 Hz(U.S.A.)
; 20 W with power switch ON
5.8 W with power switch STANDBY
; 435 X 133 X 332 mm
(17-3/16 X 5-1/4 X 13-1/8)
: 5.2 kg (11.5 lbs.)
: Pin plug cord 2
Remote cable 1
Design and specifications are subject to change without notice.

JVC TD-V662 Specifications

General

Brand	JVC
Model	TD-V662
Category	Cassette Player
Language	English
