JVC TD-X102 User Manual

KD-X1 A/B/C/E/G/J/U

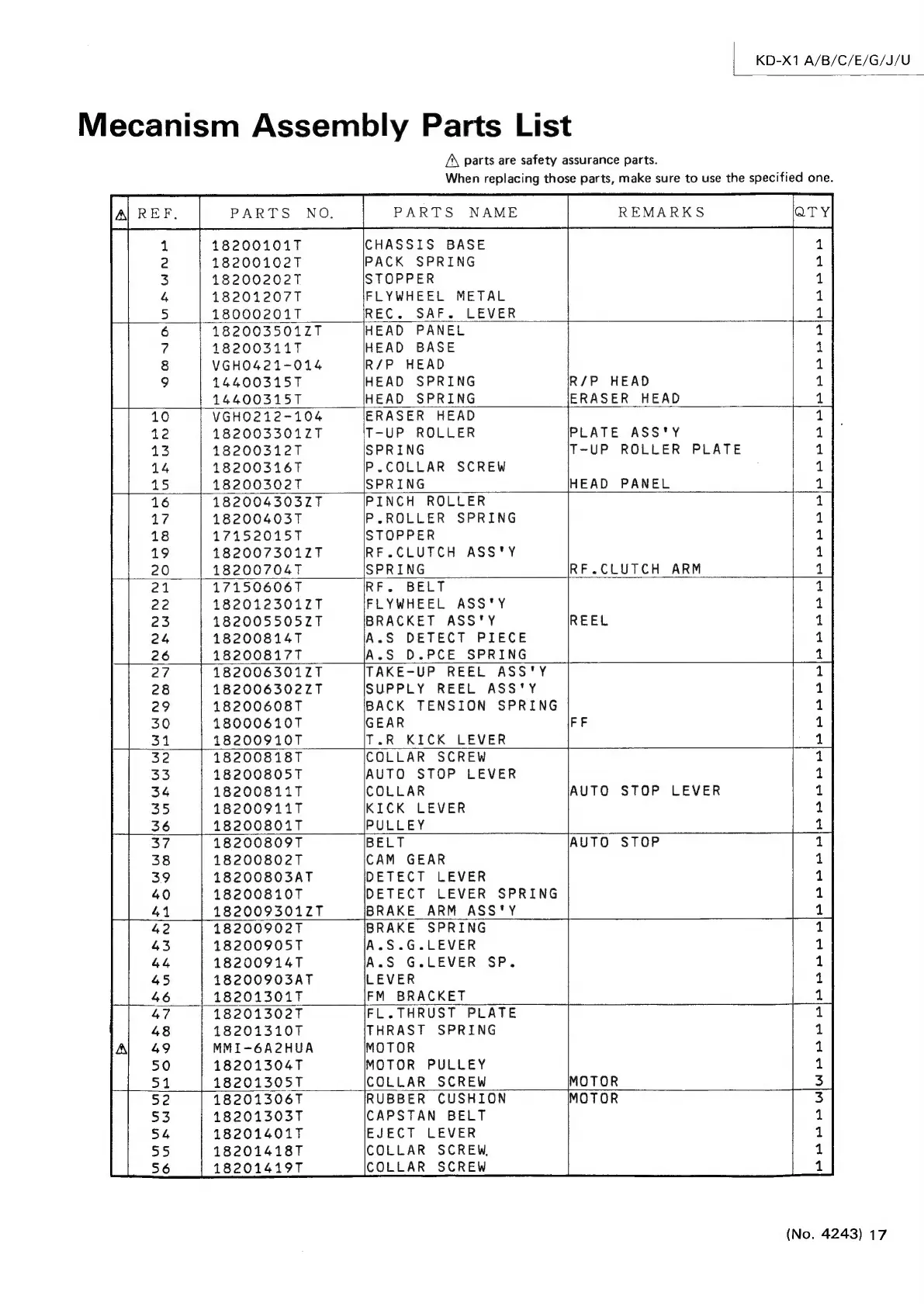

Mecanism Assembly Parts List
A\ parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
PARTS NO. PARTS NAME REMARKS
18200101T CHASSIS BASE
18200102T PACK SPRING
18200202T STOPPER
18201207T FLYWHEEL METAL
18000201T REC. SAF. LEVER
182003501ZT HEAD PANEL
18200311T HEAD BASE
VGHO421-014 R/P HEAD
14400315T HEAD SPRING R/P HEAD
14400315T HEAD SPRING ERASER HEAD
VGHO212-104 ERASER HEAD |
1820033012T T-UP ROLLER PLATE ASS'Y
18200312T SPRING T-UP ROLLER PLATE
18200316T P.COLLAR SCREW
18200302T SPRING HEAD PANEL
182004303ZT PINCH ROLLER
18200403T P.ROLLER SPRING
17152015T STOPPER
182007301ZT RF.CLUTCH ASS'Y
18200704T ISPRING RF.CLUTCH ARM
17150606T RF. BELT
1820123012T FLYWHEEL ASS'Y
1820055052ZT BRACKET ASS'Y REEL
18200814T A.S DETECT PIECE
18200817T A.S D.PCE SPRING
182006301zZT TAKE-UP REEL ASS'Y
182006302ZT SUPPLY REEL ASS'Y
18200608T BACK TENSION SPRING
18000610T GEAR
18200910T T.R KICK LEVER
18200818T COLLAR SCREW
18200805T AUTO STOP LEVER
18200811T COLLAR AUTO STOP LEVER
18200911T KICK LEVER
18200801T PULLEY
18200809T BELT AUTO STOP
18200802T CAM GEAR
18200803AT DETECT LEVER
18200810T DETECT LEVER SPRING
1820093017T [BRAKE ARM ASS'Y
18200902T BRAKE SPRING
18200905T A.S.G.LEVER
18200914T A.S G.LEVER SP.
18200903AT LEVER
18201301T IFM BRACKET
18201302T FL.THRUST PLATE
18201310T THRAST SPRING
MMI-6A2HUA MOTOR
18201304T MOTOR PULLEY
18201305T COLLAR SCREW
182013067 ~ IRUBBER CUSHION
18201303T CAPSTAN BELT
18201401T EJECT LEVER
18201418T COLLAR SCREW,
18201419T COLLAR SCREW
