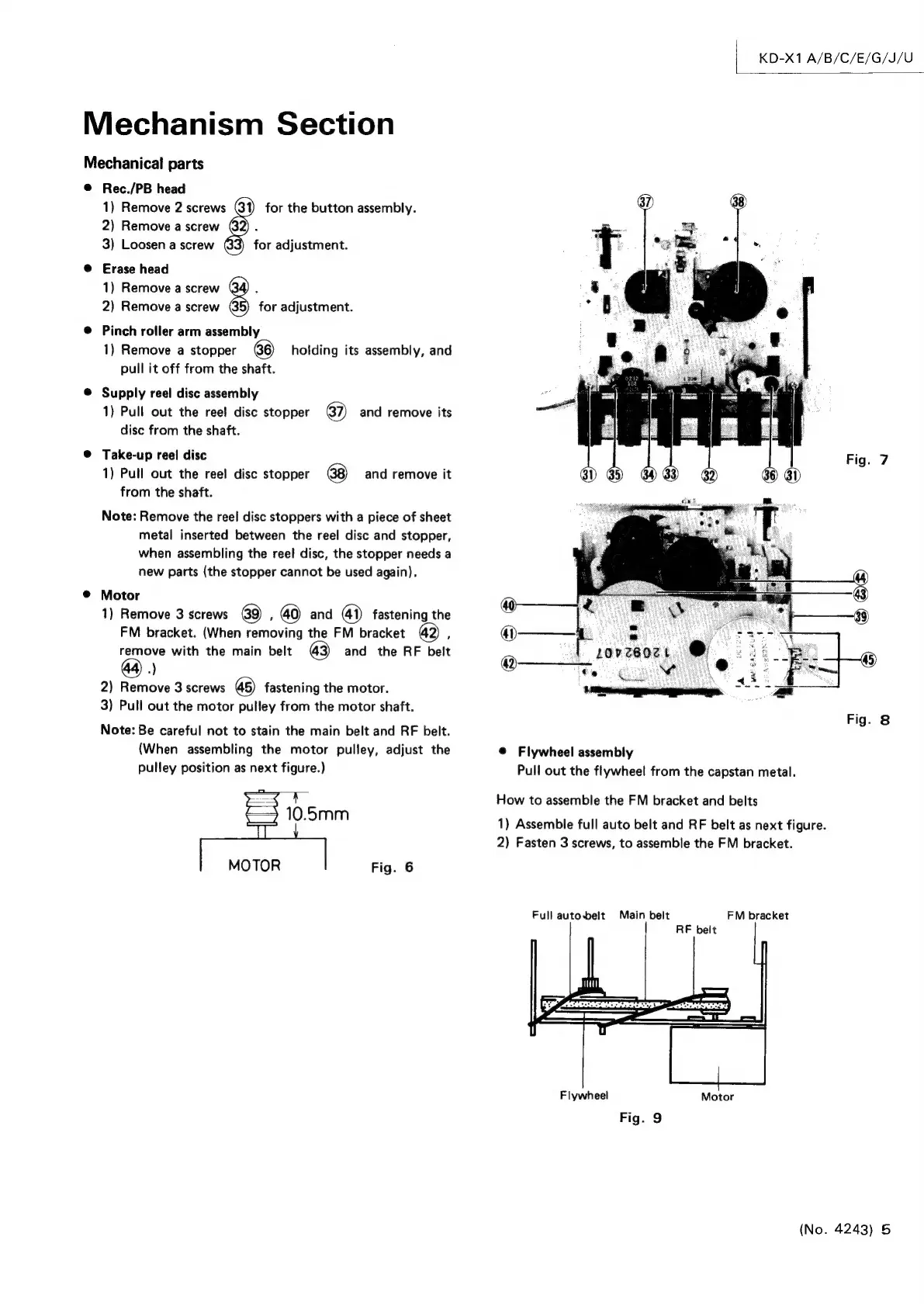

Mechanism Section
Mechanical parts
© Rec./PB head
1) Remove 2 screws 3) for the button assembly.
2) Remove a screw 82)
3) Loosen a screw @3) for adjustment.
@ Erase head
1) Remove a screw :
2) Remove a screw for adjustment.
@ Pinch roller arm assembly
1) Remove a stopper holding its assembly, and
pull it off from the shaft.
@ Supply reel disc assembly
1) Pull out the reel disc stopper 67) and remove its
disc from the shaft.
@ Take-up reel disc
1) Pull out the reel disc stopper and remove it
from the shaft.
Note: Remove the reel disc stoppers with a piece of sheet
metal inserted between the reel disc and stopper,
when assembling the reel disc, the stopper needs a
new parts (the stopper cannot be used again).
@ Motor
1) Remove 3 screws ; and fastening the
FM bracket. (When removing the FM bracket 42) F
remove with the main belt and the RF belt
)
2) Remove 3 screws 45) fastening the motor.
3) Pull out the motor pulley from the motor shaft.
Note: Be careful not to stain the main belt and RF belt.
(When assembling the motor pulley, adjust the
pulley position as next figure.)
10.5mm
MOTOR Fig. 6
KD-X1 A/B/C/E/G/J/U
Fig. 8
@ Flywheel assembly
Pull out the flywheel from the capstan metal.
How to assemble the FM bracket and belts
1) Assemble full auto belt and RF belt as next figure.
2) Fasten 3 screws, to assemble the FM bracket.
Full autobelt Main belt FM bracket
RF beit
Flywheel Motor
Fig. 9
(No. 4243) 5
