Connecting to an analog component
You can enjoy the sound of an analog component such as a VCR, TV, or Cassette recorder with this system. Use RCA pin plug cords (not
supplied) for connection.
NOTE
• The signals input to the VIDEO jack of the VCR IN jacks will be output only from the VIDEO jack of the VIDEO OUT jacks, not from the S-VIDEO
jack of the VIDEO OUT jacks.
• If you connect a sound-enhancing device such as a graphic equalizer between the source components and this system, the sound output through this
system may be distorted.
Connecting to a digital component
You can enjoy the sound of a digital component such as a DBS (Direct Broadcast Satellite) tuner or MD recorder with this system. Use digital
optical cord (not supplied) for connection.
NOTE
When playing a video component such as a DBS tuner;
• To listen to the sound, select “DBS” as the source to play. (
A
pg. 20)
• To see the picture, connect the video output jack of the component to the video input jack of the TV directly, and select the correct input mode on the
TV.

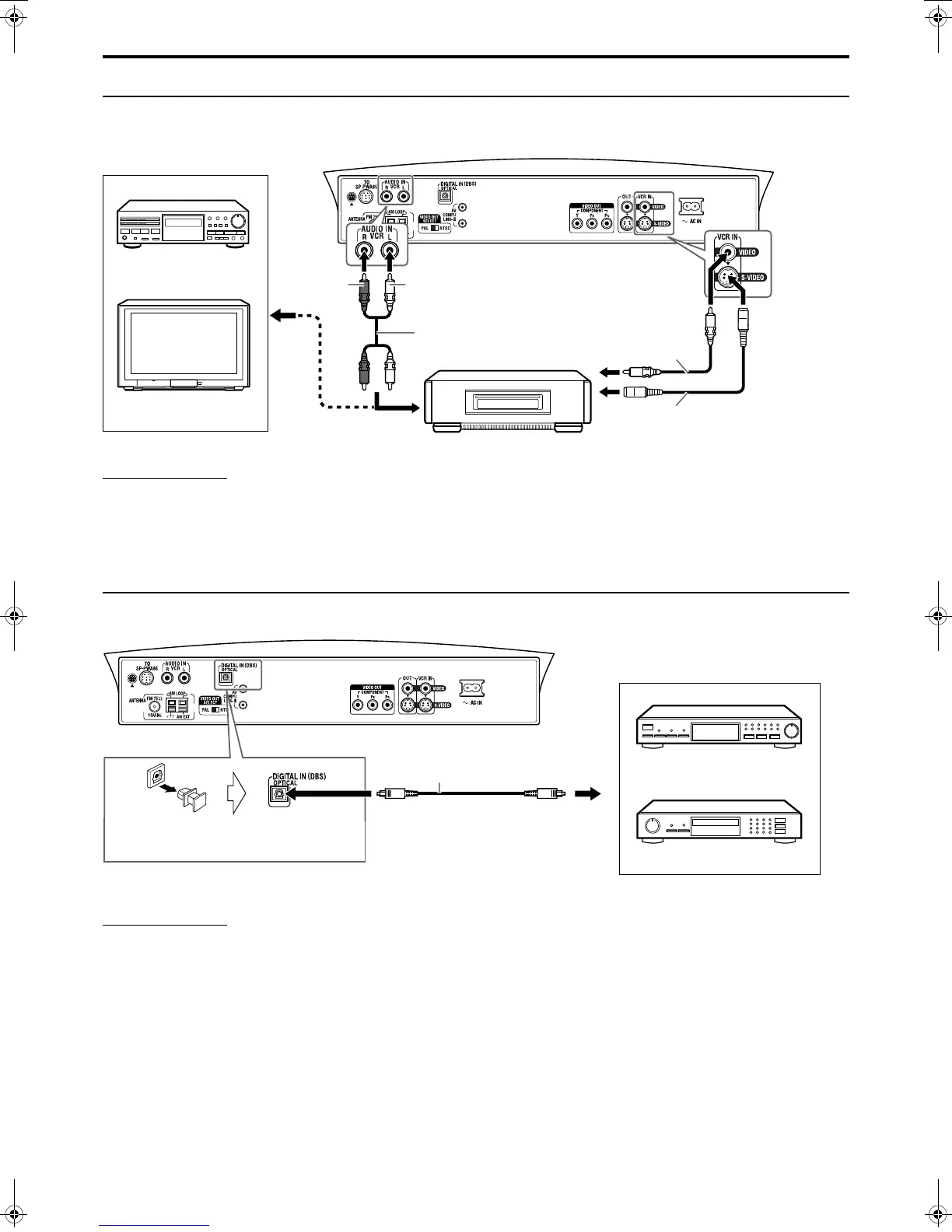

RCA pin plug cord
(not supplied)
Center unit
VCR
Composite video cord
(not supplied)
A To composite video output
B To S-video output
C To audio output
C
B
S-video cord (not supplied)
Red
White
A
or
TV
Cassette recorder
DBS tuner
MD recorder
Center unit
Digital optical cord (not supplied)
To digital optical output
Before connecting a digital optical cord,
unplug the protective plug.
