JVC TH-A5R Service Manual

TH-A5R
3-5
(SP-WA5)

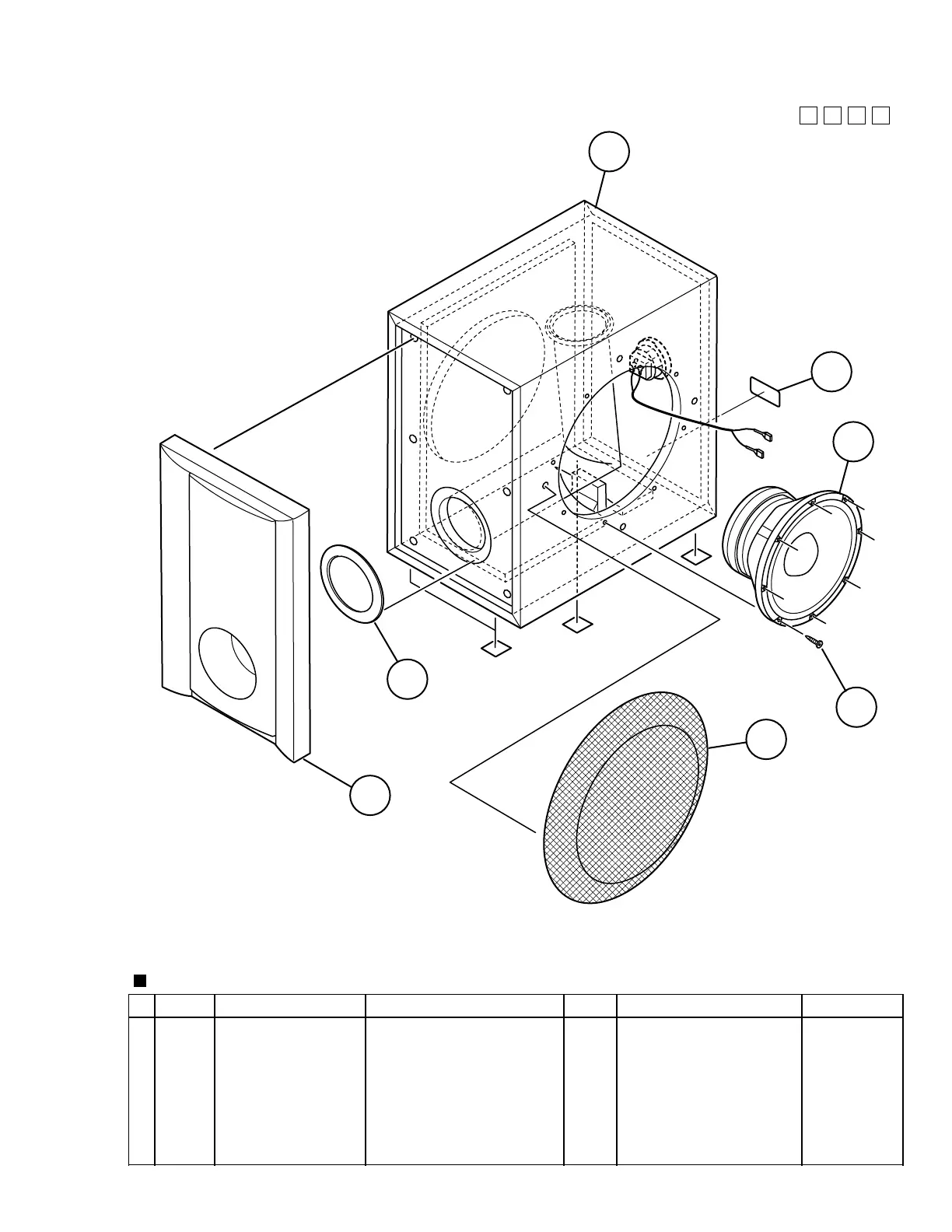

Exploded view of general assembly and parts list
Block No.
M
M
M
2
Item
Parts number Parts name Area
A
Parts list (General assembly)SP-WA5
Q'ty
Description
Block No. M2MM
1 AA000026-01
CABINET
1
2 CR200027-01
SPEAKER
1
LE10020-007A
3 70-059-416-02
SCREW
8
4 29-100-086-01
PACKING RING
1
5 53-000-158-11
ORNAMENT
1
LV21155-002A
6 99-200-019-01
NET ASSY
1
LV33134-001A
7 60-001-856-01
RATING LABEL
1
1
7
2
3
6
4
5
