(No.MB427)1-23

3.3.10 Removing the feed motor

(See Figs.18 and 19)

• Remove the tray assemblies and DVD traverse mechanism

assembly.

(1) From the top side of the DVD traverse mechanism assem-

bly, remove the screw K attaching the feed bracket and re-

move the feed bracket from the sections t. (See Fig.18.)

(2) Release the claw u of the thrust spring in the direction of

the arrow and remove the thrust spring. (See Fig.18.)

(3) Remove the screw shaft from the section v and remove it

in the direction of the arrow. (See Fig.19.)

(4) Remove the middle gear. (See Fig.19.)

(5) Remove the screw L attaching the feed motor to the C.TM

chassis. (See Fig.19.)

(6) Remove the wires from the soldered sections w on the

spindle motor board. (See Fig.19.)

(7) Take out the feed motor from the motor base.

Reference:

After attaching the feed motor, pass the wires through the sec-

tions x on the C.TM chassis as before. (See Fig.19.)

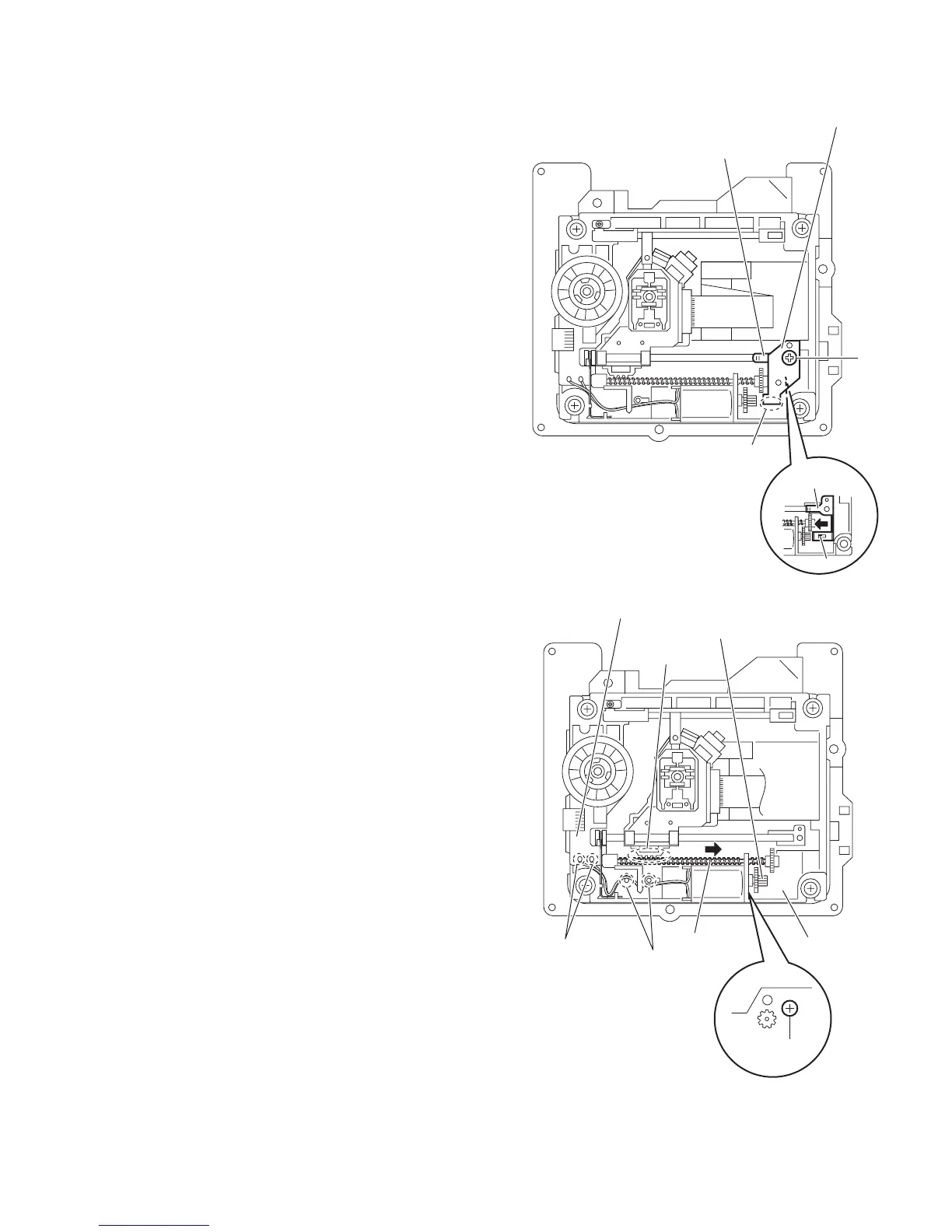

Fig.18

Fig.19

Thrust spring

Feed bracket

Spindle motor board

Screw shaft

Middle gear

C.TM chassis
