JVC TH-C90A User Manual

1-26 (No.MB570)
3.2.11 Removing the motor
(See Fig.31 and 32)
Attention:
You need not to remove the tray assembly, and in such case,
move it.
(1) Remove the two belts on top of the body.
(2) Remove the two screws S attaching the motor.
(3) Remove the motor from the bottom of the body.
Attention:
When removing the motor board with the motor, you need not
to unsolder four solder parts.
Caution:
When reattaching the motor, turn the side where the label
should bu put to te front side.

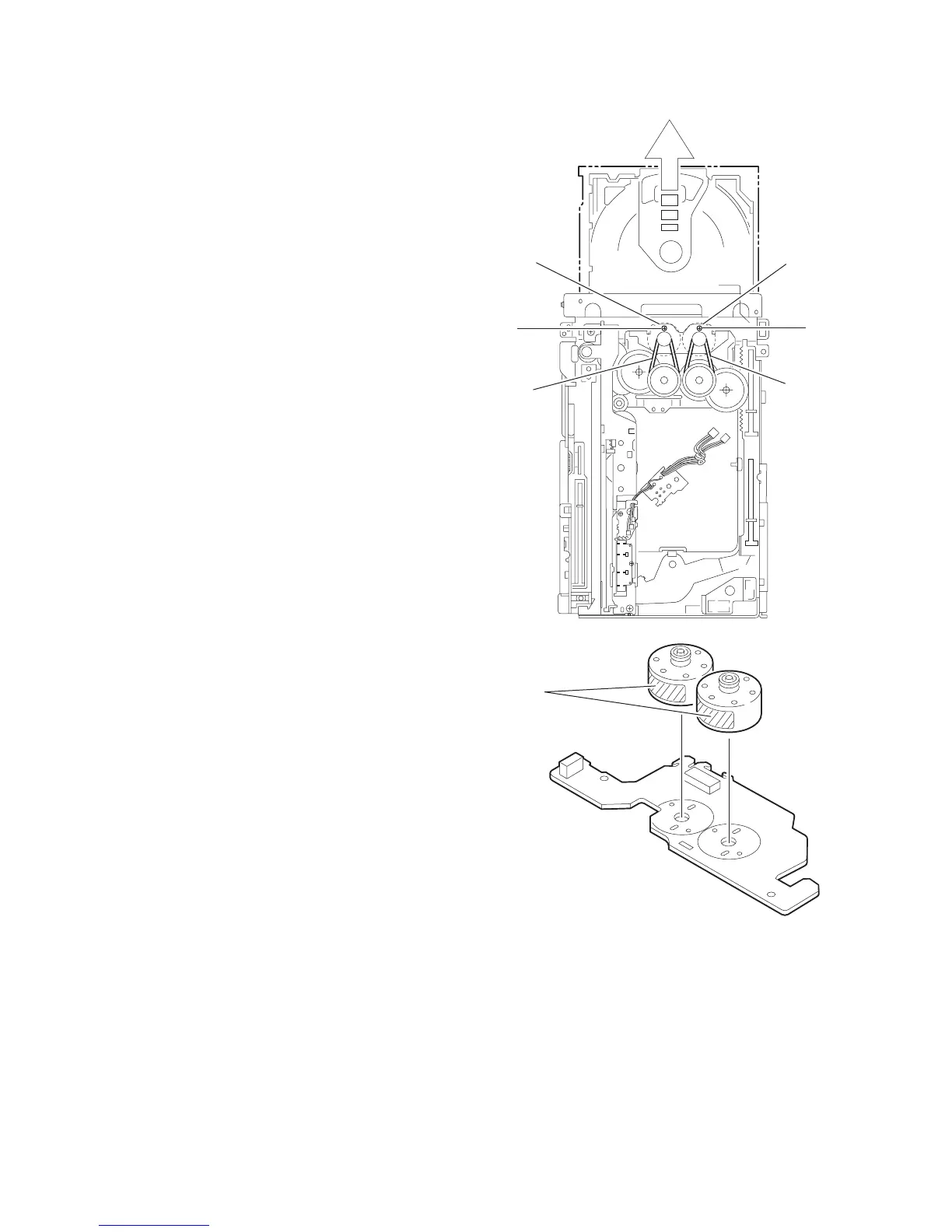

Fig.31
Fig.32
Motor Motor
R
R
Belt Belt
Label
