Connections
9
Do not connect the power cord until all other connections have been made.
7 Connecting speakers for TH-S33
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER IMPEDANCE)
indicated on the rear of the center unit.
• DO NOT connect more than one speaker to one speaker terminal.
• When installing the satellite speakers on the wall;
• Be sure to have them installed on the wall by a qualified personnel.
DO NOT install the satellite speakers on the wall by yourself to
avoid unexpected damage from their falling off the wall due to
incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation
on a wall. Injury to personnel or damage to equipment may result
if the speakers installed interfere with daily activities.

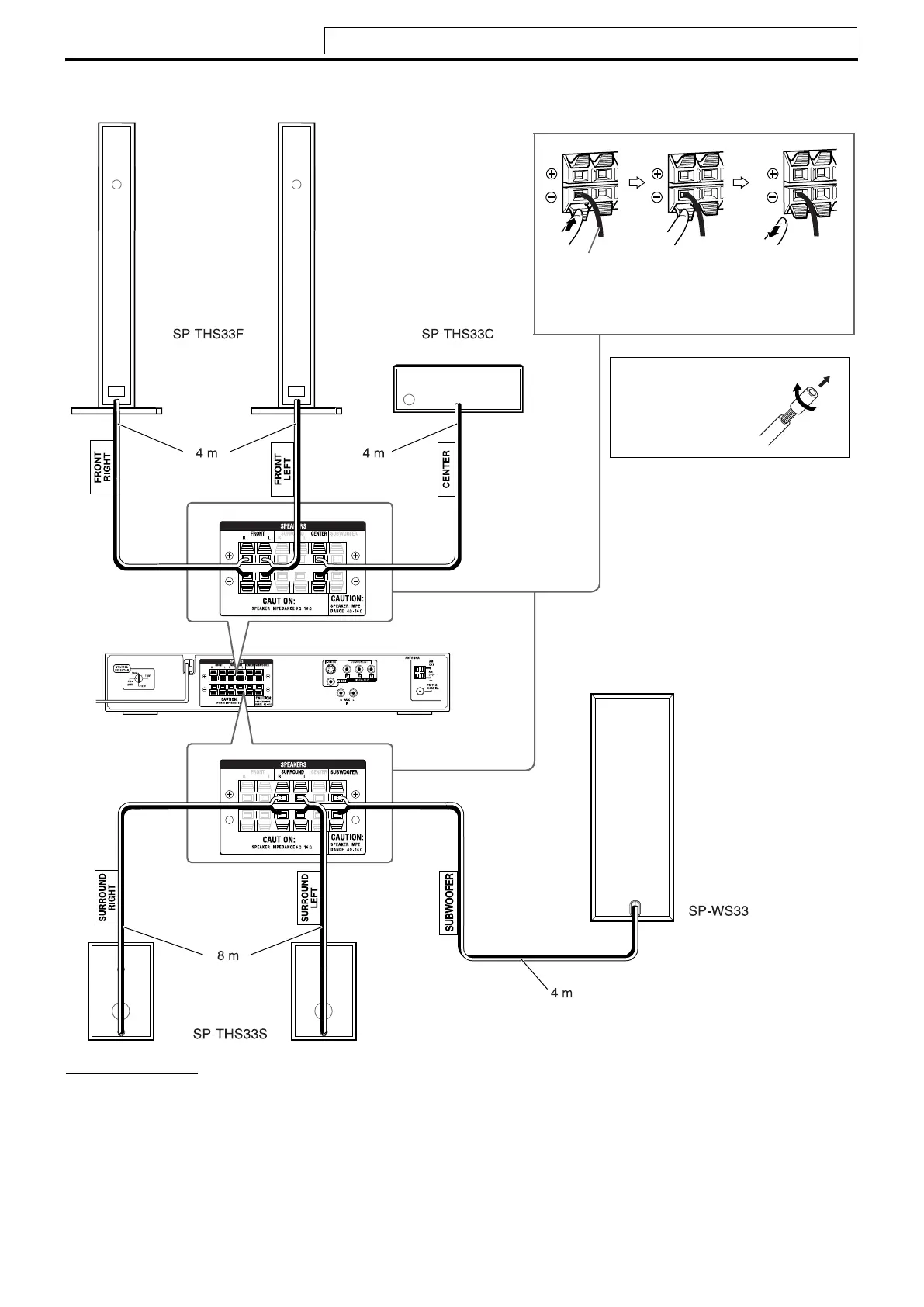

Center speaker
• Connect the black cords to the black (-) terminals.
• Connect the white cords to the red (+) terminals.
Speaker cord
Subwoofer
Surround speakers
Before connecting
the speaker cords;
Twist and pull the
insulation coat off
and remove.
Front speakers
TH-S33-11[AU].book Page 9 Monday, April 4, 2005 2:54 PM
To Next Page
