1-26 (No.MB236)
SECTION 4
ADJUSTMENT
4.1 Test mode setting method
(1) Unplug the power plug.
(2) Insert power plug into outlet while pressing both "PLAY" key and "STANDBY/ON" key of the main body.
"Area code" is indicated at the upper left of display.
(3) To release test mode, press "STANDBY/ON" key of the main body.
NOTE:
Each pressing of "MENU" key of the remote controller in test mode changes the mode as follows.
4.2 Method of displaying version of firmware
(1) Set the main body at test mode.
(2) Press "MENU" key of the remote controller twice. Then, version number and alphabetical letter of the system controller and the
back end are displayed in the FL display as follows.
(3) Each pressing of "ON SCREEN" key of the remote controller at the displaying version of firmware, changes the display as fol-
lows.
Becomes test mode
Checksum of device key
TEST # -------------
-------------------------
: Area code
BE microcomputer learning processing condition
Version of microcomputer (Refer to "4.2 Method of displaying
version firmware".) _ _ _--------
#
# : Region code
Version of region code (Refer to "4.3 Method of displaying region code".)REGION -----------------------
Mechanism check mode (Refer to "4.6 Display of current value of laser".)
FL Display and LED becomes all lighting
CHECK -------------------------
Expert modeEXPERT ------------------------

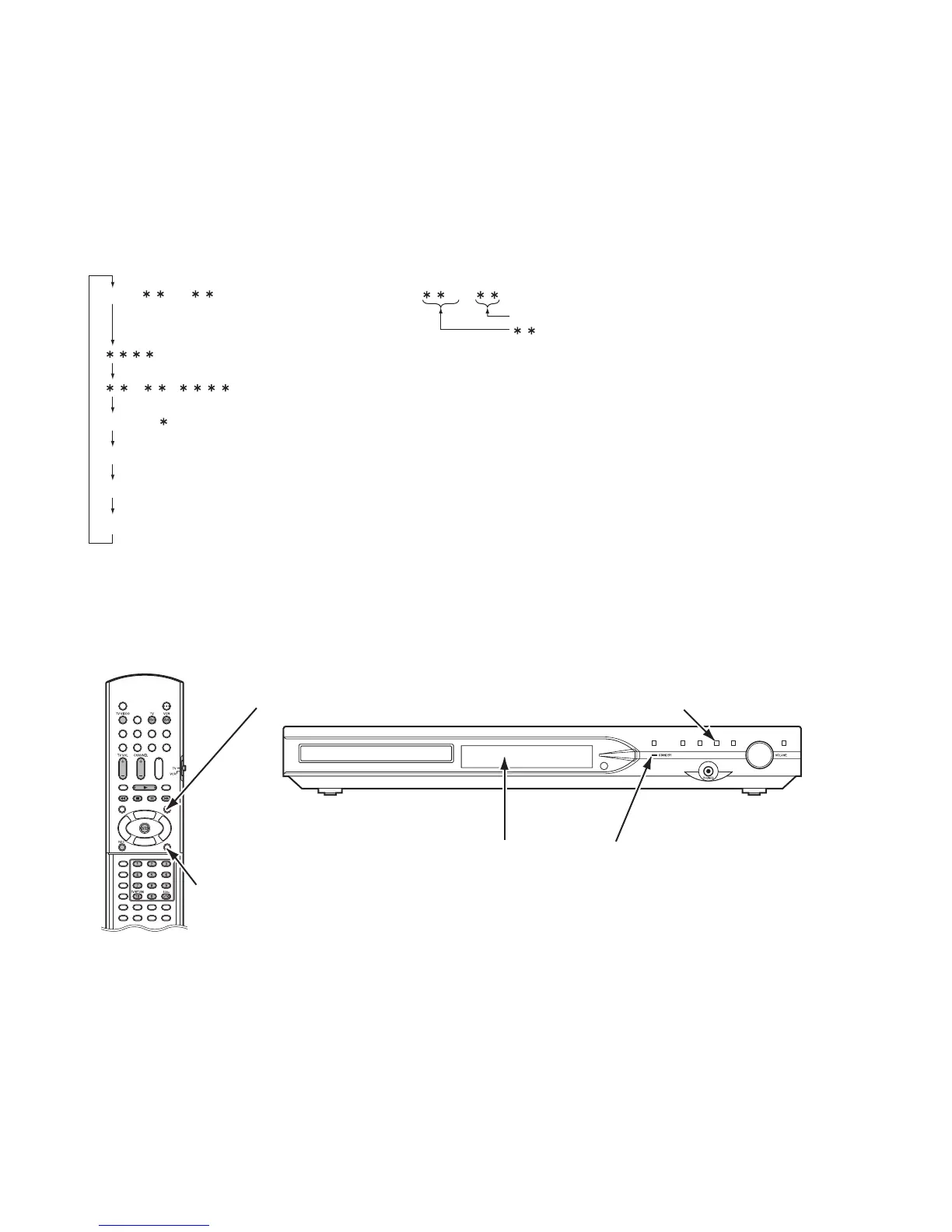

FL display
PLAY key
(for test mode)
STANDBY/ON key
(for test mode)
MENU key
(switch of mode)
ON SCREEN key
(for displaying version of firmware)
