18
GB

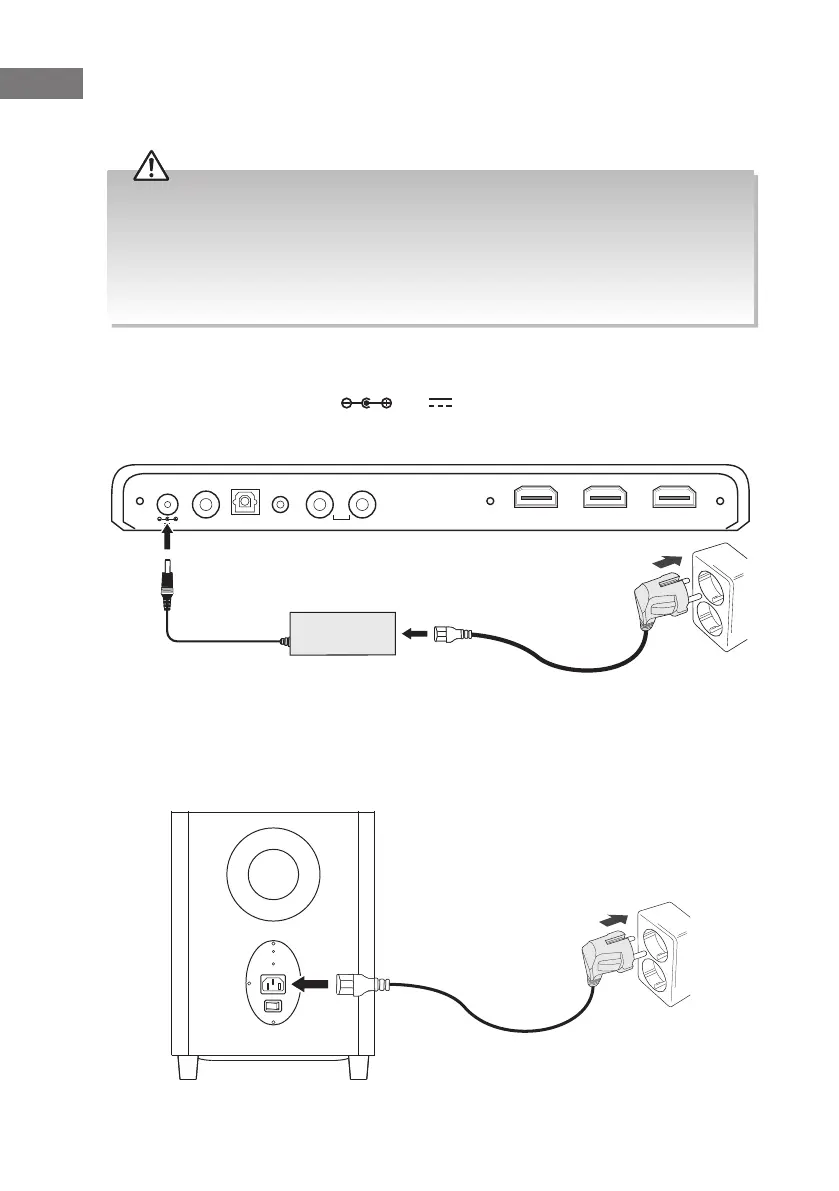

Connecting to the Mains Supply
The soundbar and subwoofer are designed to operate with the supplied mains adapter and
mains cables.
• Connecting the unit to any other power source may damage the unit.
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
• Make sure the mains plug is rmly inserted into the mains socket.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
• The mains adapter and mains cable are designed for this JVC soundbar only. DO NOT use the mains
adapter and mains cable for other purposes.
Soundbar
Unwind the mains adapter cable to its full length. Connect mains cable to the mains
adapter and then connect to the 24V 2.7A socket on the rear of the unit and a
mains socket at the other end. Make sure the mains adapter is fully inserted into the mains
socket.
Subwoofer
Connect the other end of the mains cable to the AC 100-240V socket at the rear of the
subwoofer then connect the mains plug to the mains socket.
COAXIAL OPTICAL AUX 2 AUX 1R L
HDMI1 HDMI2 HDMI OUT
(ARC)
24V 2.7A
To the
mains socket
Rear View of the Unit
AC 100-240V~
PAIR
Power
ON OFF
To the
mains socket
Rear View of the Subwoofer
TH-WL709H_S_IB_170628_will.indd 18 28/6/2017 3:13 PM
