Connection
.
SET
MANUAL
SEE INSTRUCTION
GNDAUX
ONLY
(
E TYPE
)
ISOLATED POWER
(
U TYPE
)
CLASS 2 ONLY
MENU
OUT
VIDEO
ON
CRT
ON
ON
AES OFF
LCD
BLC OFF
D/N AUTO
MONITOR TYPE
DC12V
AC24V
1 2
ADJUST
FOCUS
Connect to AC 220 V-
AC 240 V power supply
(TK-C9201EG/
TK-C9301EG)
Connect to AC 24V or DC 12V
power supply (TK-C9200U/
TK-C9200E/TK-C9300U/TK-C9300E)
(A page 8)
(TK-C9300U/TK-C9300E/
TK-C9301EG)
Monitor
To the terminal of infrared
illumination device etc.
(A page 8)
(A page 7)
(A page 8)

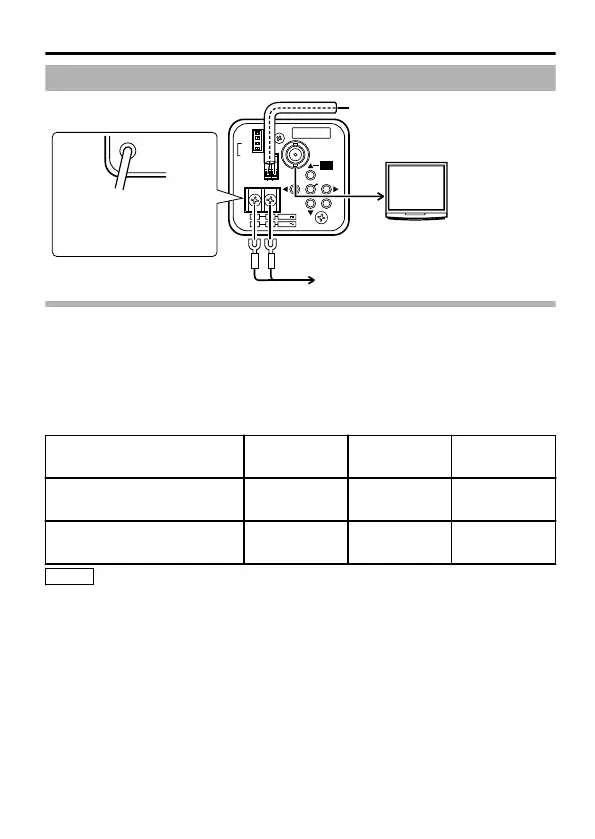

Connecting the Power Supply Cable
When power is supplied to the camera, the [POWER] lamp on the side panel
lights up.
m
AC24 V or DC12 V (TK-C9200U/TK-C9200E/TK-C9300U/TK-C9300E)
To prevent connection errors or a cable disconnection, use a lug plate to connect
to the terminal. The following table shows the connection distances when 2-core
VVF (vinyl-insulated vinyl sheath cables) are used. (Reference value)
Conductor diameter (mm) Φ 1.0 and
more
Φ 1.6 and
more
Φ 2.0 and
more
Maximum connection
distance: DC 12 V
50 m 140 m 220 m
Maximum connection
distance: AC 24 V
130 m 350 m 550 m
Memo
v
If thin cables are used, the resistance of the cables will be high and a
significant voltage drop will occur when the camera is at its maximum
power consumption. Either use a thick cable with low resistance or
place the power supply near to the camera and shorten the length of
the cable to restrict the voltage drop at the rated current of camera to
below 10 %. If voltage drop occurs during operation, the performance
will be unstable.
v
Do not connect an AC 24 V cable to a commercial power supply. If it is
connected by mistake, the internal circuit may be damaged. Sent the
camera to the nearest JVC service center for inspection as the internal
circuit may be damaged.
Connection/Installation
7
To Next Page
