4

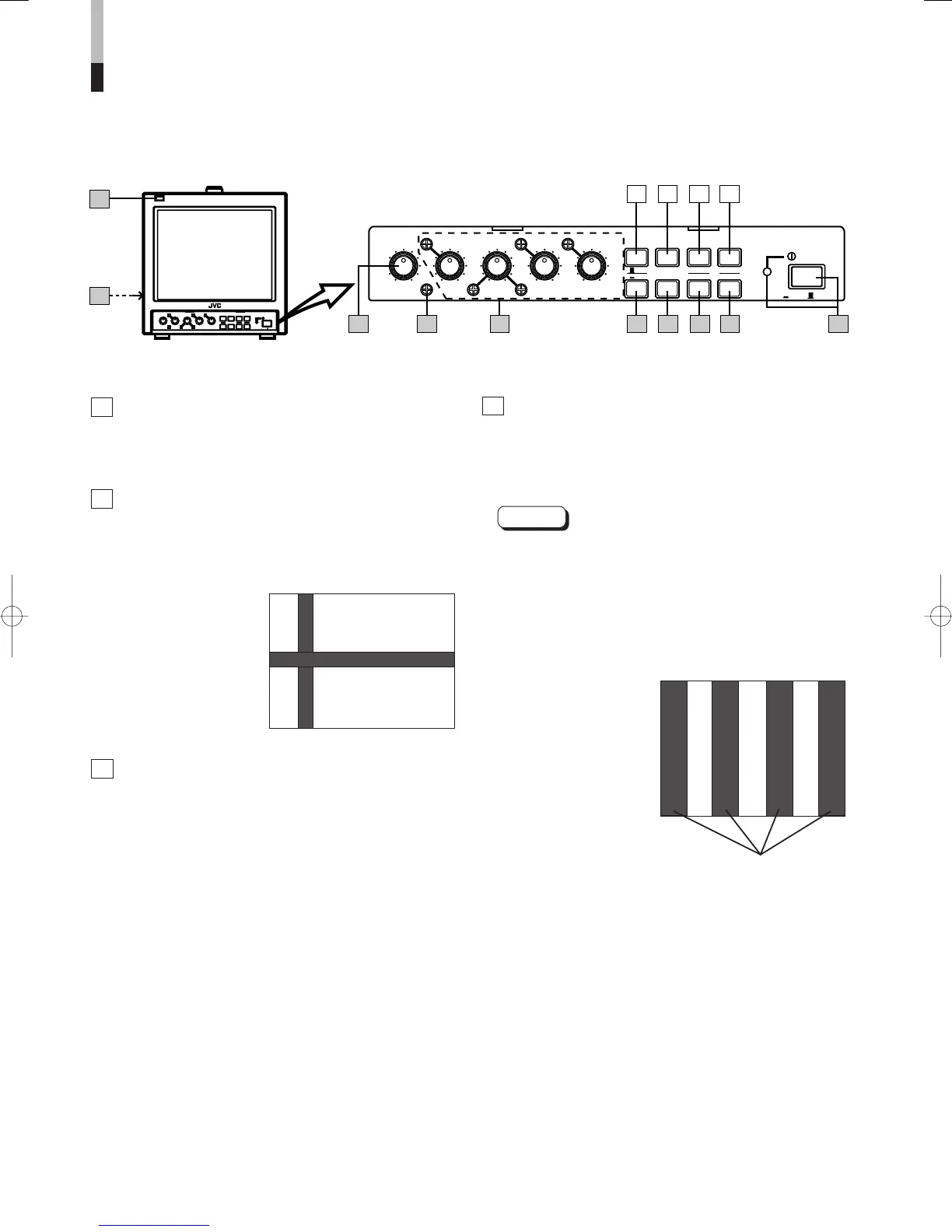

<Front Panel>
CONTROLS AND FEATURES
(cont'd)
POWER
UNDER
SCAN
PULSE
CROSS
COLOR
OFF
BLUE
CHECK
— A
_ B
EXT
SYNC
NTSCPALV.HOLD
NTSC
PAL
4:3
16:9
CONTRASTBRIGHTCHROMAPHASEVOLUME
ON OFF
1
2
11 UNDER SCAN switch
Selects the scanning mode (over scan screen or under
scan screen).
(—) : Over scan screen
(_) : Under scan screen
12 PULSE CROSS switch
Checks the retrace period (sync signal) by delaying the
input signal.
(—) : Normal screen
(_) : Retrace period display screen
13 COLOR OFF switch
Selects the screen mode (color or B/W). Useful when you
want to check the white balance.
(—) : Color screen
(_) : B/W screen
14 BLUE CHECK switch
Selects the screen mode (normal or monochrome blue
screen). Useful when you want to check the chroma and
phase adjustment.
(—) : Normal screen
(_) : Monochrome blue screen
Note:
* The PHASE adjustment is effective only in the NTSC
color system mode.
[How to adjust]
1. Select the monochrome blue screen mode and input
color bar signals in the order of brightness.
2. Adjust the CHROMA and PHASE controls until the
density and brightness of each blue bar are the same.
POWER
UNDER
SCAN
PULSE
CROSS
COLOR
OFF
BLUE
CHECK
A
B
EXT
SYNC
NTSCPALV.HOLD
NTSC
PAL
4:3
16:9
CONTRASTBRIGHTCHROMAPHASEVOLUME
ON OFF
3 4 5 6 7 8 9 10
11 12 13 14
Adjust the blue bars to the same
density and brightness.
