JVC TM-H1950CG User Manual

1. Turn off the Color Video Monitor’s main power and unplug the power cable
from the AC outlet.
2. Unscrew the screws and remove the slot cover from the slot (on the rear side
of the monitor) in which you are going to install the card.
3. Insert the Input Card’s board (green-colored) into the slot, fitting the board into
the guide rails on the top and bottom of the slot.
4. Push the Input Card in so that its front panel touches the monitor’s rear panel.
5. Secure the Input Card by replacing the screws removed in Procedure 2.
VIDEO A
REMOTE
SLOT
VIDEO B
IN OUT
IN
IN
OUT
Y/C

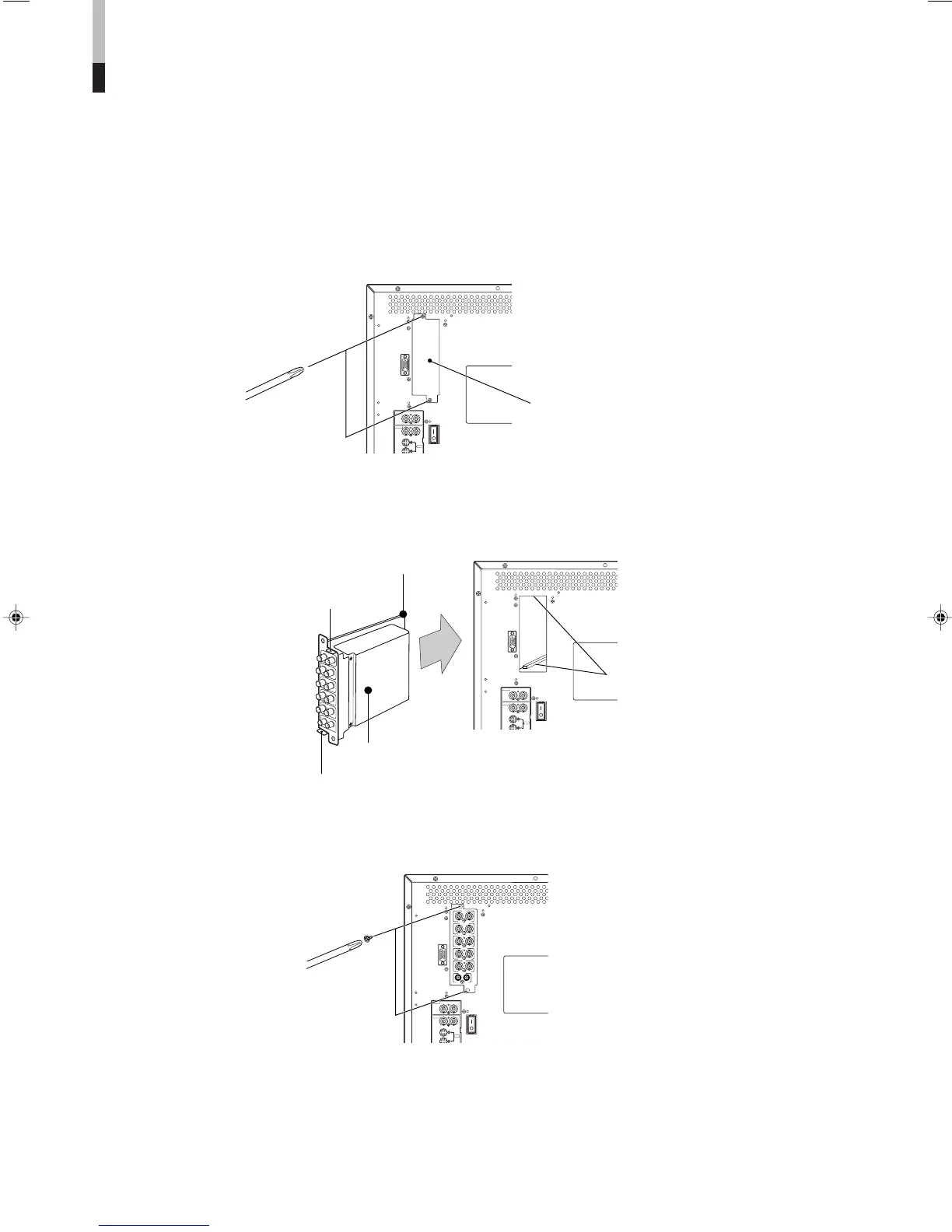

 INSTALLING THE INPUT CARD
Slot cover
Fit the board to
the guide rails.
Rear side of the TM-H1950CG
color video monitor
Knob
Input card (the illustration
shown is of the IF-C01COMG)
Guide rails
Knob
NOTE : Do not touch the terminal connected to the monitor or board pattern.
Do not remove slot covers from the monitor’s slots if they are not in use.
PREPARATION
8
VIDEO A
REMOTE
SLOT
VIDEO B
IN OUT
IN
IN
OUT
Y/C
VIDEO A
REMOTE
SLOT
VIDEO B
IN OUT
IN
IN
OUT
Y/C
LCT1025-002A-H(EN) 02.4.25, 1:31 PM10
