UX-A5 A/B/E/G/GI/EN

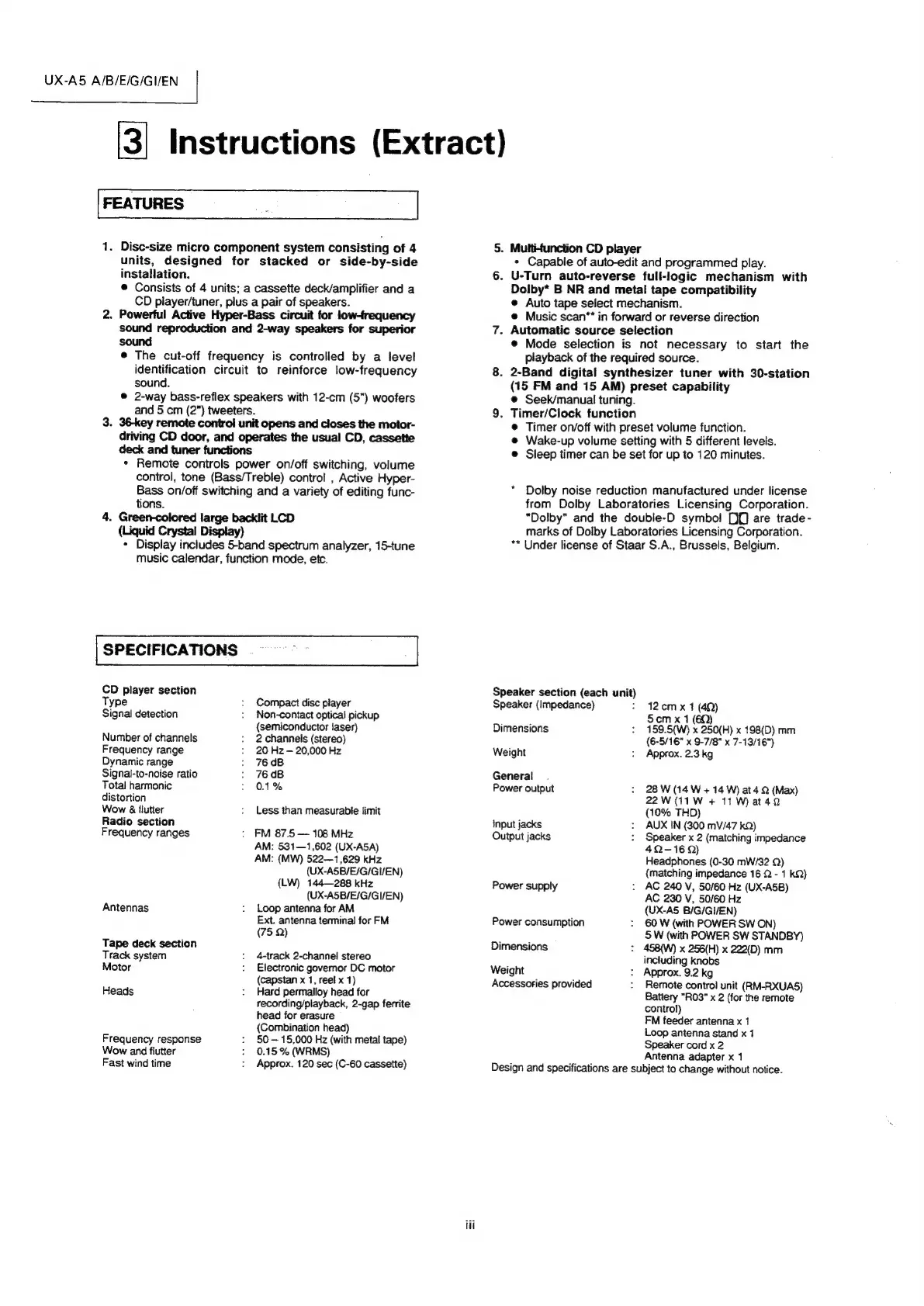

3] Instructions (Extract)
FEATURES
. Disc-size micro component system consisting of 4
units, designed for stacked or side-by-side
installation.
© Consists of 4 units; a cassette deck/amplifier and a
CD player/tuner, plus a pair of speakers.
. Powerful Active Hyper-Bass circuit for low-frequency
sound reproduction and 2-way speakers for superior
sound
@ The cut-off frequency is controlled by a level
identification circuit to reinforce low-frequency
sound.
© 2-way bass-reflex speakers with 12-cm (5") woofers
and 5 cm (2") tweeters.
. 36-key remote control unit opens and closes the motor-
driving CD door, and operates the usual CD, cassette
deck and tuner functions
* Remote controls power on/off switching, volume
control, tone (Bass/Treble) control , Active Hyper-
Bass on/off switching and a variety of editing func-
tions.
. Green-colored large backlit LCD
(Liquid Crystal Display)
* Display includes 5-band spectrum analyzer, 15-tune
music calendar, function mode, etc.
5.
6.
Mutti-function CD player
* Capabie of auto-edit and programmed play.
U-Turn auto-reverse full-logic mechanism with
Dolby* B NR and metal tape compatibility
® Auto tape select mechanism.
@ Music scan“ in forward or reverse direction
Automatic source selection
@ Mode selection is not necessary to start the
playback of the required source.
. 2-Band digital synthesizer tuner with 30-station
(15 FM and 15 AM) preset capability
@ Seek/manual tuning.
. Timer/Clock function
@ Timer on/off with preset volume function.
@ Wake-up volume setting with 5 different levels.
@ Sleep timer can be set for up to 120 minutes.
* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol [DQ are trade-
marks of Dolby Laboratories Licensing Corporation.
** Under license of Staar S.A., Brussels, Belgium.
SPECIFICATIONS .—~
CD player section
Type
Signal detection
Number of channels
Frequency range
Dynamic range
Signal-to-noise ratio
Total harmonic
distortion
Wow & flutter
Radio section
Frequency ranges
Antennas
Tape deck section
Track system
Motor
Heads
Frequency response
Wow and flutter
Fast wind time
Compact disc player
Non-contact optical pickup
(semiconductor laser)
2 channels (stereo)
20 Hz — 20,000 Hz
76 dB
76 dB
0.1 %
Less than measurable limit
FM 87.5 — 108 MHz
AM: 531—1,602 (UX-ASA)
AM: (MW) 522—1,629 kHz
(UX-ASB/E/G/GI/EN)
(LW) 144—288 kHz
(UX-A5B/E/G/GI/EN)
Loop antenna for AM
Ext. antenna terminal for FM
(75 Q)
4-track 2-channel stereo
Electronic governor DC motor
(capstan x 1, reel x 1)
Hard permailoy head for
recording/playback, 2-gap ferrite
head for erasure
{Combination head)
50 — 15,000 Hz (with metal tape)
0.15 % (WRMS)
Approx. 120 sec (C-60 cassette)
Speaker section (each unit)
Speaker (Impedance)
Dimensions
Weight
General
Power output
input jacks
Output jacks
Power supply
Power consumption
Dimensions
Weight
Accessories provided
12 cm x 1 (4Q)
Sem x 1 (6Q)
159.5(W) x 250(H) x 198(D) mm
(6-5/16" x 9-7/8" x 7-13/16")
Approx. 2.3 kg
28 W (14 W + 14 W) at 4.Q (Max)
22 W (11 W + 11 W) at 4a
(10% THD)
AUX IN (300 mV/47 kQ)
Speaker x 2 (matching impedance
42-169)
Headphones (0-30 mW/32 Q)
(matching impedance 16 Q - 1 kQ)
AC 240 V, 50/60 Hz (UX-A5B)
AC 230 V, 50/60 Hz
(UX-AS B/G/GI/EN)
60 W (with POWER SW ON)
5 W (with POWER SW STANDBY)
2 458(W) x 256(H) x 222(D) mm
including knobs
Approx. 9.2 kg
Remote control unit (RM-RXUAS)
Battery “R03” x 2 (for the remote
control)
FM feeder antenna x 1
Loop antenna stand x 1
Speaker cord x 2
Antenna adapter x 1
Design and specifications are subject to change without notice.
