6
Getting Started
Unpacking
After unpacking, check to be sure that you have all the
following items.
The number in parentheses indicates the quantity of each
piece supplied.
• AM (MW) loop antenna (1)
• Remote control (1)
• Batteries (2)
If any item is missing, consult your dealer immediately.

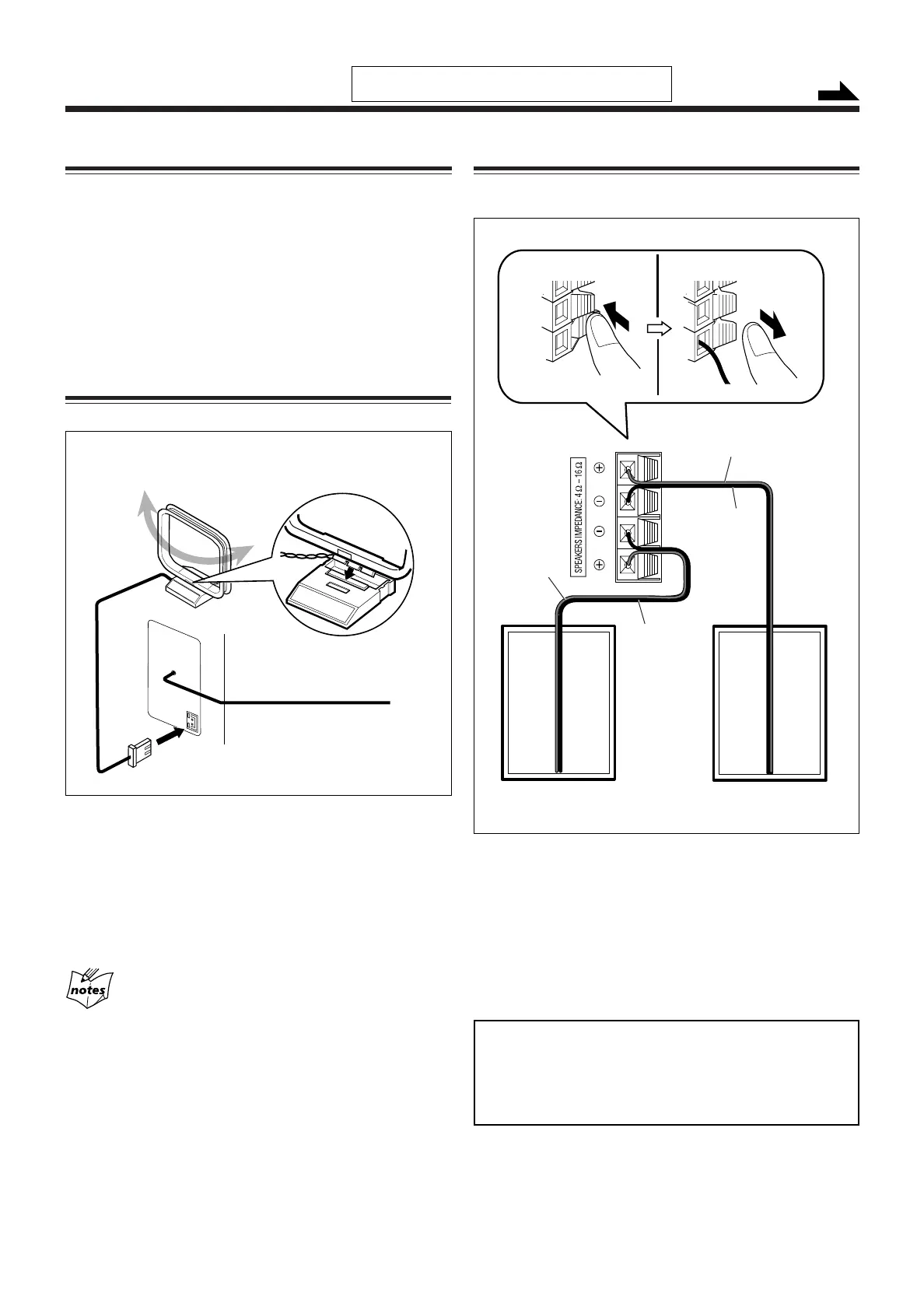

Connecting AM (MW) and FM Antennas
1
Connect the supplied AM (MW) loop
antenna to the AM LOOP terminal.
Place the antenna away from the unit and adjust its
position for the best reception.
2
Adjust the position for the FM antenna for
the best reception.
For better reception of both FM and AM (MW)
• Make sure the antenna conductors do not touch any other
terminals or connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM (MW) loop antenna
(supplied)
FM antenna
2
1
Connecting Speakers
You can connect the speakers using the speaker cords.
1
Hold the clamp of the speaker terminal.
2
Insert the end of the speaker cord into the
terminal.
Match the polarity of the speaker terminals: red cord to
ª and black cord to ·.
3
Release your finger from the clamp.
IMPORTANT:
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
• DO NOT connect more than one speaker to one
speaker terminal.
Red
Red
Black
Black
Speaker
cord
Speaker
cord
Left speaker
Right speaker
Do not connect the AC power cord until all other
connections have been made.
Continued
