Connect device equipment
Hazardous voltages may be present on all output and guard terminals. To prevent electrical
shock that could cause injury or death, never make or break connections to any of the
instruments used for this adjustment while instruments are powered on. Turn off all of the
instruments from the front panel or disconnect the main power cord from the rear of the
instrument before handling cables. Putting the equipment into an output-off state does not
guarantee that the outputs are powered off if a hardware or software fault occurs.
Precautions must be taken to prevent a shock hazard by surrounding the test device and
any unprotected leads (wiring) with double insulation for up to 800 volts depending on the
power supply that you have, Category I.
Make sure that you connect the following devices as indicated in the next figure.

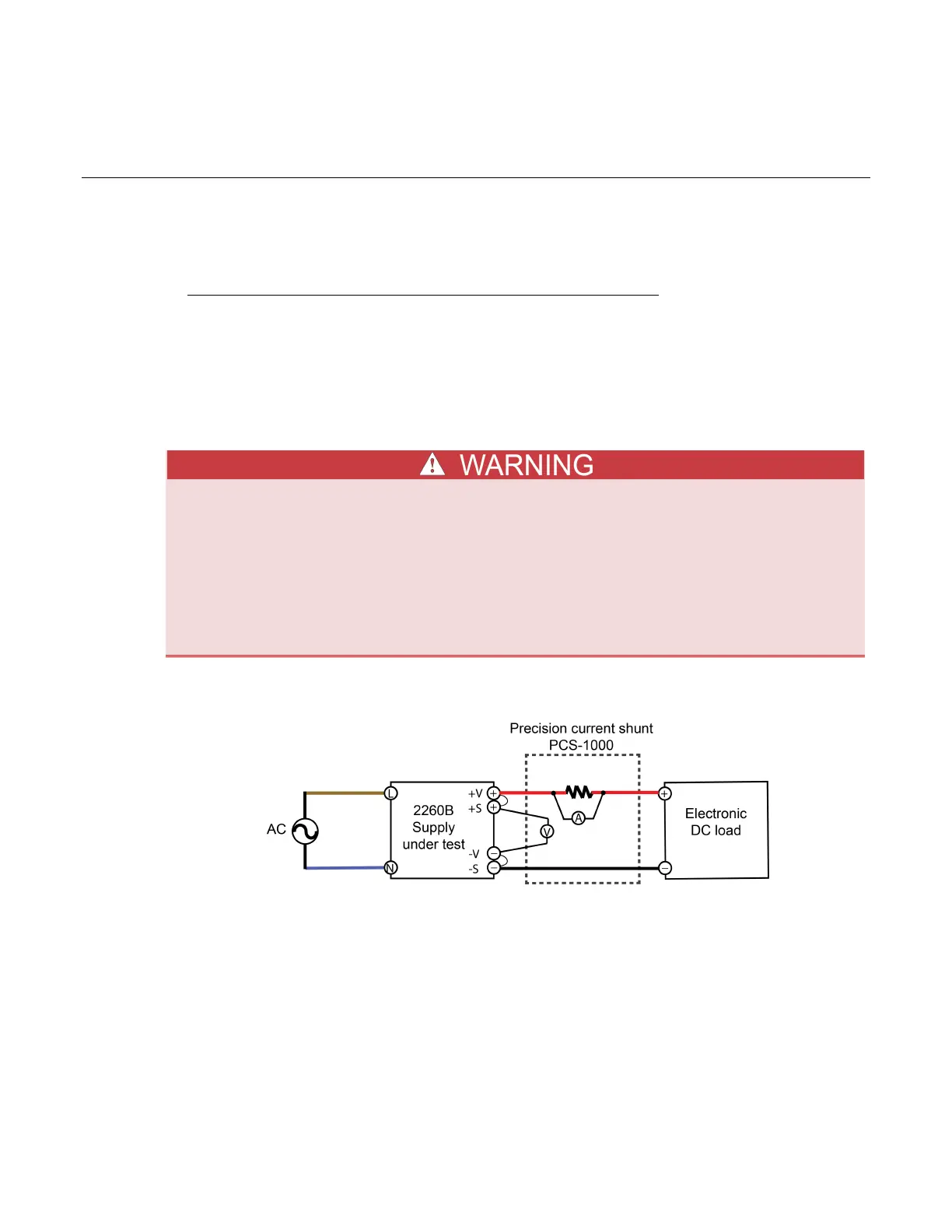

Figure 12: 2260B Constant voltage adjustment devices
