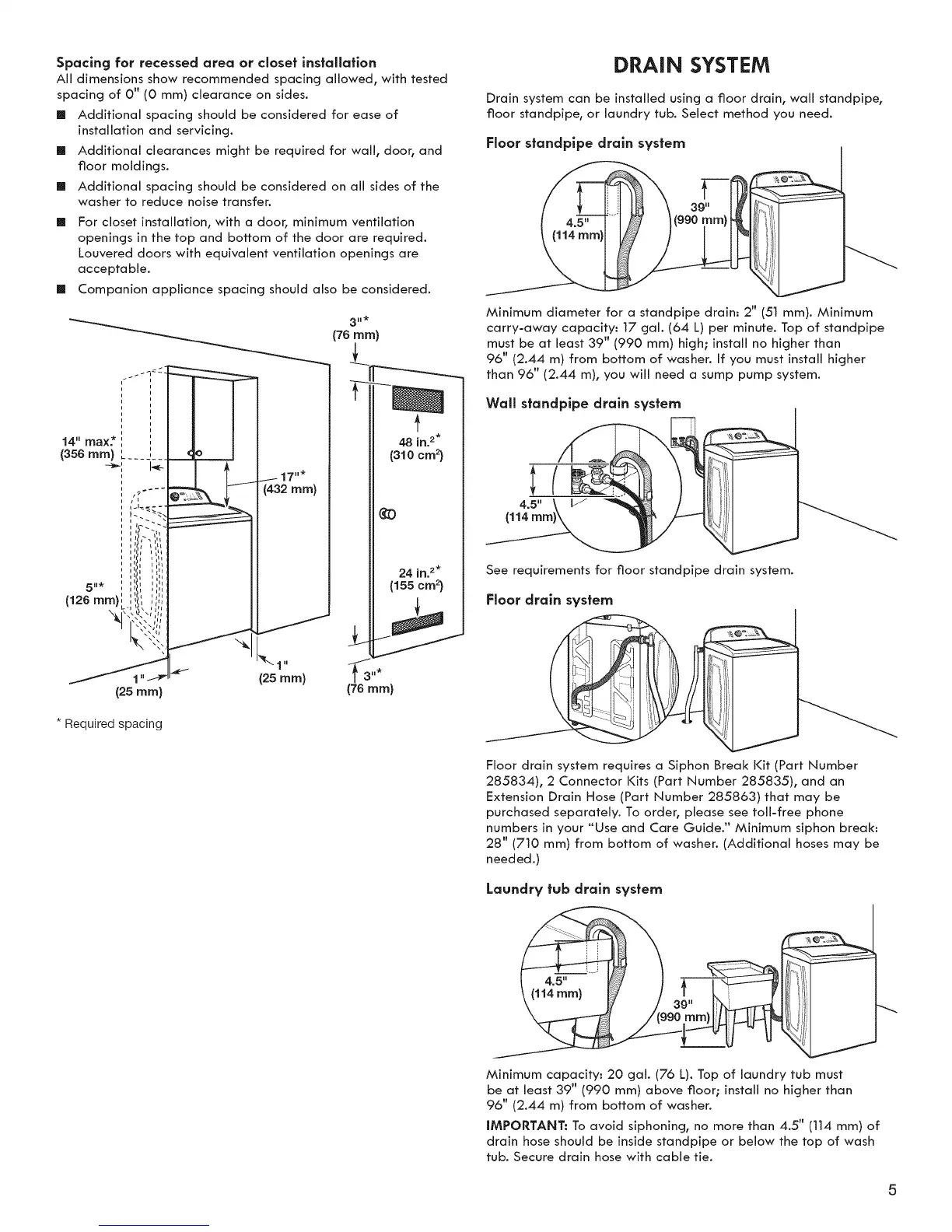

Spacing for recessed area or closet installation
All dimensions show recommended spacing allowed, with tested
spacing of 0" (0 mm) clearance on sides.
[] Additional spacing should be considered for ease of
installation and servicing.
[] Additional clearances might be required for waii, door, and
floor moldings.
[] Additional spacing should be considered on all sides of the
washer to reduce noise transfer.
[] For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
[] Companion appliance spacing should also be considered.
3ran
(76 ram)
n I
I n
I I
n I
I i
I
I I
i
i
14=.max.* ::
(356 turn)
-_ I<-
5"* ::::
i
(126 m , ,,,,
i , \t jh
_\jh
(25 ram)
17"*
(432 mm)
(25 ram)
48 in.2.
(310 cm 2)
24 in. 2.
(15scm_)
(76 ram)
* Required spacing
DRAIN SYSTEM
Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry tub. Select method you need.
Floor standpipe drain system
Minimum diameter for a standpipe drain.. 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe
must be at least 39" (990 ram) high; install no higher than
96" (2.44 m) from bottom of washer. If you must install higher
than 96" (2.44 m), you will need a sump pump system.
Wall standpipe drain system
See requirements for floor standpipe drain system.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. To order, please see toil-free phone
numbers in your "Use and Care Guide." Minimum siphon break:
28" (7]0 mm) from bottom of washer. (Additional hoses may be
needed.)
Laundry tub drain system
Minimum capacity; 20 gal. (76 L). Top of laundry tub must
be at least 39" (990 ram) above floor; install no higher than
96" (2.44 m) from bottom of washer.
IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of
drain hose should be inside standpipe or below the top of wash
tub. Secure drain hose with cable tie.
