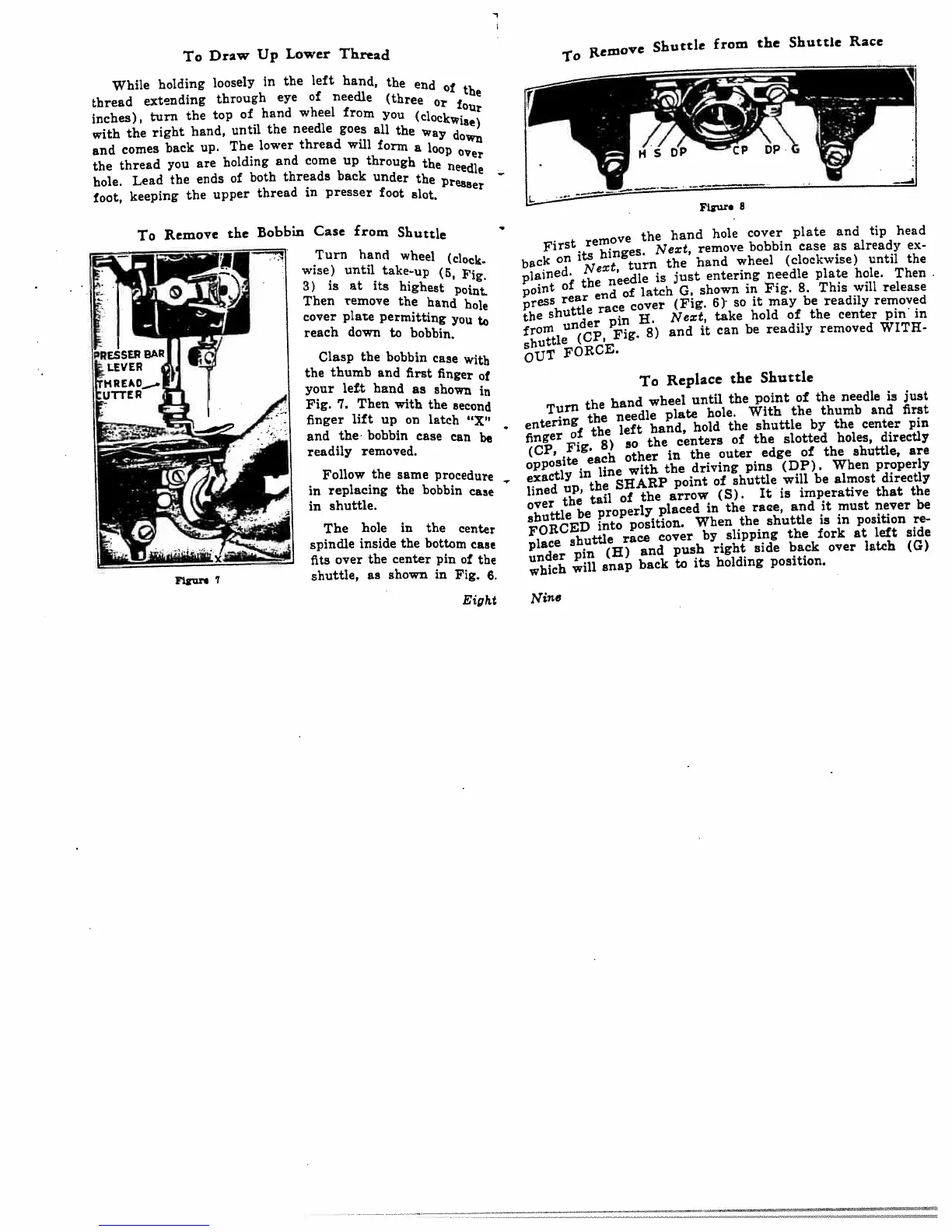

To
Draw
Up
Lower
Thread
Remove
Shuttle
from
the
Shuttle
Race
While
holding
loosely
in
the
left
hand,
the
end
of
thread
extending
through
eye
of
needle
(three
or
inches),
turn
the
top
of
hand
wheel
from
:,OU
OClcwiae)
with
the
right
hand,
until
the
needle
goes
all
the
way
do
and
cornea
back
up.
The
lower
thread
will
fonn
a
loop
°‘er
the
thread
you
are
holding
and
come
up
through
the
nee.fle
hole.
Lead
the
ends
of
both
threads
back
under
the
foot,
keeping
the
upper
thread
in
presser
foot
slot.
To
Remove
the
Bobbin
Case
from
Shuttle
Turn
hand
wheel
(clock.
wise)
until
take-up
(5,
Fig.
3)
is
at
its
highest
point
Then
remove
the
hand
hole
cover
plate
permitting
YOU
to
reach
down
to
bobbin.
Clasp
the
bobbin
case
with
the
thumb
and
first
finger
of
your
left
hand
as
shown
j
Fig.
7.
Then
with
the
second
finger
lift
up
on
latch
“s”
and
the
bobbin
case
can
be
readily
removed.
Follow
the
same
procedure
in
replacing
the
bobbIn
case
in
shuttle.
The
hole
in
the
center
spindle
inside
the
bottom
case
fits
over
the
center
pin
of
the
shuttle,
as
shown
in
Fig.
6.
First
remove
the
hand
hole
cover
plate
and
tip
head
bACk
on
its
hinges.
Next,
remove
bobbin
case
as
already
ex
iained.
Next,
turn
the
hand
wheel
(clockwise)
until
the
point
of
the
nele
is
just
entering
needle
plate
hole.
Then
press
rear
end
of
latch
G,
shown
in
Fig.
8.
This
will
release
the
shuttle
race
cover
(Fig.
6)-
so
it
may
be
readily
removed
from
under
Pin
H.
Next,
take
hold
of
the
center
pin
in
shuttle
iCP,
Fig.
8)
and
it
can
be
readily
removed
WITH
OUT
FORCE.
To
Replace
the
Shuttle
Turn
the
hand
wheel
until
the
point
of
the
needle
is
just
entering
the
needle
plate
hole.
With
the
thumb
and
first
finger
of
the
left
band,
hold
the
shuttle
by
the
center
pin
(CP,
Fig.
8)
so
the
centers
of
the
slotted
holes,
directly
opposite
each
other
in
the
outer
edge
of
the
shuttle,
are
exactly
in
line
with
the
driving
pins
(DP).
When
properly
lined
U,
the
SHARP
point
of
shuttle
will
be
almost
directly
over
the
tail
of
the
arrow
(S).
It
is
imperative
that
the
5
huttle
be
properly
placed
in
the
race,
and
it
must
never
be
FORCED
into
position.
When
the
shuttle
is
in
position
re
place
shuttle
race
cover
by
slipping
the
fork
at
left
side
under
pin
(H)
and
push
right
side
back
over
latch
(G)
which
will
snap
back
to
its
holding
position.
Pigur.
8
gu
Eigkt
Nine
