Kenmore 15358 - Care Ofyour Machine; Replacing the Light Bulb; Cleaning the Feed Dogs

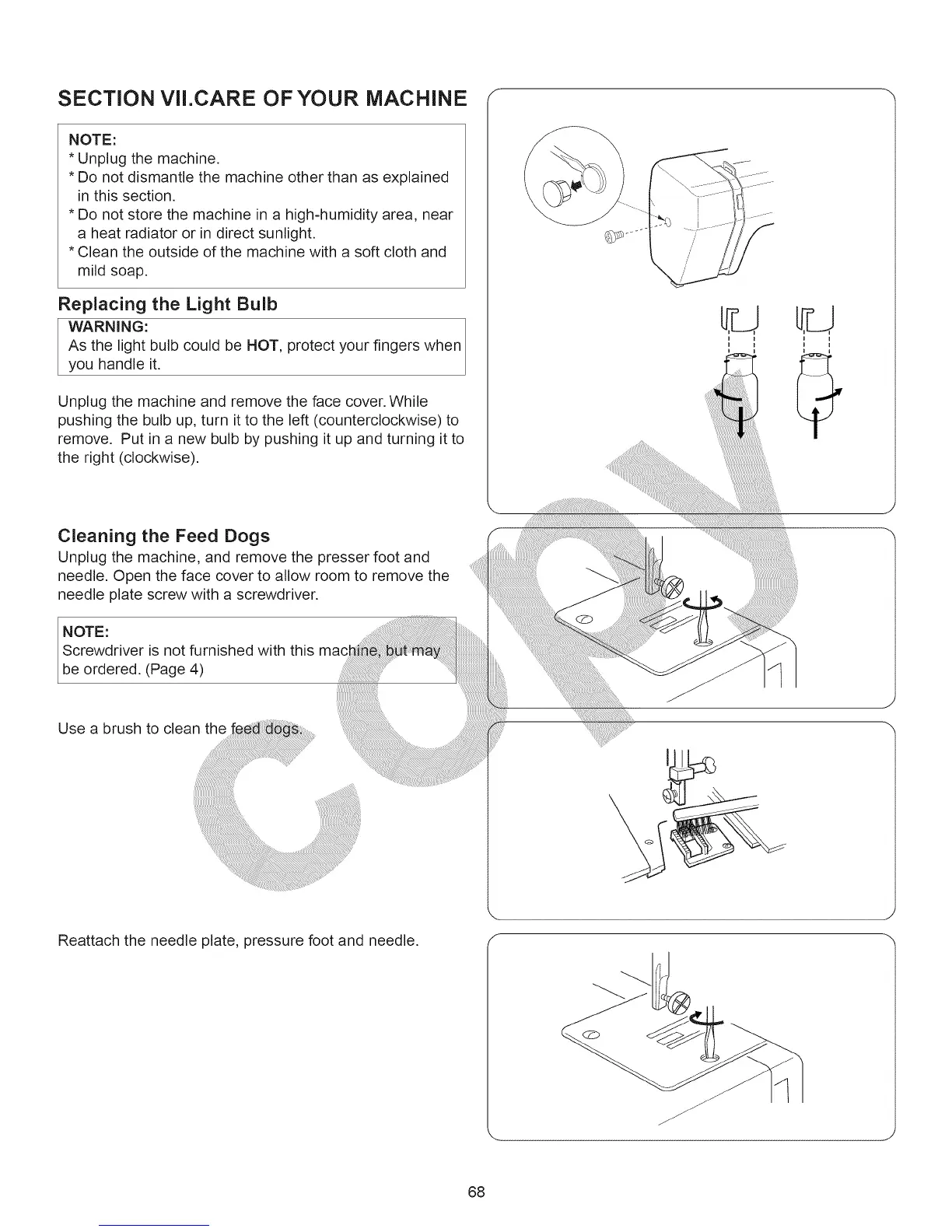

SECTION Vii.CARE OF YOUR MACHINE
NOTE:
* Unplug the machine.
* Do not dismantle the machine other than as explained
in this section.
* Do not store the machine in a high-humidity area, near
a heat radiator or in direct sunlight.
* Clean the outside of the machine with a soft cloth and
mild soap.
Replacing the Light Bulb
WARNING:
As the light bulb could be NOT, protect your fingers when
you handle it.
Unplug the machine and remove the face cover. While
pushing the bulb up, turn it to the left (counterclockwise) to
remove. Put in a new bulb by pushing it up and turning it to
the right (clockwise).
Cleaning the Feed Dogs
Unplug the machine, and remove the presser foot and
needle. Open the face cover to allow room to remove the
needle plate screw with a screwdriver.
NOTE:
Screwdriver is not furnished with this mac
be ordered. (Page 4)
Use a brush to clean the
Reattach the needle plate, pressure foot and needle.
!_!i_!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!!_!_!:::
68
