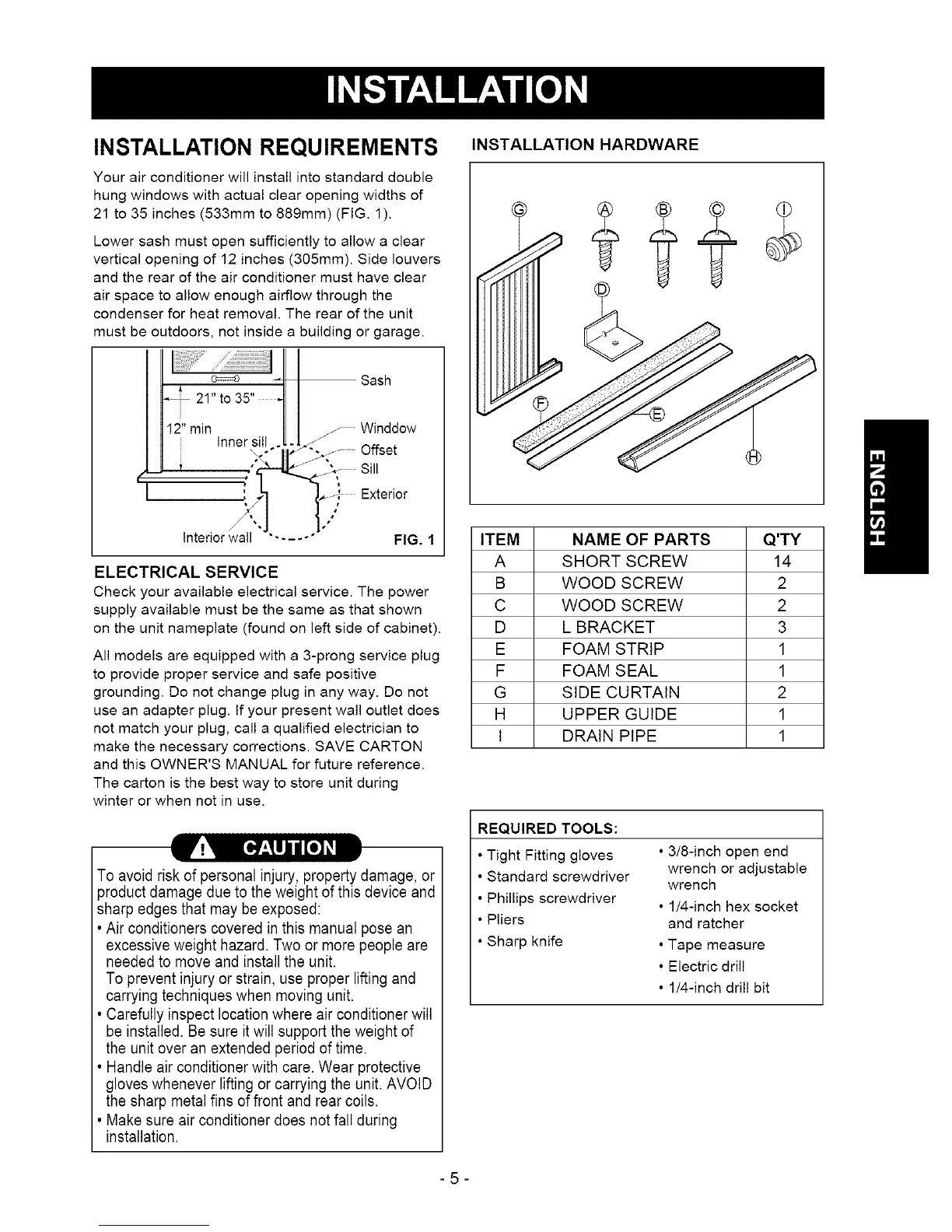

INSTALLATION REQUIREMENTS
Your air conditioner will install into standard double
hung windows with actual clear opening widths of
21 to 35 inches (533mm to 889mm) (FIG. 1).
Lower sash must open sufficiently to allow a clear
vertical opening of 12 inches (305ram). Side louvers
and the rear of the air conditioner must have clear
air space to allow enough airflow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
f
I
o:=:o
* 21" 35" -
to
!2" Tin
InneIsill_
interior wall
Sash
z_- Winddow
j_
"-,_ ...........Offset
"" .... " FIG. I
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown
on the unit nameplate (found on left side of cabinet).
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electrician to
make the necessary corrections. SAVE CARTON
and this OWNER'S MANUAL for future reference.
The carton is the best way to store unit during
winter or when not in use.
To avoidriskof personalinjury, propertydamage,or
)roduct damage due to the weightof this device and
sharpedges that may be exposed:
• Air conditioners coveredin this manual posean
excessiveweight hazard. Twoor morepeopleare
neededto move and installthe unit.
To preventinjury or strain, use proper liftingand
carryingtechniqueswhen moving unit.
• Carefullyinspect locationwhere air conditionerwill
be installed. Be sure it will supportthe weight of
the unitover an extendedperiodof time.
• Handleair conditionerwith care.Wear protective
gloveswhenever liftingor carryingthe unit.AVOID
the sharpmetalfins of front and rear coils.
• Makesureair conditionerdoes notfall during
installation.
INSTALLATION HARDWARE
ITEM NAME OF PARTS Q'TY
A SHORT SCREW 14
B WOOD SCREW 2
C WOOD SCREW 2
D L BRACKET 3
E FOAM STRIP 1
F FOAM SEAL 1
G SIDE CURTAIN 2
H UPPER GUIDE 1
I DRAIN PIPE 1
REQUIREDTOOLS:
• Tight Fitting gloves
• Standard screwdriver
• Phillips screwdriver
• Pliers
• Sharp knife
• 3/8-inch open end
wrench or adjustable
wrench
• 1/4-inch hex socket
and ratcher
• Tape measure
• Electric drill
• 1/4-inch drill bit
-5-
