OTHER THINGS TO KNOW
SECTION 4
18

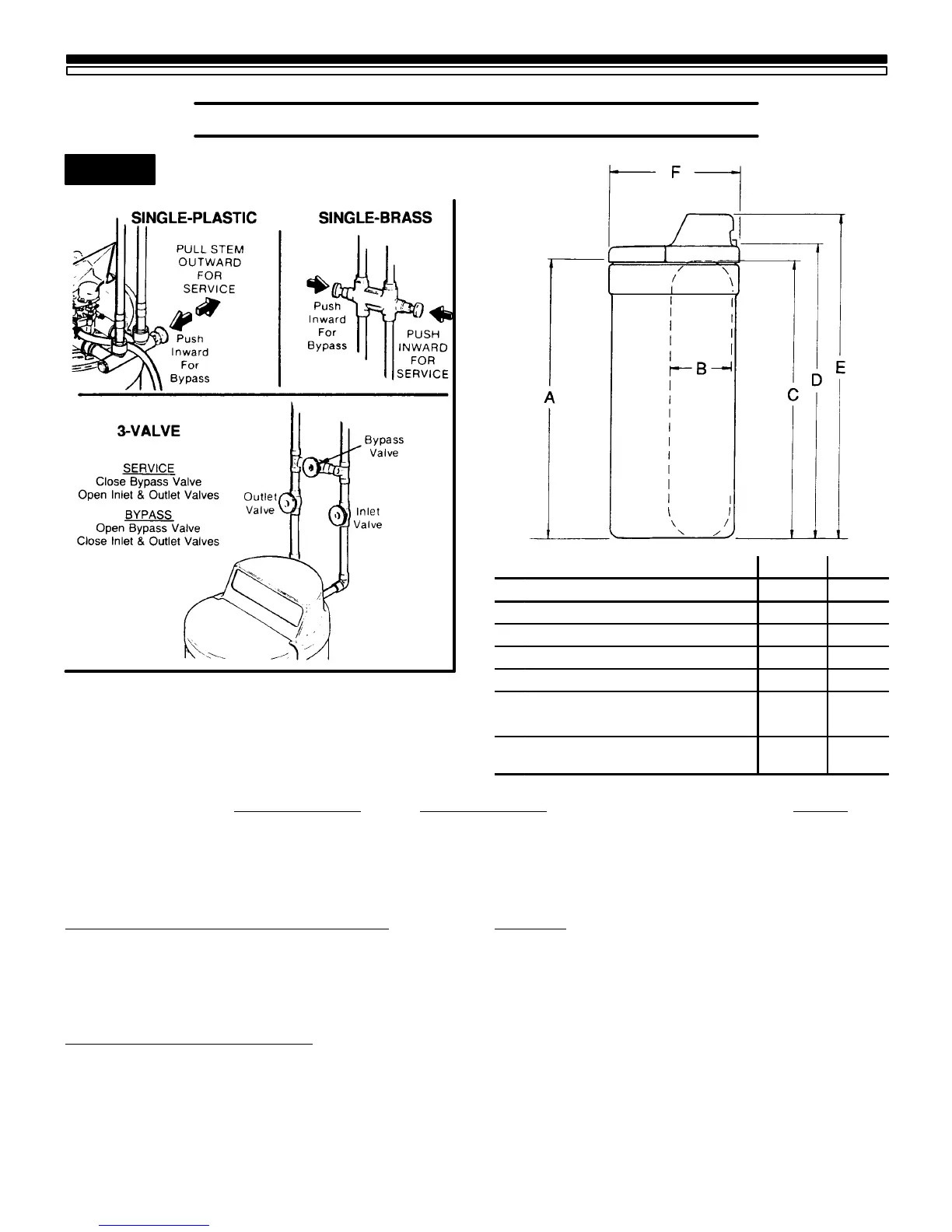

4A. DIMENSIONS/SPECIFICATIONS
FIG. 12
BYPASS VALVES
INCHES CM
A Salt Tank Height 40-1/4 102.2
B Resin Tank Diameter (nominal) 8 20.3
C Resin Tank Height (nominal) 40 101.6
D Inlet-Outlet Height 41-1/2 105.4
E Overall Height 46 116.8
F
1
Length 19-1/2 49.5
F
2
Width 16-1/2 41.9
— Distance between inlet-outlet
center lines
3-3/8 8.6
MODEL NO. 625.3484400 AND 625.3484500 TIMER SR CODE SR21
NOTE:
! " !
" " #
WATER SUPPLY TO WATER SOFTENER
MINIMUM WATER SYSTEM FLOW (gpm) 3
MINIMUM–MAXIMUM WATER PRESSURE (psi) 20-120
MAXIMUM WATER TEMPERATURE (°F) 120
MAXIMUM WATER HARDNESS (gpg) 90*
MAXMUM “CLEAR WATER” IRON (ppm) 5
SALT FOR WATER SOFTENER
TYPE OF SALT NEEDED Nugget/Pellet
ALTERNATE TYPE OF SALT Pure, evaporated, compacted
water softener salt
STORAGE CAPACITY (pounds) 200
*Do not exceed this number when setting hardness in step 2,
page 7. The maximum setting available is 95.
OTHERS
TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity
AMOUNT OF RESIN (cu.ft.) .77
REGENERATION (RECHARGE) CYCLE TIME (min.)
FILL 9-21
BRINING/BRINE RINSE 48-71
BACKWASH 7
FAST RINSE 3
TOTAL REGENERATION TIME 73-108
gpm = gallons per minute psi = pounds per square inch
gpg = grains per gallon ppm = parts per million
