Do not remove spacers (if equipped) an the side walls and/or an the back of the
built-ln oven. These spacers center the oven in the space provided. The oven must be centered to
prevent excess heat buildup that may result in heat damage or fire.
B
Door Open
J
1" (2.5cm)
Min.
48 5/8" H
(123.5cm)
11½"
(29.2
_- Spacer
Hole for
Cable
2" (5 cm) Wide Wood
Spacer if Needed

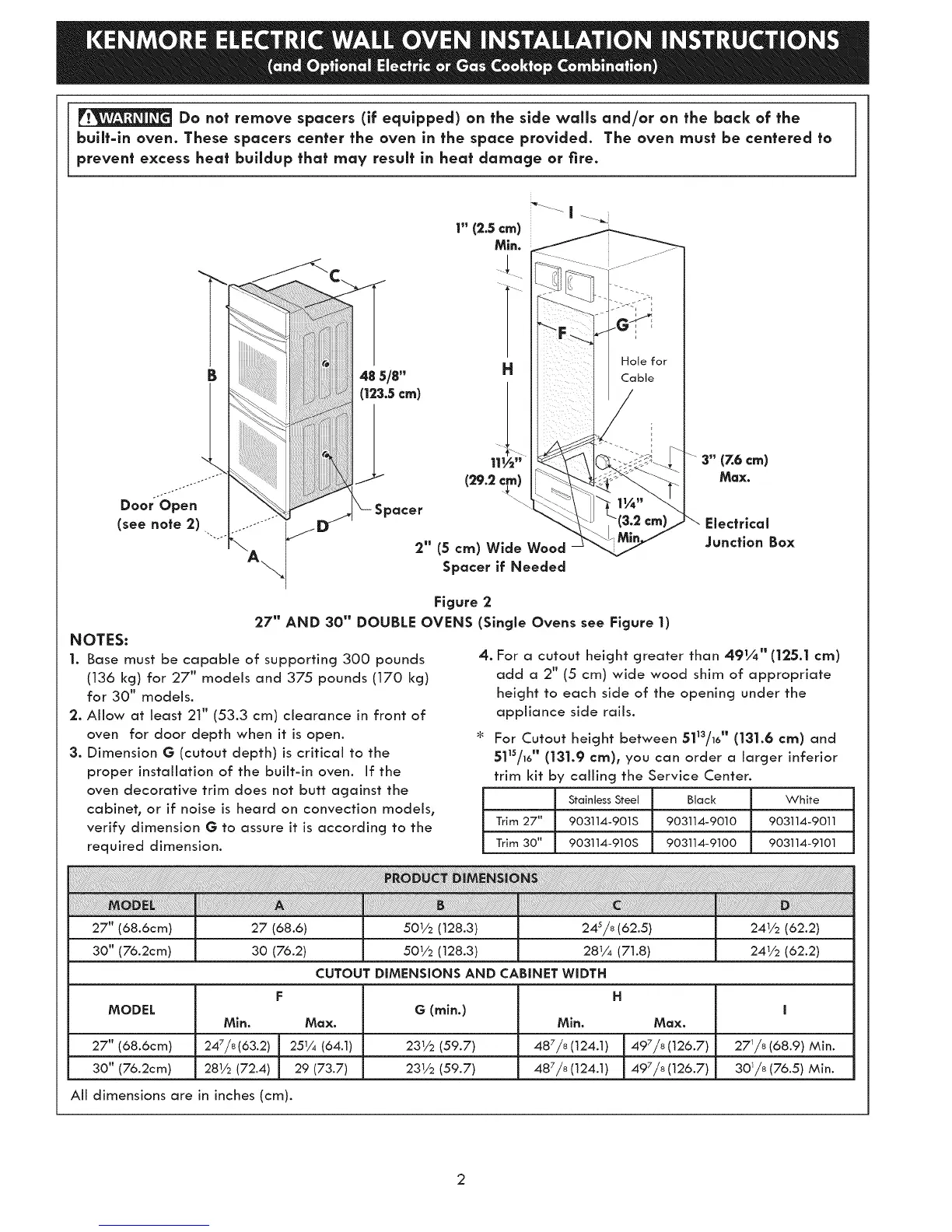

Figure 2
27" AND 30" DOUBLE OVENS (Single Ovens see Figure 1)
NOTES:
I. Base must be capabie of supporting 300 pounds
(136 kg) for 27" models and 375 pounds (170 kg)
for 30" models.
2. Allow at least 21" (53.3 cm) clearance in front of
oven for door depth when it is open.
3. Dimension G (cutout depth) is critical to the
proper installation of the built-in oven. If the
oven decorative trim does not butt against the
cabinet, or if noise is heard on convection models,
verify dimension G to assure it is according to the
required dimension.
Electrlcal
Junction Box
.
For a cutout height greater than 491,,_'' (125.1 cm)
add a 2" (5 cm) wide wood shim of appropriate
height to each side of the opening under the
appliance side rails.
For Cutout height between 5113/16"(131.6 cm) and
51_s/16"(131.9 cm), you can order a larger inferior
trim kit by calling the Service Center.
Stainless Steel Black White
Trim 27" 903114-901S 903114-9010 903114-9011
Trim 30" 903114-910S 903114-9100 903114-9101
27" (68.6crn) 27 (68.6) 501/2 (128.3) 24s/_ (62.5) 24V2 (62.2)
30" (76.2cm) 30 (76.2) 50V2 (128.3) 28V4 (71.8) 241/'2(62.2)
CUTOUT DIMENSIONS AND CABINET WIDTH
F H
MODEL G (rain.) I
Min. Max. Min. Max.
27" (68.6crn) 247/_ (63.2) 25V4 (64.1) 231/2 (59.7) 487/_ (124.1) 497/_ (126.7) 27_/_ (68.9) Min.
30" (76.2crn) 281/2(72.4) 29 (73.7) 231/2 (59.7) 487/_ (124.1) 497/_ (126.7) 30_/_ (76.5) Min.
All dimensions are _ninches (cm).
