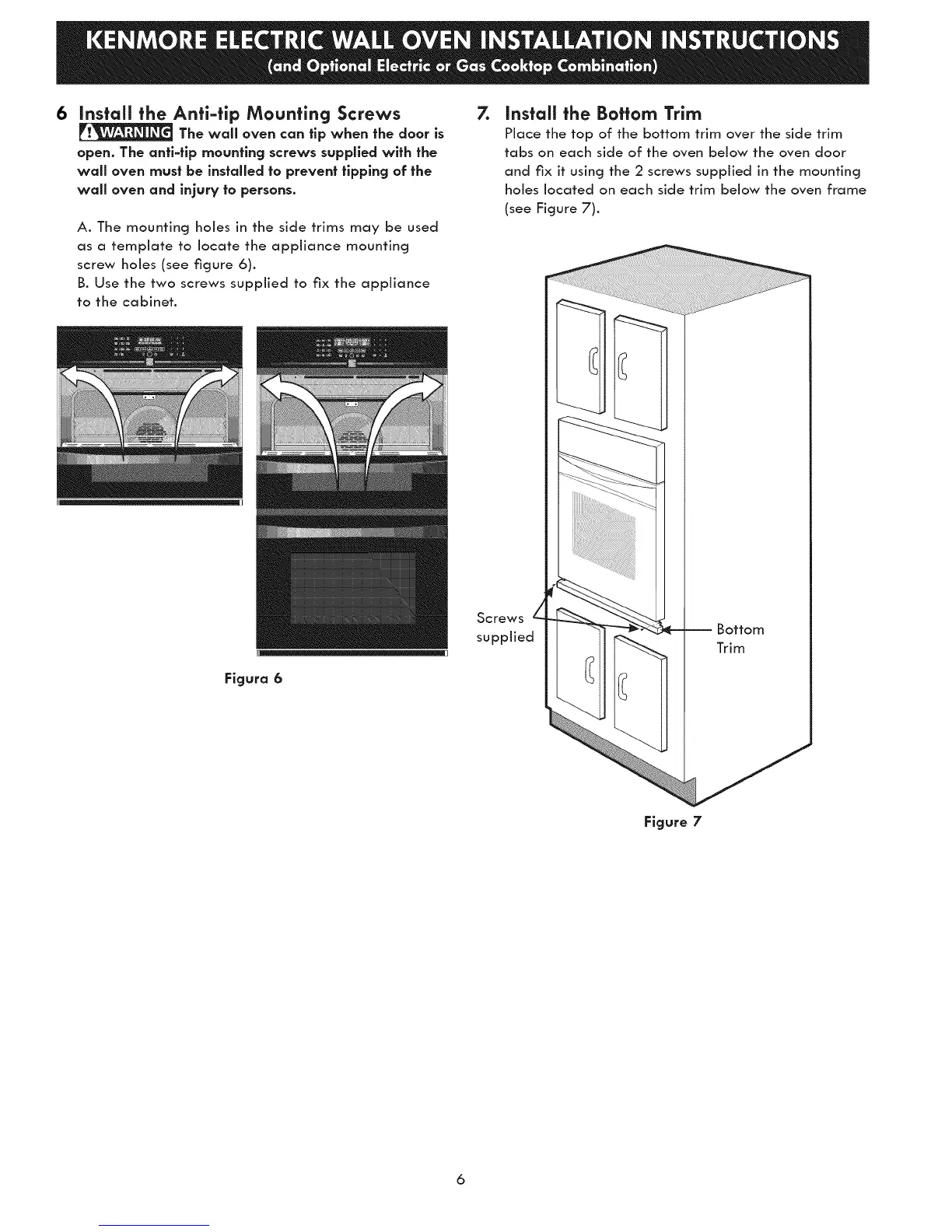

6 Install the Anti-tip Mounting Screws Z
The wall oven can tip when the door is
open. The antl-tlp mounting screws supplied with the
wall oven must be installed to prevent tipping of the
wall oven and injuw to persons.
A. The mounting holes in the side trims may be used
as a template to locate the appliance mounting
screw holes (see figure 6).
B. Use the two screws supplied to fix the appliance
to the cabinet.
Figura 6
Install the Bottom Trim
Place the top of the bottom trim over the side trim
tabs on each side of the oven below the oven door
and fix it using the 2 screws supplied in the mounting
holes located on each side trim below the oven frame
(see Figure 7).
Screws
supplied
u Bottom
Trim
Figure 7
6
