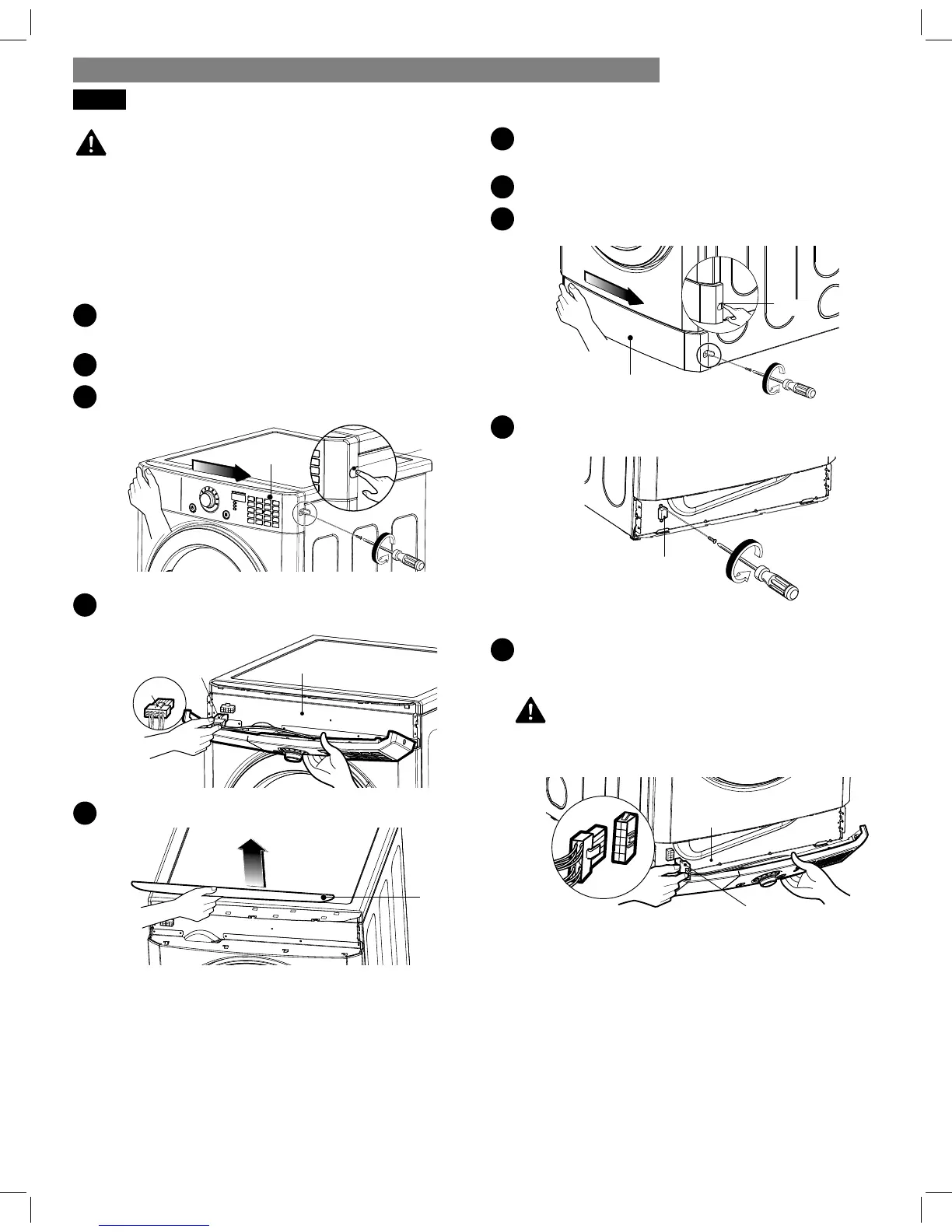

MOVING THE CONTROL PANEL
Disassemble
1
Push to open the cap on the right side of the control
panel.
2
Remove the screw under the cap and set it aside.
3
Slide the control panel about an inch to the right to free it
from the clips.
Control Panel
Cap
n
o
p
4
Drop the front of the panel down and disconnect
the wire harness. Remove the panel and set it aside.
Wire harness
Hook
Frame
5
Lift the top plate slightly to remove it.
Plate
6
Push to open the cap on the right side of the lower
cover.
7
Remove the screw under the cap and set it aside.
8
Slide the lower cover about an inch to the right to
free it from the clips. Set cover aside.
Lower cover
Cap
s
t
u
9
Remove the screws holding the safety cover in place
and set the screws and the cover aside.
Safety Cover
Assemble
1
Connect the wire harness on the control panel.
Make sure to push the connector until the hook clicks
into place.
Wire harness
Frame
WARNING:
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Be careful of the sharp edge on the frame to avoid
injury.
• Failure to follow these instructions can result in death
or electric shock.
CAUTION:
• If the wire harness is not connected properly, the
dryer may not operate.
