Always follow all safety precautions when
cleaning and servicing the Power-Mate®.
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before
servicing or cleaning the unit.
Failure to do so could result in elec-
trical shock or personal injury from
cleaner suddenly starting.
tiiiii,iilli; i!!££ i£i iiii ii i£i i £ !!ii!!!i

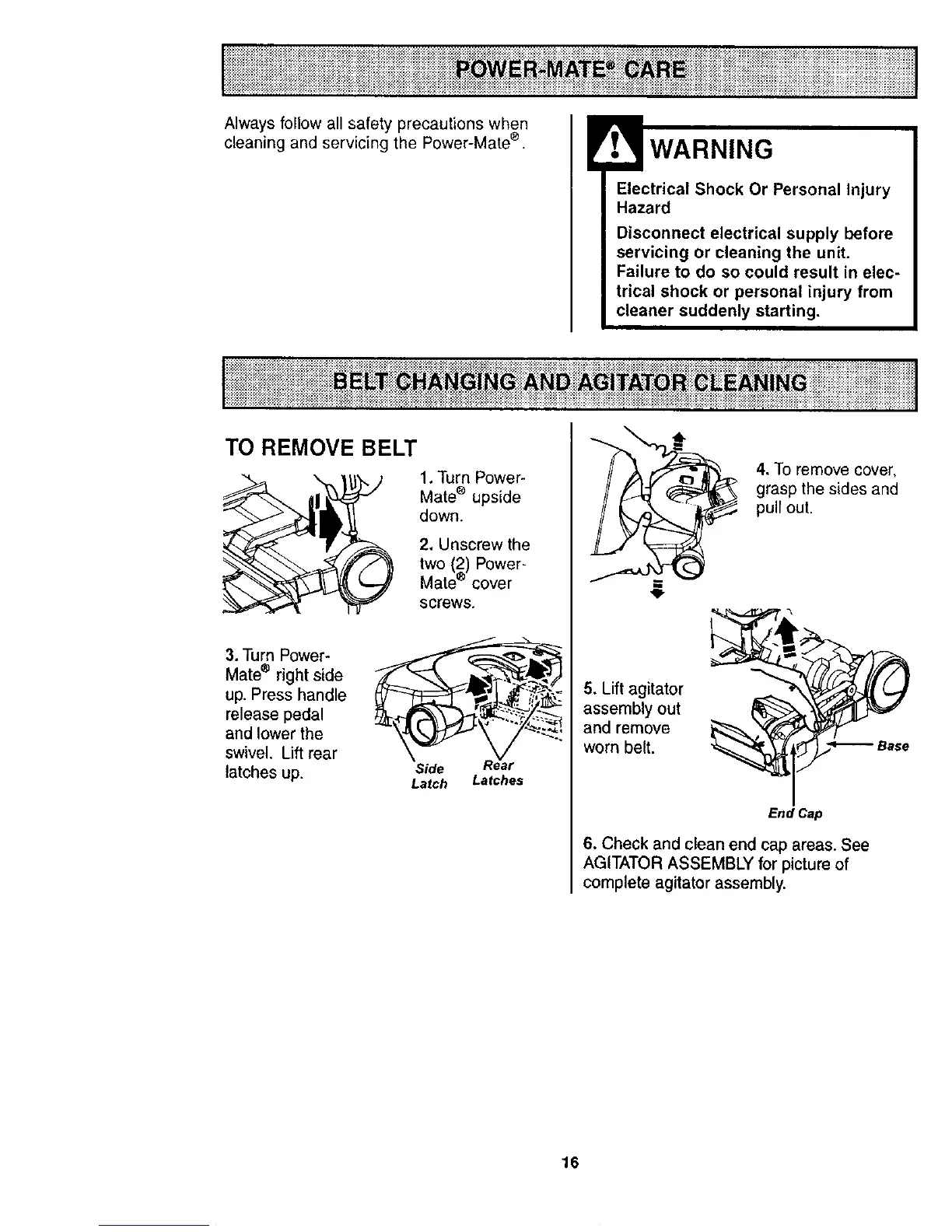

TO REMOVE BELT
1. Turn Power-
Mate e upside
down.
2, Unscrew the
two (2) Power-
Mate ® cover
screws.
3. Turn Power-
Mate ® right side
up. Press handle
release pedal
and lower the
swivel. Lift rear
latches up.
Side
Latch Latches
5. Lift agitator
assembly out
and remove
worn belt.
4, To remove cover,
grasp the sides and
pull out.
End Cap
6, Check and clean end cap areas. See
AGITATOR ASSEMBLY for picture of
complete agitator assembly.
16
