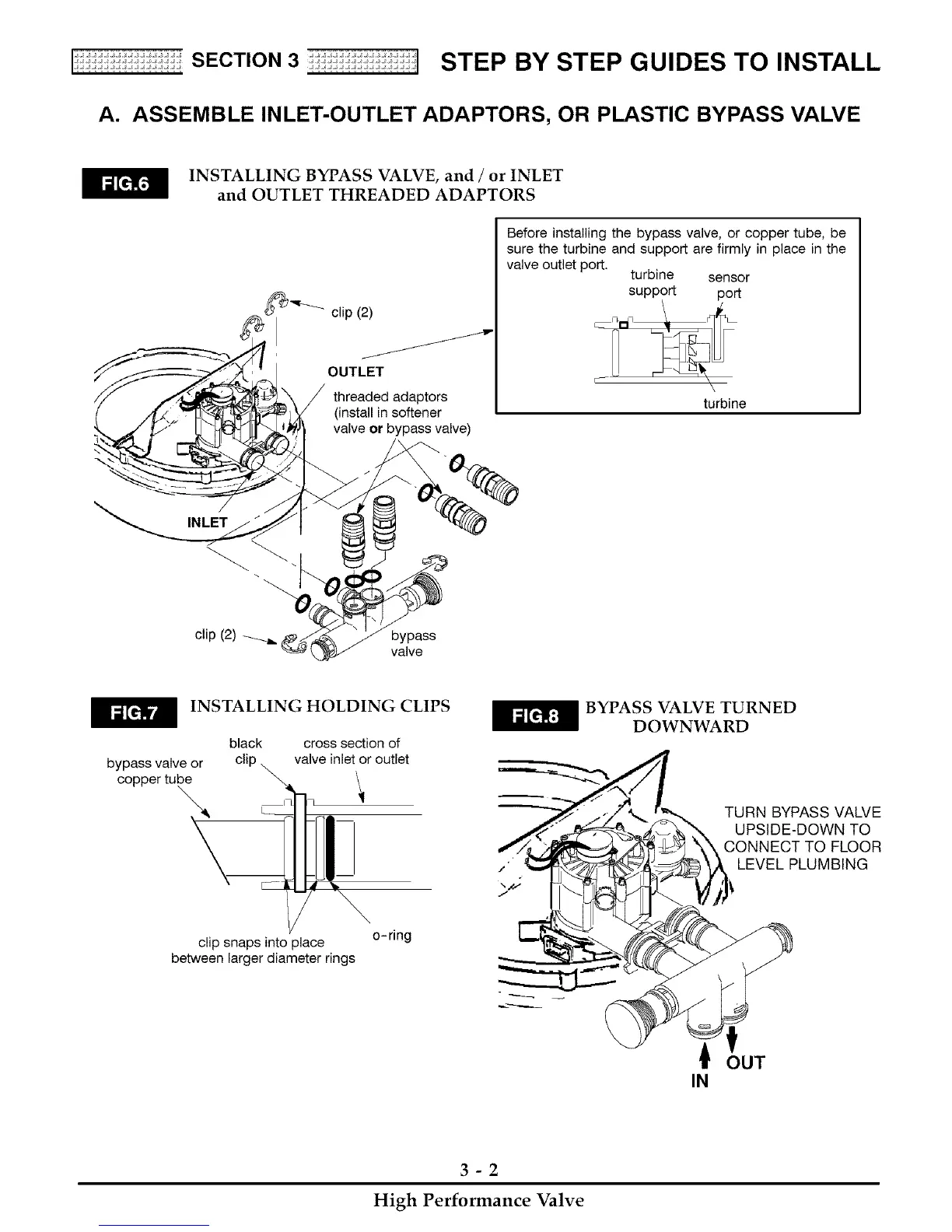

SECTION3 STEP BY STEP GUIDES TO INSTALL
A. ASSEMBLE INLET-OUTLET ADAPTORS, OR PLASTIC BYPASS VALVE
INSTALLING BYPASS VALVE, and / or INLET
and OUTLET THREADED ADAPTORS
OUTLET
threaded adaptors
(install in softener
valve or bypass valve)
Before installing the bypass valve, or copper tube, be
sure the turbine and support are firmly in place in the
valve outlet port. turbine sensor
support port
r_
\
turbine
clip (2) _ bypass
valve
INSTALLING HOLDING CLIPS
bypass valve or
copper tube
\
black cross section of
valve inlet or outlet
BYPASS VALVE TURNED
DOWNWARD
TURN BYPASS VALVE
UPSIDE-DOWN TO
CONNECT TO FLOOR
LEVEL PLUMBING
clip snaps into place o-ring
between larger diameter rings
OUT
IN
3-2
High Performance Valve
