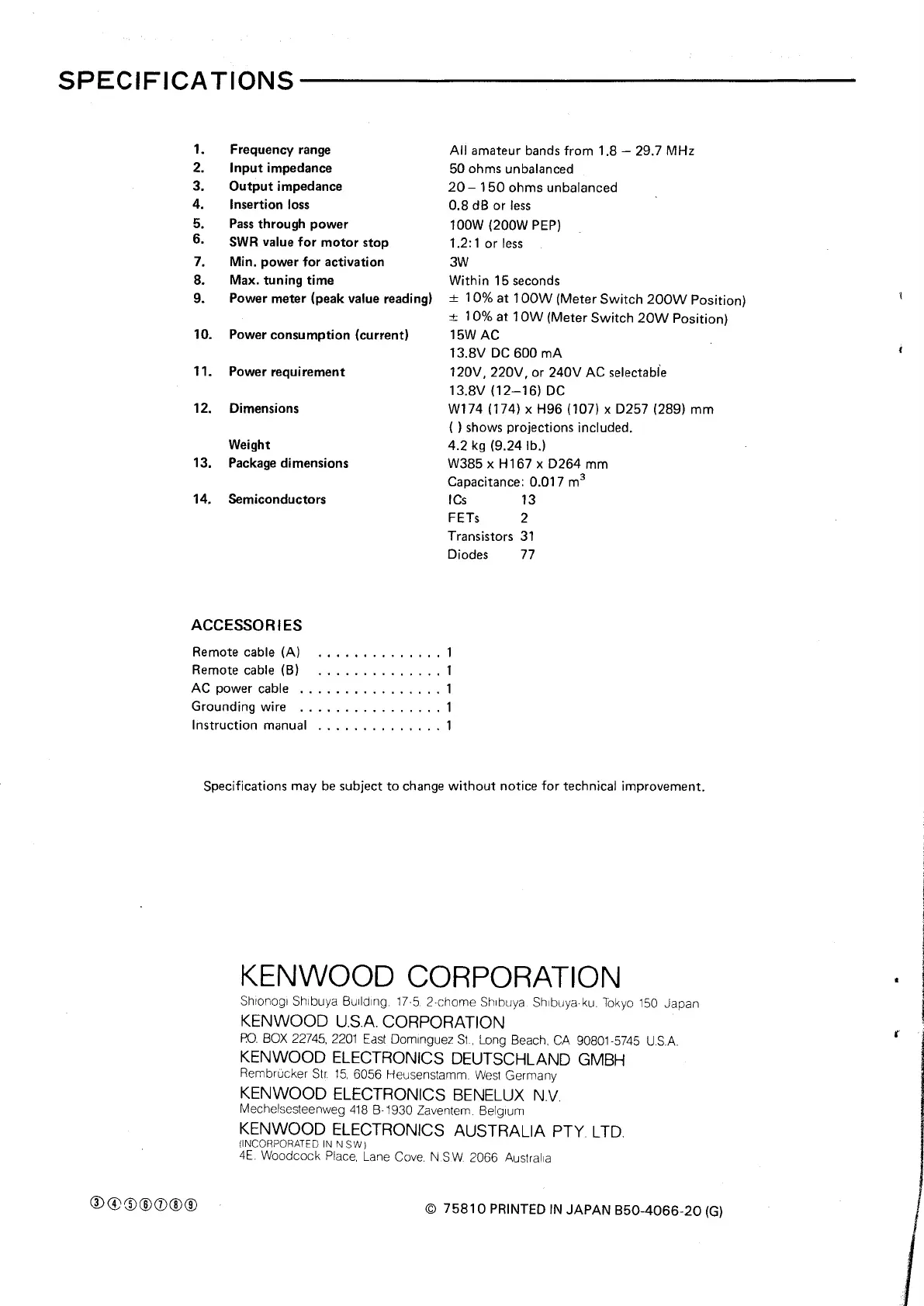

SPECIFICATIONS
Frequency range
Input impedance
Output impedance
Insertion loss
Pass through power
SWR value for motor stop
Min. power for activation
Max. tuning time
Power meter (peak value reading)
POON AT PWNS
—_
sd
Power consumption (current)
—_ —_
ry
Power requirement
12. Dimensions
Weight
13. Package dimensions
14. Semiconductors
ACCESSORIES
Remote cable (A)
Remote cable (B}
AC power cable
Grounding wire .........05 eee ee
Instruction manual
All amateur bands from 1.8 — 29.7 MHz
50 ohms unbalanced
20-150 ohms unbalanced
0.8 dB or less
100W (200W PEP)
1.2:1 or less
3W
Within 15 seconds
+
10%
at
100W
(Meter
Switch
200W
Position)
+
10%
at
10W
(Meter
Switch
20W
Position)
15W
AC
13.8V DC 600 mA
120V, 220V, or 240V AC selectable
13.8V (12-16) DC
W174 (174) x H96 (107) x D257 (289) mm
(.) shows projections included.
4.2 kg (9.24 Ib.)
W385 x H167 x D264 mm
Capacitance: 0.017 m?
ICs 13
FETs 2
Transistors 31
Diodes 77
OODOOO®D
Specifications may be subject to change without notice for technical improvement.
KENWOOD CORPORATION
Shionogi Shibuya Building. 17-5. 2-chome Shibuya. Shibuya-ku. Tokyo 150 Japan
KENWOOD U.S.A. CORPORATION
PO,
BOX
22745,
2201
East
Dominguez
St.,
Long
Beach.
CA
90801-5745
USA.
KENWOOD
ELECTRONICS
DEUTSCHLAND
GMBH
Rembrucker Str 15, 6056 Heusenstamm. West Germany
KENWOOD ELECTRONICS BENELUX NV.
Mechelsesteenweg 418 B-1930 Zaventem. Belgium
KENWOOD
ELECTRONICS
AUSTRALIA
PTY.
LTD.
(INCORPORATED
IN
NSW)
4E,
Woodcock
Place,
Lane
Cove.
N.SW.
2066
Australia
© 75810 PRINTED IN JAPAN B50-4066-20 (G)

Kenwood AT-250 Specifications

Frequency and Impedance

frequency range	1.8 — 29.7 MHz
input impedance	50 ohms unbalanced
output impedance	20-150 ohms unbalanced

Power

pass through power	100W (200W PEP)
power consumption	15W AC
power requirement	120V, 220V, or 240V AC selectable

Dimensions and Weight

dimensions	W174 (174) x H96 (107) x D257 (289) mm
package dimensions	W385 x H167 x D264 mm
weight	4.2 kg (9.24 Ib.)
