Connection/Installation
23English

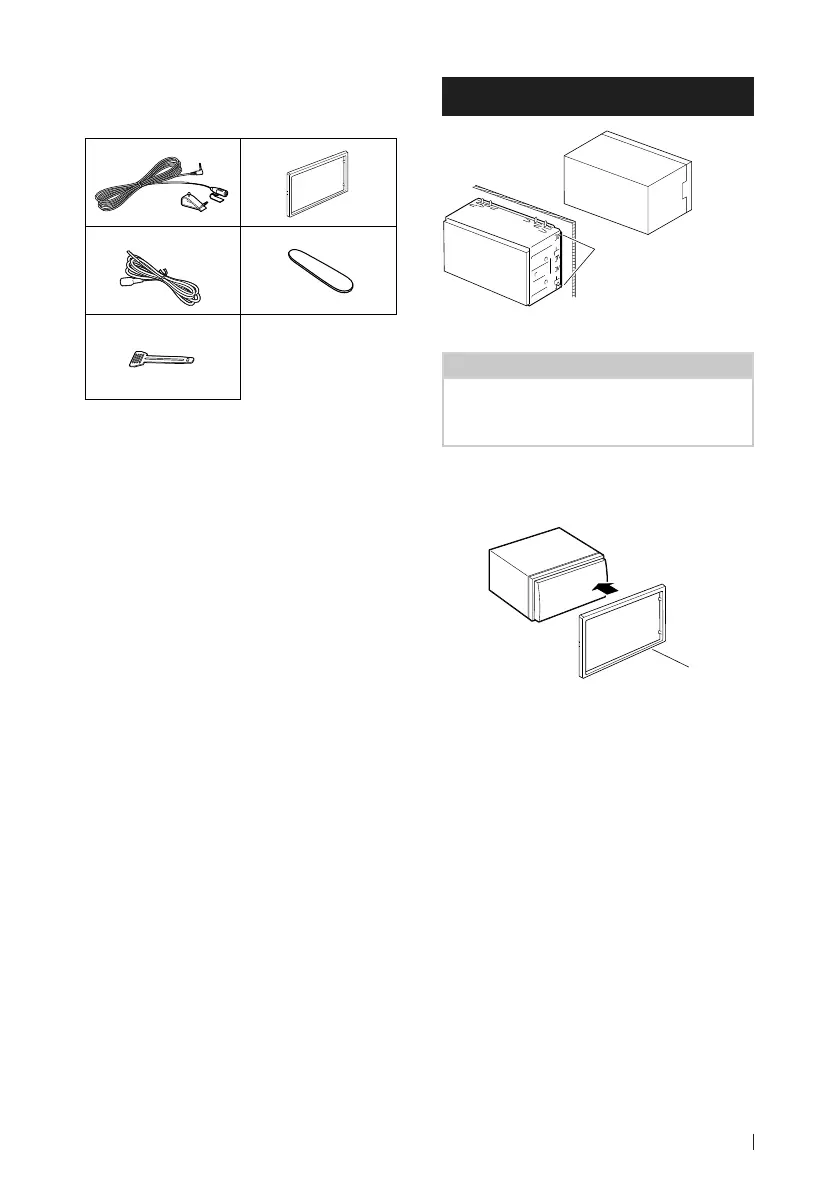

Ñ Supplied accessories for
installation
1
(3 m)
x1
2
x1
3
(2 m)
x1
4
x1
5
x2
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the ISO connector to the unit.
4) Install the unit in your car.
5) Reconnect the ¤ terminal of the battery.
6) Press the reset button.
Installing the unit
Bend the tabs of the
mounting sleeve with
a screwdriver or similar
utensil and attach it in
place.
NOTE
• Make sure that the unit is installed securely
in place. If the unit is unstable, it may
malfunction (eg, the sound may skip).
Ñ Trim plate
1) Attach accessory 2 to the unit.
2
