SPECIFICATIONS .........................................Top cover
CONTENTS / ACCESSORIES ....................................2
CIRCUIT DESCRIPTION.............................................3
PC BOARD ..................................................................5
SCHEMATIC DIAGRAM ..............................................7
EXPLODED VIEW .....................................................12
PARTS LIST...............................................................13
DPC-193/392/393/395/692/792/793/993
2

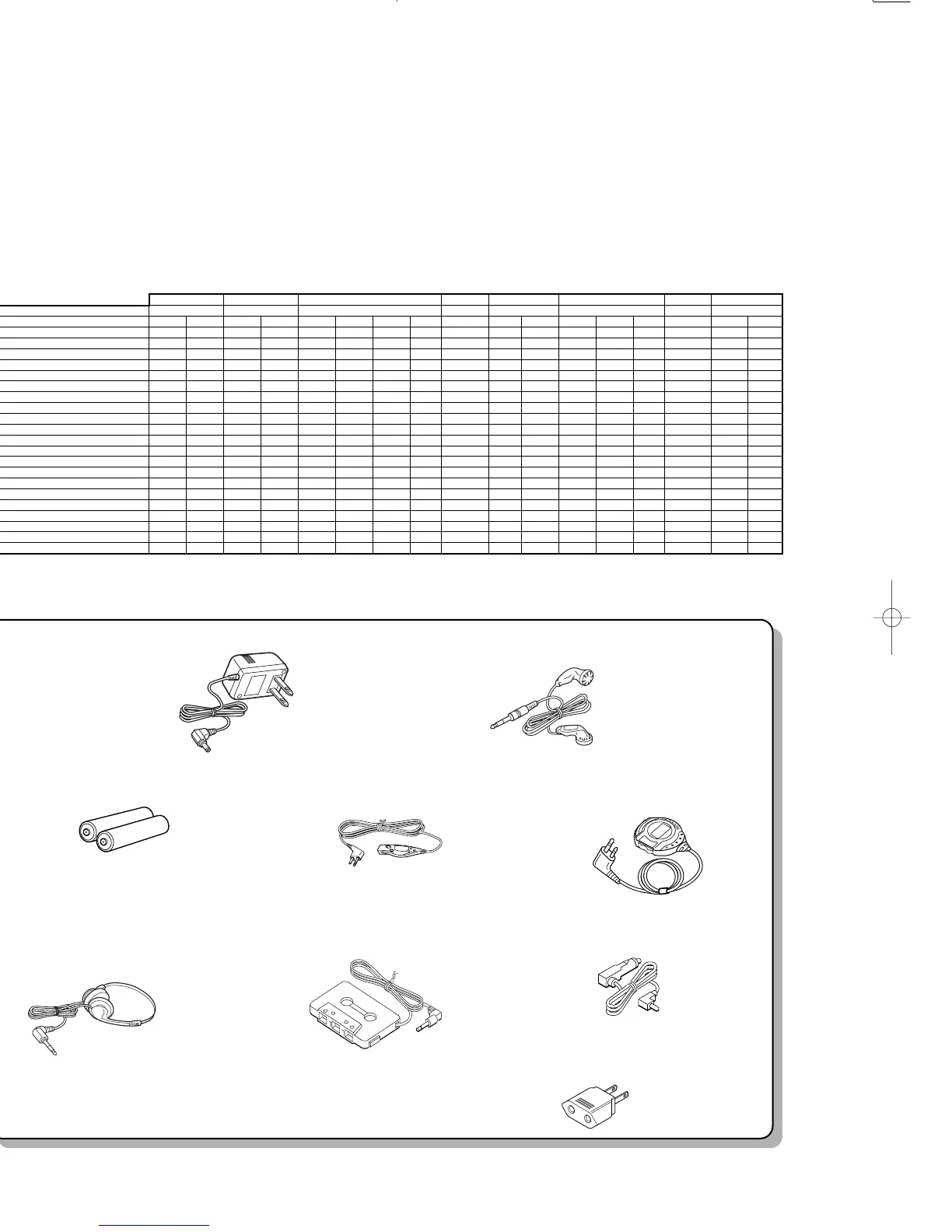

CONTENTS / ACCESSORIES
Contents
Model feature list
AC adapter ..................................................................(1)
(W08-0657-08) : K5K6K9P5P9P6
(W08-0658-08) : E2E7E3
(W08-0659-08) : T3
(W08-0660-08) : X6
(W08-0675-05) : M2M3M4S3
Innerphone..........................................(1)
(W01-0925-05) : E2E3M1M2M3T3X1X6
(W01-0923-05) : E7M4S3
AC plug ..........................................(1)
(E03-0115-05) : M1M2M3M4S3
Rechargeable battery (NB-88) .......(1)
(W09-1240-05) : E7M1M2M4M3S3T3X1X6
Car battery adapter........................(1)
(W01-0921-05) : E2M2K5K6P5P6X6
Car cassette adapter......................(1)
(W01-0922-05) : E2K5K6M2P5P6X6
Remote control...............................(1)
(A70-1190-05) : S3
Remote control...............................(1)
(A70-1111-08) :E7M4
Headphone ....................................(1)
(W01-0924-05) : K5P5
(W01-0943-05) : K6P6
(W01-0947-05) : K9P9
12 3 45 679
DPC-193 DPC-392 DPC-393 DPC-395 DPC-692 DPC-792 DPC-793 DPC-993
MXME MM2TE M KP KPX E KP
BASE BOOST SW
TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT TACT
DASC<OFF-ON(4M)>IC7 - - YES YES YES YES YES YES YES - - - - - - - -
DASC<ST-OFF-HI(16M)>IC6 -------- -YESYESYESYESYESYESYESYES
DIGITAL OPT OUT(J104) -------- - -----YES--
LINE OUT(J105) YES YES YES YES YES YES YES YES YES YES YES YES YES YES - YES YES
REMOCON JACK(J103) -----YES--YES-----YES--
CAR BATTERY ADP. - - YES YES - - - - - YES YES YES YES YES - - -
CAR CASETTE ADP. - - YES YES - - - - - YES YES YES YES YES - - -
RECHARGEABLE BATT. NB-88 NB-88 NB-88 - NB-88 NB-88 NB-88 - NB-88 - - - - NB-88 NB-88 - -
INNER HEADPHONE(SHORT) -----YES--YES-----YES--
INNER HEADPHONE(LONG) YES YES YES YES YES - YES YES - - - - - YES - - -
OPEN HEADPHONE(LOW) -------- -YESYES---- --
OPEN HEADPHONE(HI/LONG) -------- - --YESYES- - --
NOISE CANCEL HP(LONG) -------- - ----- -YESYES
REMOCON WIRED -----LCD--3KEY - - - - - 3 KEY - -
Accessories
DPC-193/383(k) COVER( 98.12.14 10:49 y[W 3
