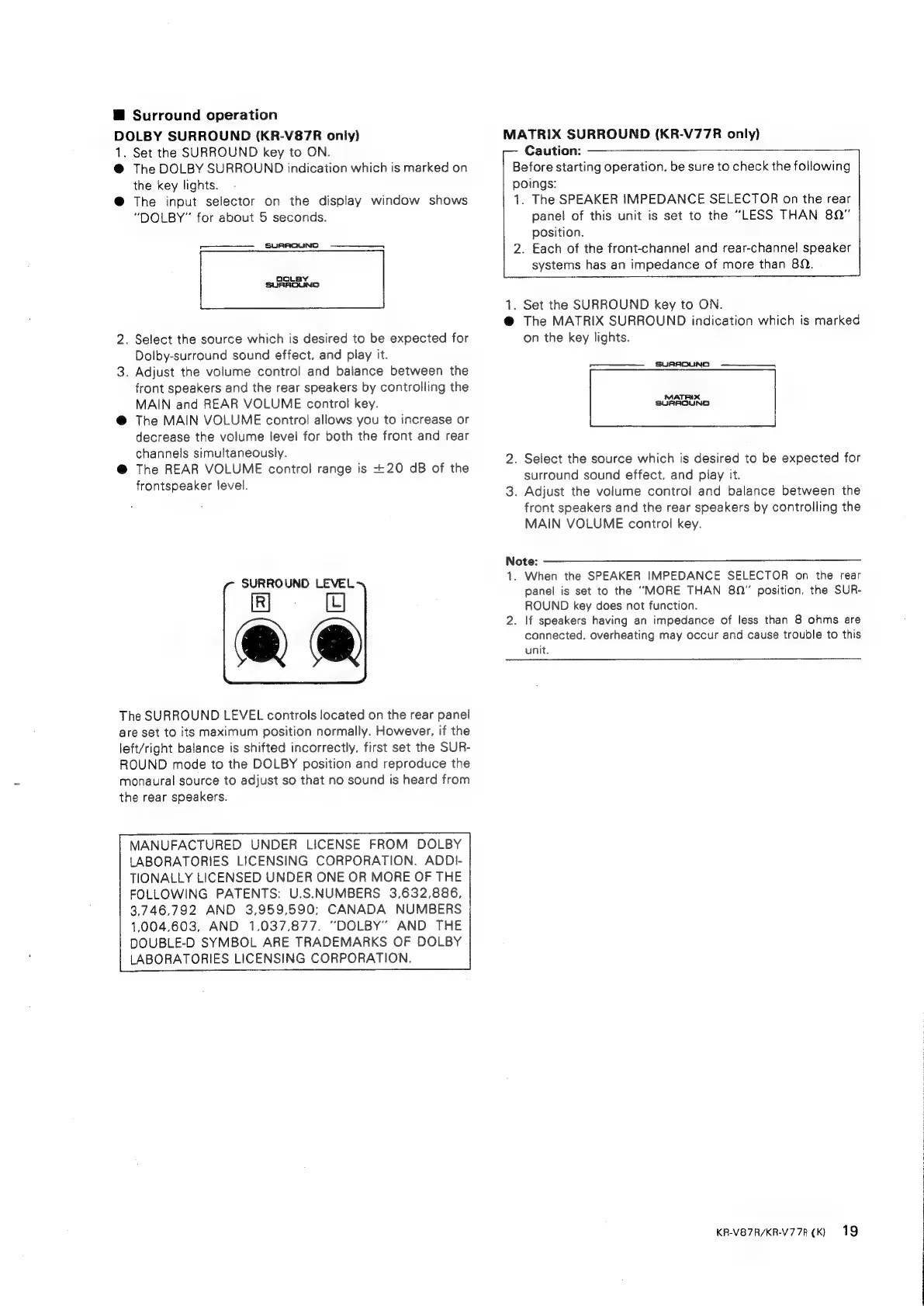

@ Surround operation
DOLBY SURROUND (KR-V87R only)
1. Set the SURROUND key to ON.
@ The DOLBY SURROUND indication which is marked on
the key lights.
@ The input selector on the display window shows
“DOLBY” for about 5 seconds.
———— __ SURROUND
COLBY
SURROUND
2. Select the source which is desired to be expected for
Dolby-surround sound effect, and play it.
3. Adjust the volume control and balance between the
front speakers and the rear speakers by controlling the
MAIN and REAR VOLUME control key.
@ The MAIN VOLUME control allows you to increase or
decrease the volume level for both the front and rear
channels simultaneously.
@ The REAR VOLUME control range is +20 dB of the
frontspeaker level.
SURROUND LEVEL
[R]
The SURROUND LEVEL controls located on the rear panel
are set to its maximum position normally. However, if the
left/right balance is shifted incorrectly, first set the SUR-
ROUND mode to the DOLBY position and reproduce the
monaural source to adjust so that no sound is heard from
the rear speakers.
MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES LICENSING CORPORATION. ADDI-
TIONALLY LICENSED UNDER ONE OR MORE OF THE
FOLLOWING PATENTS: U.S.NUMBERS 3,632,886,
3.746.792 AND 3,959,690; CANADA NUMBERS
1,004,603, AND 1,037,877. “DOLBY” AND THE
DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORPORATION.
MATRIX SURROUND (KR-V77R only)
Caution:
Before starting operation, be sure to check the following
poings:
1. The SPEAKER IMPEDANCE SELECTOR on the rear
panel of this unit is set to the “LESS THAN 80”
position.
2. Each of the front-channel and rear-channe! speaker
systems has an impedance of more than 80.
a"
. Set the SURROUND key to ON.
@ The MATRIX SURROUND indication which is marked
on the key lights.
m————_._ SURAOUND ————_——_,
MATRIX
SURROUND
2. Select the source which is desired to be expected for
surround sound effect, and play it.
3. Adjust the volume control and balance between the
front speakers and the rear speakers by controlling the
MAIN VOLUME control key.
Note: ——____
1. When the SPEAKER IMPEDANCE SELECTOR on the rear
panel is set to the “MORE THAN 89” position, the SUR-
ROUND key does not function.
2. If speakers having an impedance of less than 8 ohms are
connected, overheating may occur and cause trouble to this
unit.
KR-V87R/KR-V77A8 (K} 19
