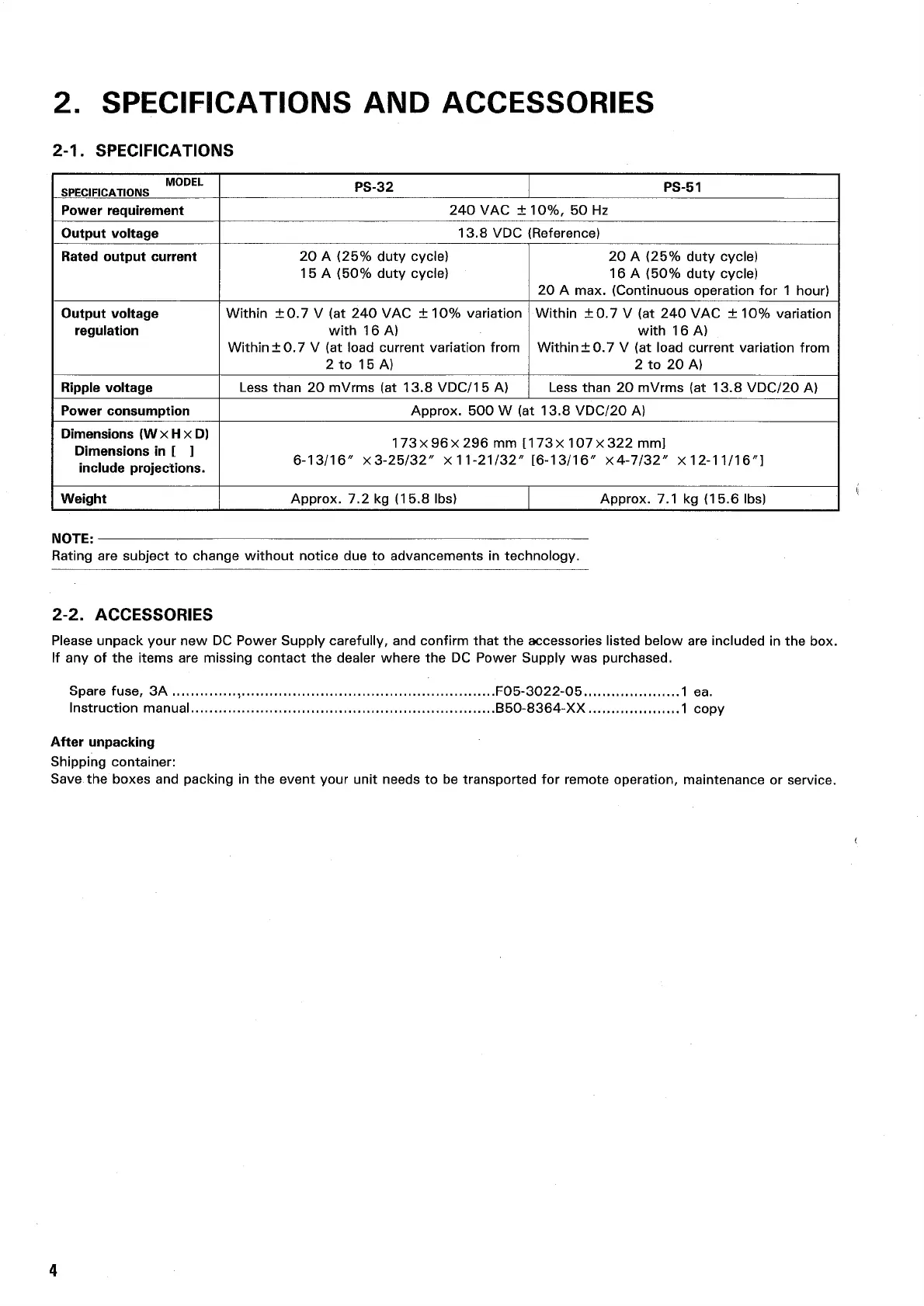

2. SPECIFICATIONS AND ACCESSORIES
2-1. SPECIFICATIONS
MODEL
SPECIFICATIONS
PS-32
PS-51
Power requirement
240 VAC ± 10%, 50 Hz
Output voltage 13.8 VDC (Reference)
Rated output current 20 A (25% duty cycle)
15 A (50% duty cycle)
20 A (25% duty cycle)
16 A (50% duty cycle)
20 A max. (Continuous operation for 1 hour)
Output voltage
regulation
Within ±0.7 V (at 240 VAC ± 10% variation
with 16 A)
Within ±0.7 V (at load current variation from
2 to 1 5 A)
Within ±0.7 V (at 240 VAC ± 10% variation
with 16 A)
Within ±0.7 V (at load current variation from
2 to 20 A)
Ripple voltage Less than 20 mVrms (at 13.8 VDC/15 A) Less than 20 mVrms (at 13.8 VDC/20 A)
Power consumption Approx. 500 W (at 13.8 VDC/20 A)
Dimensions (W x H x D)
Dimensions in [ ]
include projections.
173x96x296 mm [173x 107x322 mm]
6-13/16" X3-25/32" x 11-21/32" [6-13/16" X4-7/32" X 12-11/16"]
Weight Approx. 7.2 kg (15.8 lbs) Approx. 7.1 kg (1 5.6 lbs)
NOTE:
Rating are subject to change without notice due to advancements in technology.
2-2. ACCESSORIES
Please unpack your new DC Power Supply carefully, and confirm that the accessories listed below are included in the box.
If any of the items are missing contact the dealer where the DC Power Supply was purchased.
Spare fuse, 3A , F05-3022-05 1 ea.
Instruction manual B50-8364-XX 1 copy
After unpacking
Shipping container:
Save the boxes and packing in the event your unit needs to be transported for remote operation, maintenance or service.
4
