Kenwood TH-22A Service Manual

TH-22A/AT/E

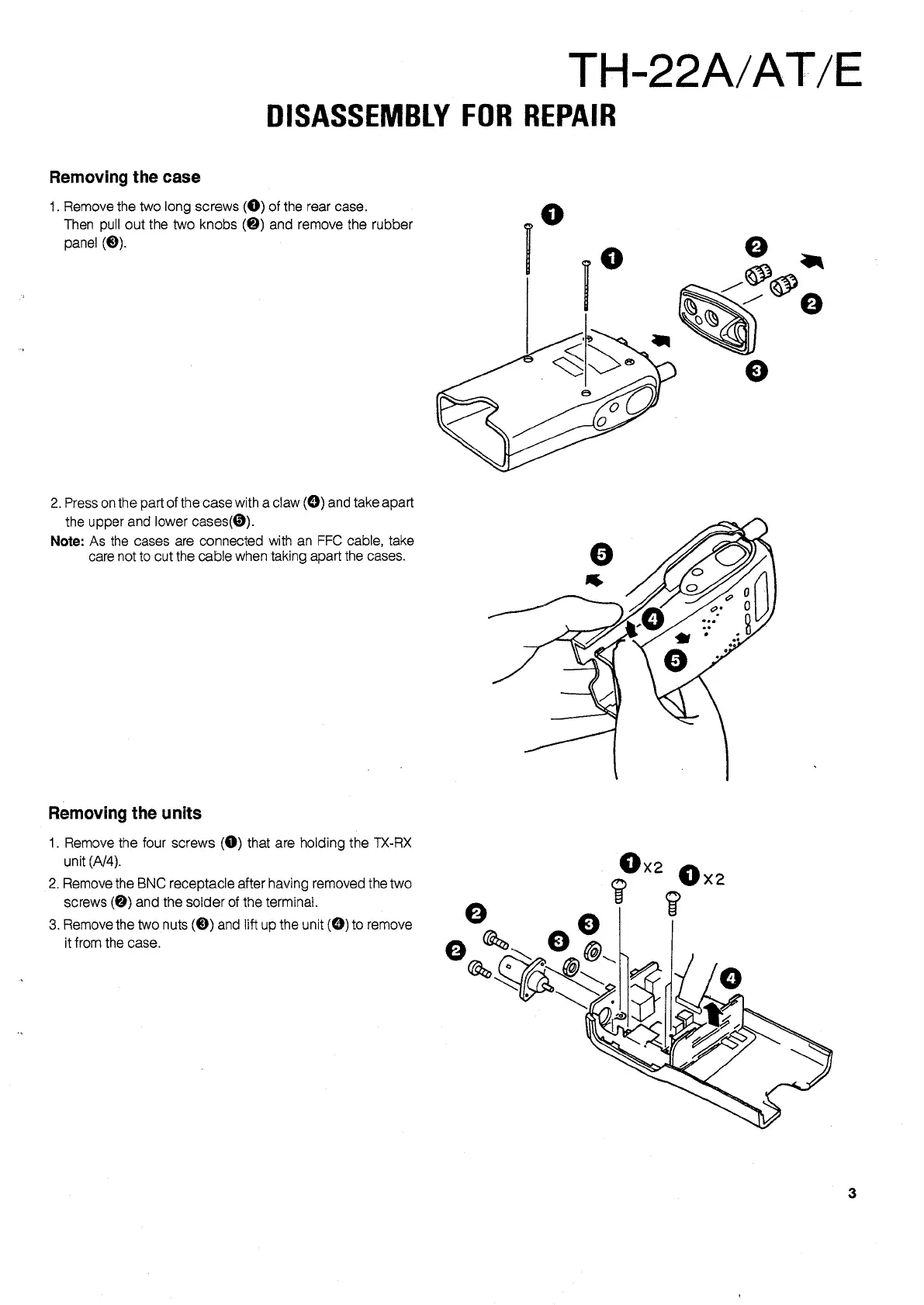

DISASSEMBLY FOR REPAIR
Removing the case
1. Remove the two long screws (@) of the rear case.
Then pull out the two knobs (@) and remove the rubber
panel (®).
2. Press on the part of the case with a claw (@) and take apart
the upper and lower cases(@).
Note: As the cases are connected with an FFC cable, take
care not to cut the cable when taking apart the cases.
Removing the units
1. Remove the four screws (@) that are holding the TX-RX
unit
(A/4).
1)
X2
2.
Remove
the
BNC
receptacle
after
having
removed
the
two
g
1)
X2
screws
(@)
and
the
solder
of
the
terminal.
r2)
3.
Remove
the
two
nuts
(@)
and
lift
up
the
unit
(@)
to
remove
it from the case. e @ ©

Kenwood TH-22A Specifications

General

Brand	Kenwood
Model	TH-22A
Category	Transceiver
Language	English
