TH-K4AT/K4E
55
BPF
Q10
Q11
Q24
Q12
Q9
BPF
Q16Q17
0.28Vrms
IC3
ANT
-21.00dBm
FILTER
14.00dBm5.67dBm
-36.33dBm
ANT
SP
AF(1kHz)
FM IC
-20.00dBm
-53.00dBm
7.33dBm
8.23mVrms
0.83Vrms 26.33dBm
-60.50dBm
IC6
ANT
27.50dBm
RF(435.05MHz)
-40.33dBm
50
AF(1kHz)
AMP
14.17dBm
0.58Vrms
IF(38.85MHz)
0.66Vrms
9.70Vrms
MIC
ANT
-42.33dBm
vco
RF(435.05MHz)
MIC AMP
11.50dBm
FILTER
-41.17dBm
vco
IC16
-4.00dBm

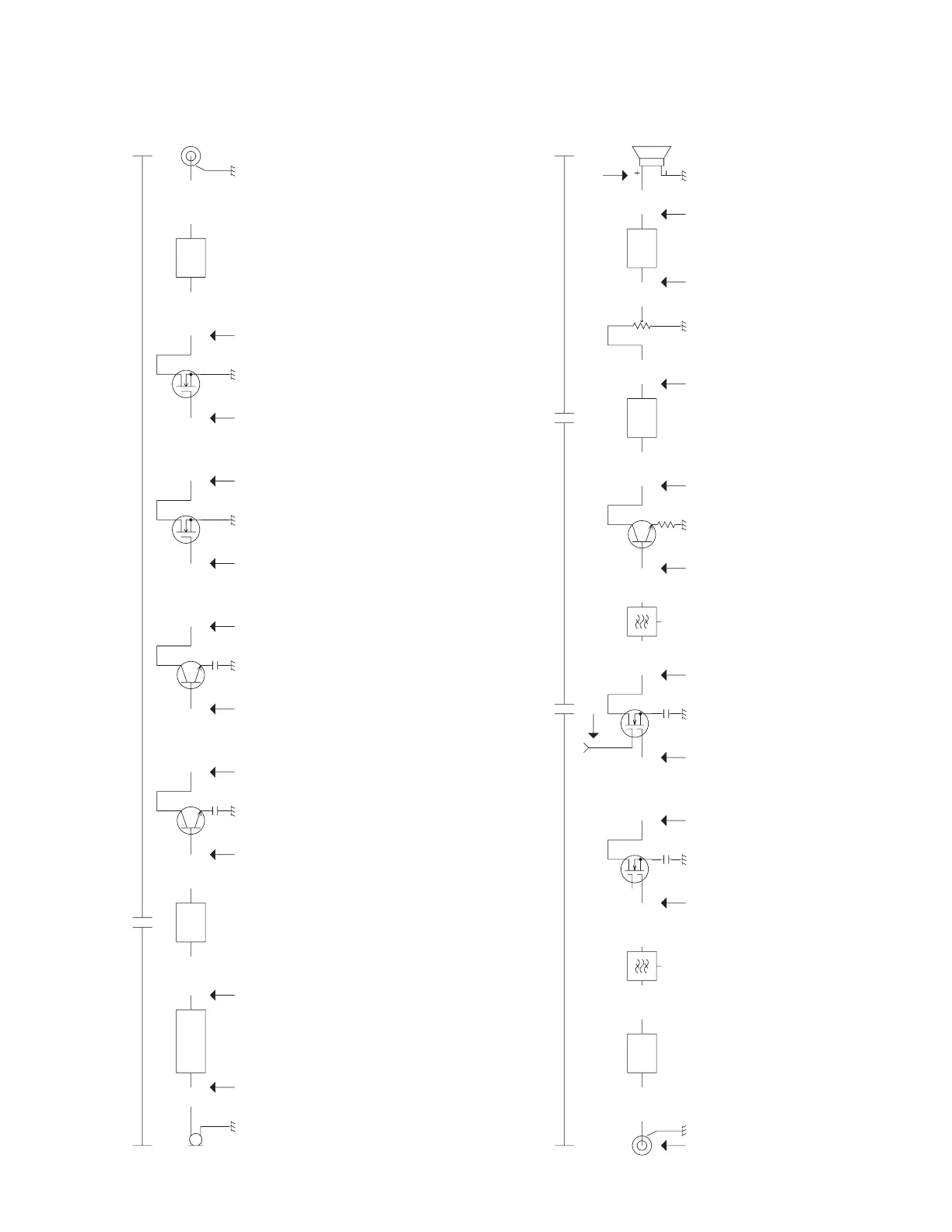

LEVEL DIAGRAM
All voltage levels must be measured at High power transmission.
The RF and IF sections are measured by using a spectrum analyzer.
After setting the standard (1 kHz, 3 kHz Dev.) deviation, each voltage
of the AF section is measured by using an AF VTVM or osciloscope.
The level for each point is measured without removing parts or cutting
the pattern.
All voltage levels must be measured after setting the AF output volt-
age at 0.58V rms.
The RF and IF sections are measured by using a spectrum analyzer.
Each voltage of the AF section is measured by using an AF VTVM or
osciloscope.
The level for each point is measured without removing parts or cutting
the pattern.
Transmitter Section
Receiver Section
