5.2.5 Draft shield installation – optional
Remove the weighing plate and loosen the screws to remove the bracket. Use a
screwdriver to loosen both screws to the left and right of the bracket guide and re-
move.
Now place the draft shield to fit on the housing and and secure through the opened
sliding doors using both screws.
Screw the bracket on tightly according to the drawing and subsequently attach the
weighing plate.

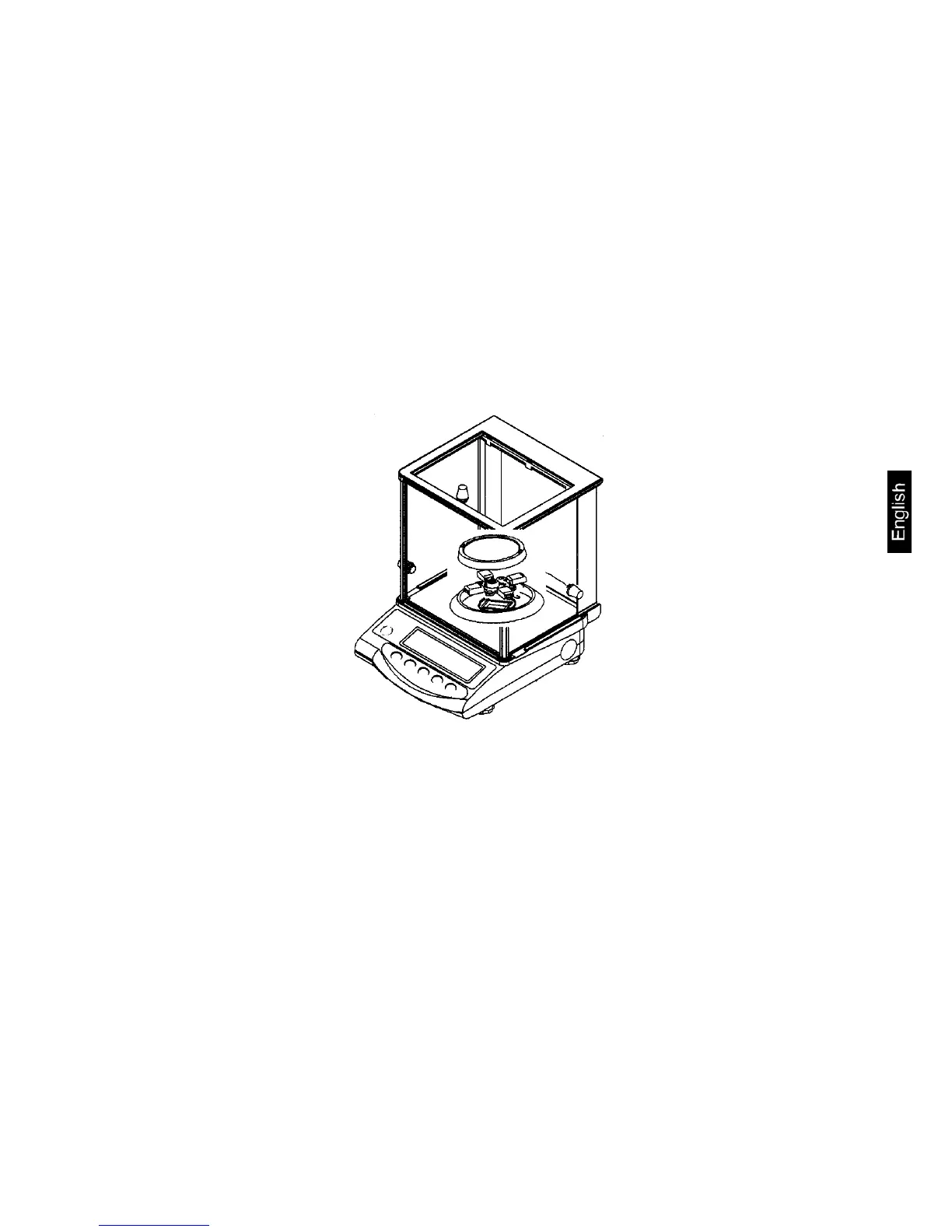

5.2.6 Draft shield with glass sliding doors
(only model KERN EW 120-4NM standard)
