Kidde P4010ACLEDSCA-2 User Manual

9
Permanently Disable
Alarm / Discharge
Battery
AC Connector
PRODUCT FEATURES AND SPECIFICATIONS:
Test / Hush
Button (dome)
Red Alarm
Light
Green Operate
Light
Alarm Sounder
CEILING
90° 90°
0°
45° 45°
SOURCE
LIGHT
CEILING
90° 90°
0°
45° 45°
SOURCE
LIGHT
25 90
25 85
30 80
30 75
35 70
35 65
40 60
45 55
55 50
75 30-45
90 5-25
100 0
(LIGHT INTENSITY) (IN DEGREES)
PERCENT ANGLE
25 90
25 85
30 80
30 75
35 70
35 65
40 60
45 55
55 50
75 30-45
90 5-25
100 0
(LIGHT INTENSITY) (IN DEGREES)
PERCENT ANGLE
90° 60 55 50 45 40 35 30
0
ZERO AXIS
WALL
FLOOR
5
10
15
20
25
Front
Back

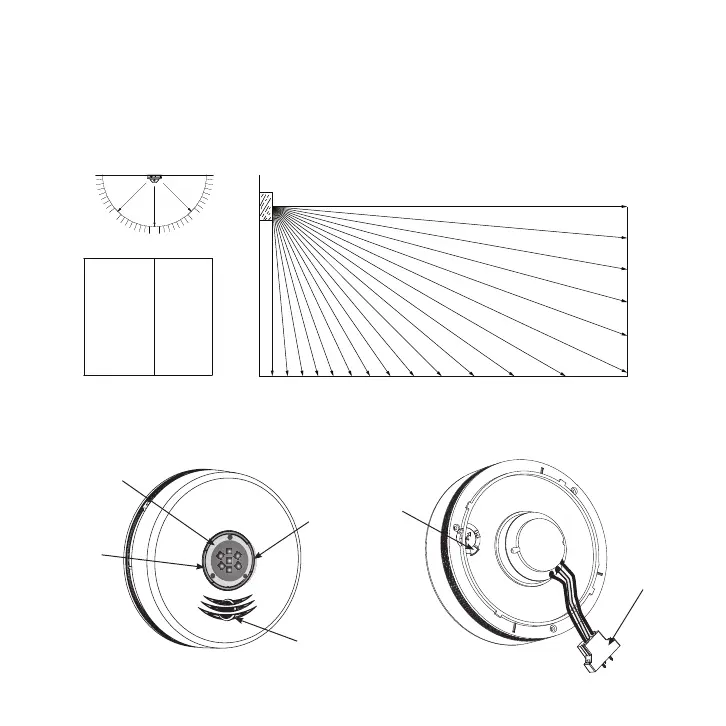

The following diagrams show that the light intensity gradually decreases as the viewing angle is
increased. Use this information to determine the best location for the strobe light.

Kidde P4010ACLEDSCA-2 Specifications

General

Type	Smoke Alarm
Sensor Type	Photoelectric
Alarm Sound	85 dB at 10 feet
LED Indicator	Yes
Hush Feature	Yes
Test Button	Yes
Warranty	10-year limited warranty
Power Source	Hardwired
Battery Backup	Yes
Interconnectivity	Up to 24 Kidde devices
Light	LED
Operating Temperature	40°F (4°C) to 100°F (38°C)
Operating Humidity	10% to 95% non-condensing
Certifications	UL 217
