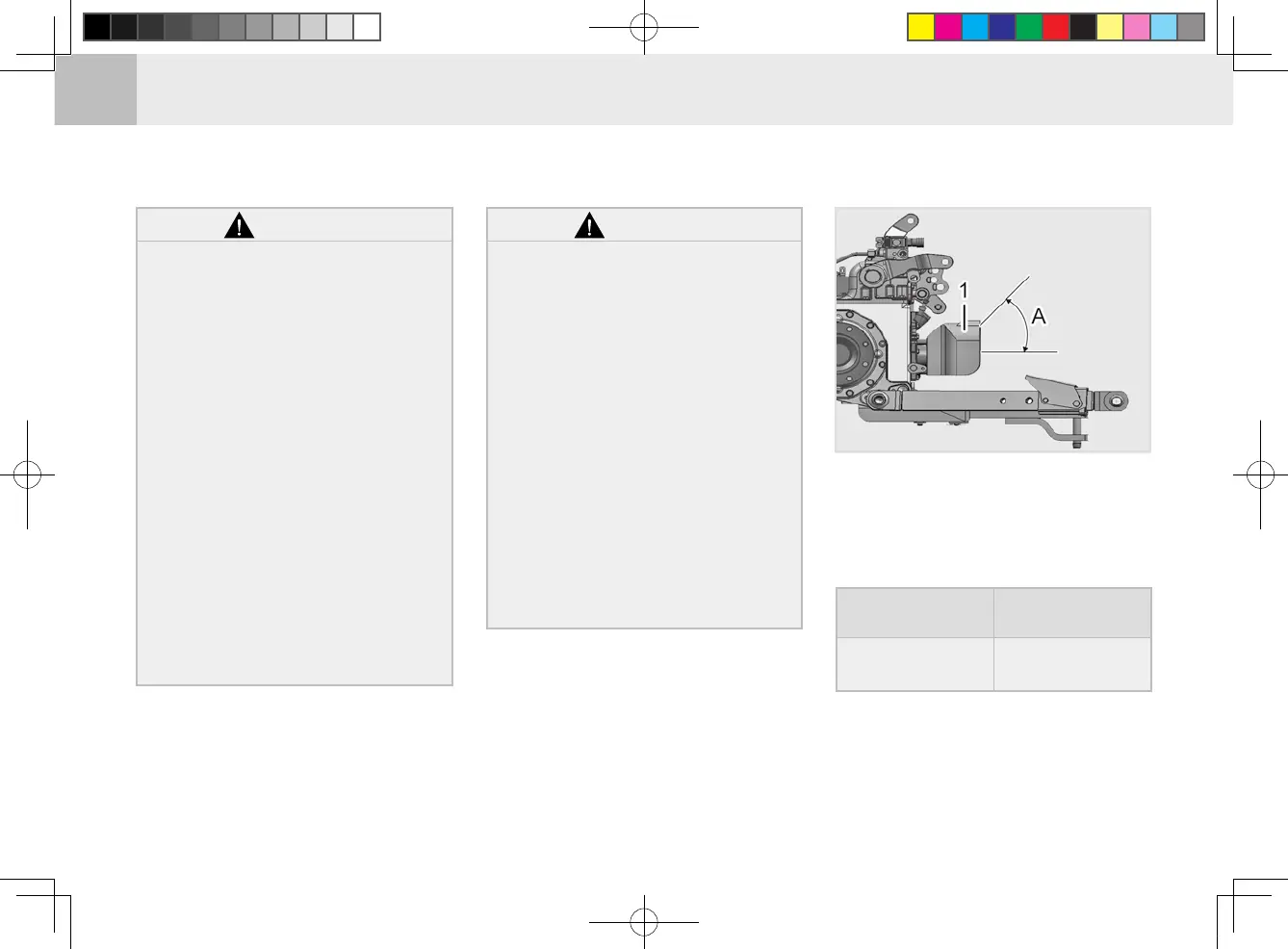

Ref to the chart below as to installing
of an universal joint.
(1) PTO Cover
(A) Allowable angle of universal joint : 50˚
The type of PTO
shaft
Allowable angle
of universal joint
SAE 1-3 / 8
"
6
splines
50 degree
Before starting up any PTO-
driven implement hitched to
the three-point linkage, lift the
implement to its full height
and check that at least 1/4 of
the total length of the tele-
scopic section of the drive
shaft is engaged.
Before starting up any PTO-
driven implement hitched to
the three-point linkage, lift the
implement to its full height
and check that at least 1/4 of
the total length of the tele-
scopic section of the drive
shaft is engaged.
•
•
WARNING
Make sure that the PTO safety
cover is in its position before
driving the PTO shaft.
The tractor PTO and PTO shaft
should not be interfered by
any surrounding parts.
Never go close to the rotating
PTO or tractor PTO shaft. A
severe accident can happen.
Before driving an implement
through the PTO, always make
sure that all bystanders are
well away from the tractor.
When using the PTO drive with
a stationary tractor, always
make sure that the gears are
in neutral and that the parking
brake is applied.
•
•
•
•
•
WARNING
