20 NX4510/NX5010/NX5510/NX6010
1 2 3 4 8 29
5 7
6
30
23 22 14 13 1219 18 17 16 15
10
9
28
11
26
25
24 21
27
20
31
TE1O499B
[NX4510C/CH, NX4510CH-EU/AU, NX5010C/CH, NX5010CH-EU/AU, NX5510C/CH, NX5510C/CH-EU/AU,
NX6010C/CH, NX6010C-EU/AU]

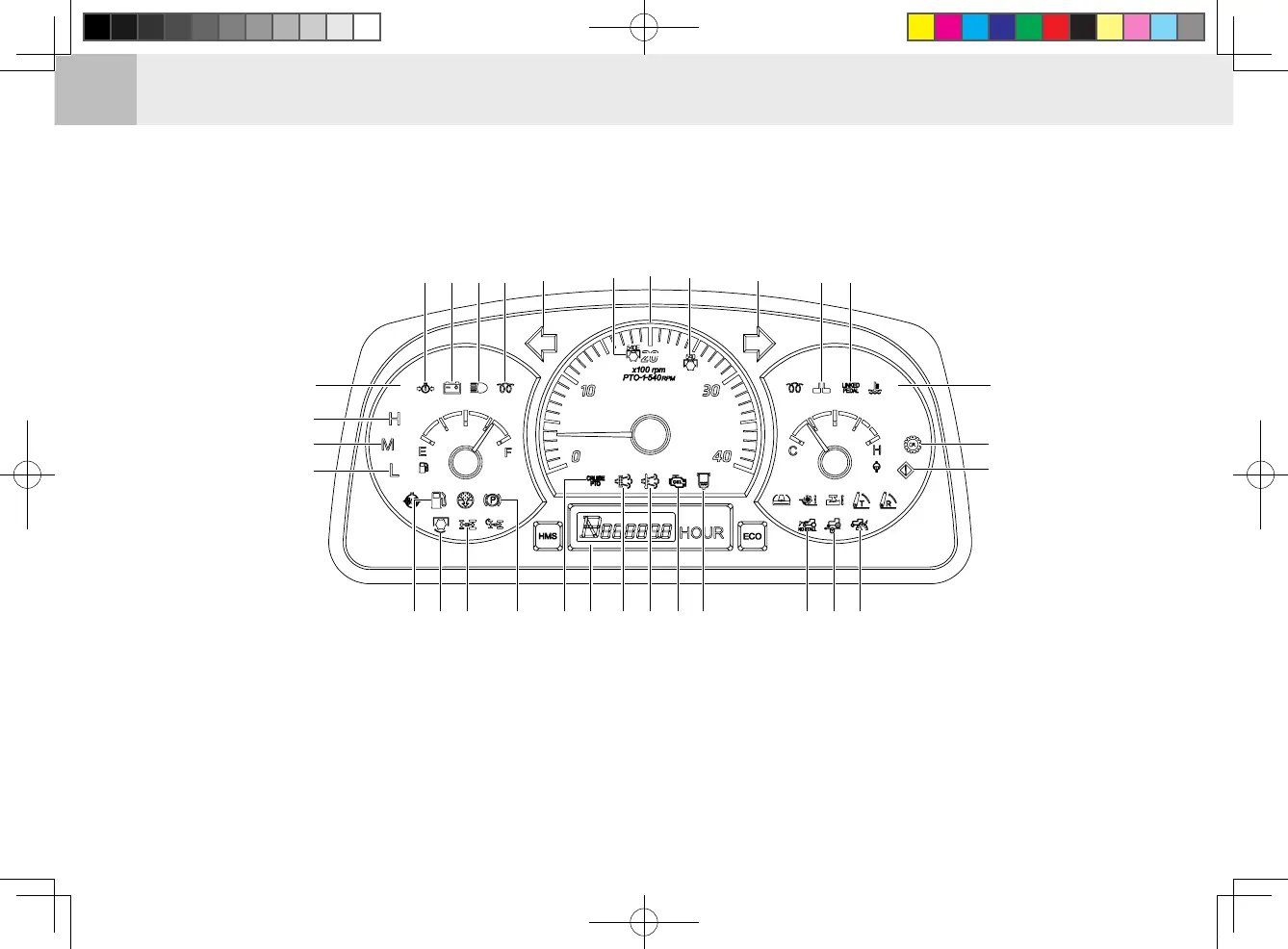

(1) Engine Oil Pressure Warming Lamp
(2) Battery Charge Warming Lamp
(3) High Beam Indicator
(4) Glow Plug Indicator
(5) Turn Signal Light (LH)
(6) Tachometer
(7) Turn Signal Light (RH)
(8) Brake (One Side) Lamp
(9) Coolant Temperature Gauge
(10) Calibration Lamp
(11) Communication Error
(12) Speed Limit Switch
(13) HST Cruise
(14) No-Stall Switch
(15) Water Sensor
(16) Engine Check Lamp
(17) Regeneration Underway Lamp
(18) Regeneration Warning Lamp
(19) Hour meter / Error Code
(20) Cruise PTO
(21) Parking Brake Indicator
(22) 4WD Engaged Indicator
(23) PTO Indicator
(24) Fuel Level Warning Lamp
(25) Low Speed Indicator
(26) Mid Speed Indicator
(27) High Speed Indicator
(28) Fuel Gauge
(29) Synchronized Turning Lever Lamp
(30) PTO(1800) Indicator (if equipped)
(31) PTO(2500) Indicator
